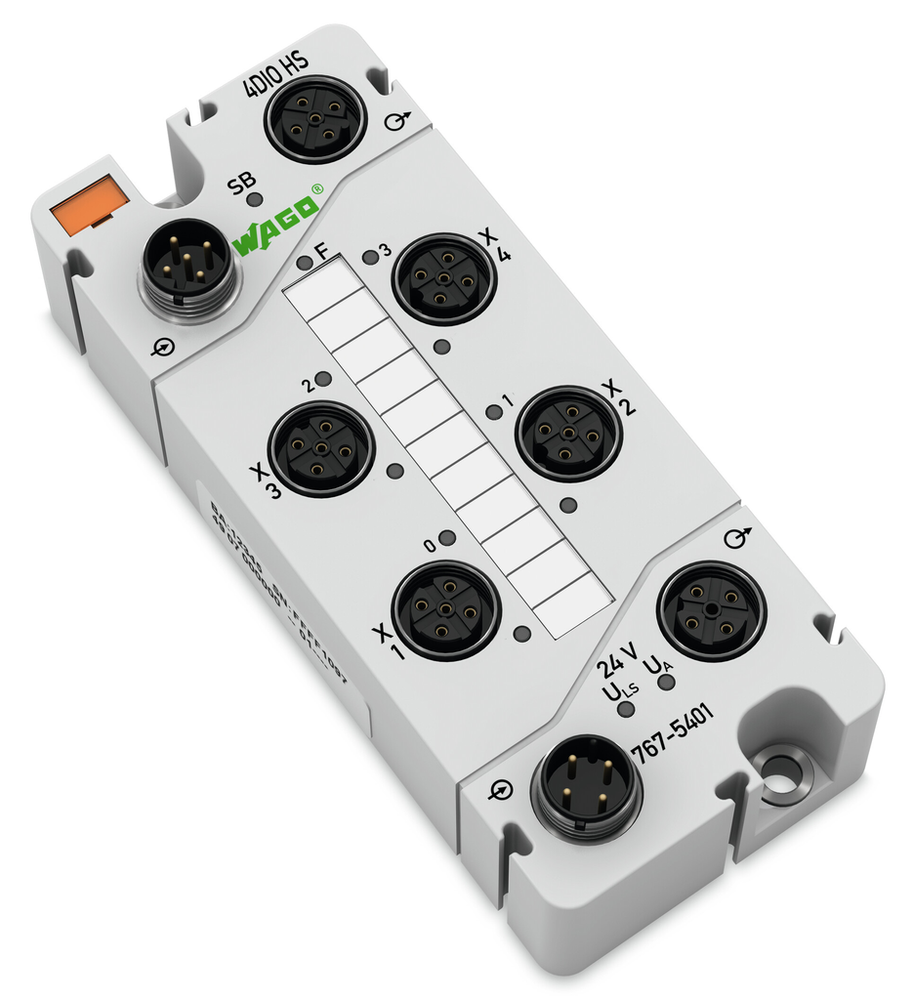

WAGO 767-5401

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389091890
• GTIN
  • 4050821518044
• Packaging type
  • Box

Connection Data

• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 4 x M12 socket; A-coded; 5-pole; shielded
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Operating altitude
  • −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 0.1 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 0.5 ppm
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Conformity marking
  • CE
• Encapsulation
  • Polyurethane (PUR), halogen/silicon-free
• Fire load
  • 0.010 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 260.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 50 mm / 1.969 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 4 x (2-wire, 3-wire)
• Connection of 2-wire BEROs
  • Admissible closed current: 1.5 mA (max.)
• Counter type
  • Event, gateway time, pulse duration
• Counting/switching frequency
  • 0 Hz … 1 kHz
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 30 mA
• Current consumption (system and sensor)
  • 40 mA
• Edge steepness
  • TON/OFF: typ. < 0.2 µs
• Front-end cycle time 90% (hardware)
  • 0.5 µs (max.)
• Front-end cycle time (hardware)
  • < 3 µs
• Front-end jitter/skew (input)
  • < 2 µs
• Front-end jitter/skew (output)
  • < 0.2 µs
• Indicators
  • LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 3) yellow/red: Status/diagnostics DI/DO 1 … DI/DO 4; Non-retentive displays
• Input characteristic
  • High-side switching || Type 1, per IEC 61131-2
• Input current per channel for signal (0) max.
  • 2 mA
• Input current per channel for signal (1) max.
  • 3.2 mA
• Input current per channel for signal (1) min.
  • 2.5 mA
• Input current per channel for signal (1) typ.
  • 2.9 mA
• Input filter (digital)
  • 0.01 ms || 0.025 ms || 0.05 ms || 0.1 ms || 0.2 ms || 1 ms || 3 ms
• Isolation
  • 500 V supply/system bus
• Leakage current in OFF state
  • 100 µA
• Load type
  • Resistive, inductive, lamp load
• Number of configurable digital inputs/outputs
  • 4
• Number of counters
  • 1
• Number of digital inputs
  • 4
• Number of digital outputs
  • 4
• Output characteristic
  • Push/pull
• Output current
  • Short-circuit/overload-protected
• Output current (module)
  • 0.8 A
• Output current per channel
  • 0.2 A
• Output operation
  • Non-retentive
• Parameterizable functions
  • I/O diagnostics (per module): Short circuit (sensor/actuator supply); Undervoltage (ULS + UA) || I/O diagnostics (per channel): Overtemperature || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics || Operating mode (per module): DO module/DI module/DIO module/DIO module + 1 counter || Input filter (per channel): 10/ 25/ 50/ 100/ 200 µs/ 1/ 3 ms/ Filter "Off" || Inversion (per channel): On/Off || Substitute value (per channel): 0/1 || Substitute value strategy (per channel): Switch substitute value/Hold last value || Manual mode (per channel): On/Off || Manual mode value (by channel): 0/1
• Process data width
  • Depends on operating mode
• Protection
  • Reverse voltage protection for ULS + Uo; Short circuit protection for sensor/actuator supply
• S-bus (system bus) disruption
  • 0 V status
• Sensor connection
  • 4 x (2-wire, 3-wire)
• Signal type
  • Voltage
• Signal type (voltage)
  • 24 VDC
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA)
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• System and sensor power consumption (note)
  • Logic component only
• Total number of channels (module)
  • 4
• Voltage drop against UA
  • 2
• Voltage range for signal (0)
  • −3 … +5 VDC
• Voltage range for signal (1)
  • 15 … 30 VDC
