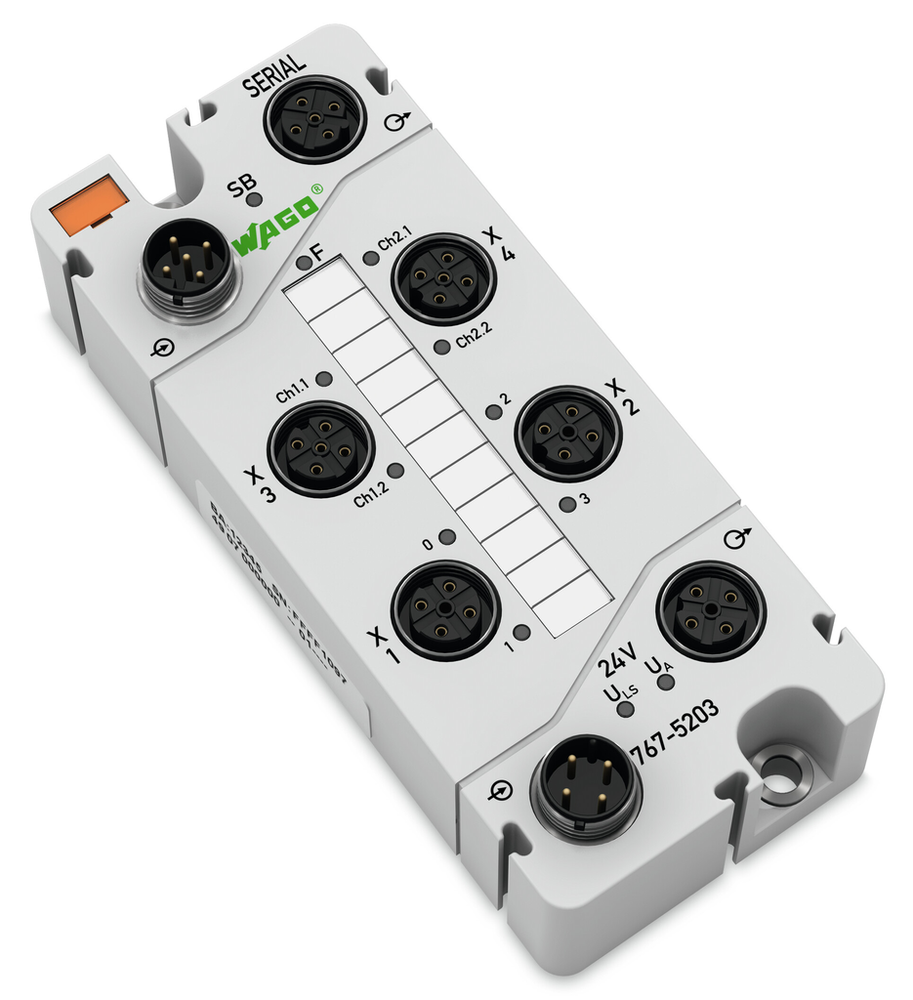

WAGO 767-5203

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4050821346098
• Packaging type
  • Box

Connection Data

• Connection requirement (permissible cable length)
  • 15 m
• Connection requirement (permissible cable length) (2)
  • 1000 m
• Connection requirement (permissible cable length) (3)
  • 30 m
• Connection requirement (permissible cable type)
  • RS-232
• Connection requirement (permissible cable type) (2)
  • RS-422/-485
• Connection requirement (permissible cable type) (3)
  • Digital inputs: unshielded
• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 2 x M12 socket; A-coded; 5-pole; shielded; 2 x M12 socket; A-coded; 5-pole; shielded
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Color
  • Light gray
• Conformity marking
  • CE
• Fire load
  • 0.010 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 259.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 50 mm / 1.969 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 4 x (2-wire, 3-wire)
• Baud rate
  • 300 Bd … 115.2 kBd
• Buffer
  • 4 KB (input); 4 KB (output)
• Connection of 2-wire BEROs
  • Admissible closed current: 1.5 mA (max.)
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 25 mA
• Current consumption (system and sensor)
  • 75 mA
• Drop-out time from “1” to “0”
  • Typ. 45 µs (resistive load)
• Indicators
  • LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1.1, Ch2.1) yellow/red: Transmission status; LED (Ch1.2, Ch2.2) yellow/red: Reception status; LED (0 … 3) yellow/red: Status DI/DO 1 … DI/DO 3; Non-retentive displays
• Input characteristic
  • High-side switching || Type 2, per IEC 61131-2
• Input current per channel for signal (0) max.
  • 2.5 mA
• Input current per channel for signal (1) max.
  • 7.5 mA
• Input current per channel for signal (1) min.
  • 6.4 mA
• Input current per channel for signal (1) typ.
  • 7.3 mA
• Input filter
  • Hardware: ≤ 110 µs; Software: parameterizable
• Input voltage (note)
  • 24 VDC (-3 VDC < UIN < +30 VDC); Power from UA strongly recommended, recovery for voltages > UA
• Isolation
  • 500 V supply/system bus
• Leakage current in OFF state
  • 5 µA
• Load type of switching frequency
  • Inductive load
• Number of configurable digital inputs/outputs
  • 4
• Number of data bits
  • 7/8, adjustable
• Number of digital inputs
  • 4
• Number of digital outputs
  • 4
• Number of stop bits
  • 1/2, adjustable
• Output characteristic
  • High-side switching
• Output current (module)
  • 2 A
• Output current per channel
  • 0.5 A
• Output operation
  • Non-retentive
• Output protection
  • Short circuit/overload protection (thermal shutdown)
• Output resistance
  • 0.4 Ω
• Output voltage
  • ≤ UA
• Parameterizable functions
  • I/O diagnostics (per module): Short circuit/overload (sensor/actuator supply); Undervoltage (ULS + UA) || I/O diagnostics (per channel): Overtemperature || Operating mode (per channel): RS-232; RS-422/-485 || Baud rate (per channel): 300 … 115,700 Baud || Data bits (per channel): 7/8 || Flow control: None/Xon+Xoff/RTS+CTS
• Parity
  • None/Odd/Even
• Process data width
  • Interface: 10 bytes (data In/Out + status); DIO: 1-byte data In/Out + 1-byte status
• Protection
  • Reverse voltage protection for ULS + Uo; Short circuit protection for sensor/actuator supply
• Resistance to recovery
  • ≤ 1 A (error: 1 channel)
• Rise time from “0” to “1”
  • Typ. 60 µs (resistive load)
• S-bus (system bus) disruption
  • 0 V status
• Sensor connection
  • 4 x (2-wire, 3-wire)
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA)
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Switching frequency (max.)
  • 20 Hz; Inductive load
• Switching frequency (max.) (2)
  • 500 Hz; Resistive load
• Switching frequency (max.) (3)
  • 500 Hz; Lamp load
• Transmission channels
  • 1 RxD / 1 TxD (full/half duplex)
• Voltage drop against UA
  • 0.2
• Voltage range for signal (0)
  • −3 … +5 VDC
• Voltage range for signal (1)
  • 11 VDC … UA
