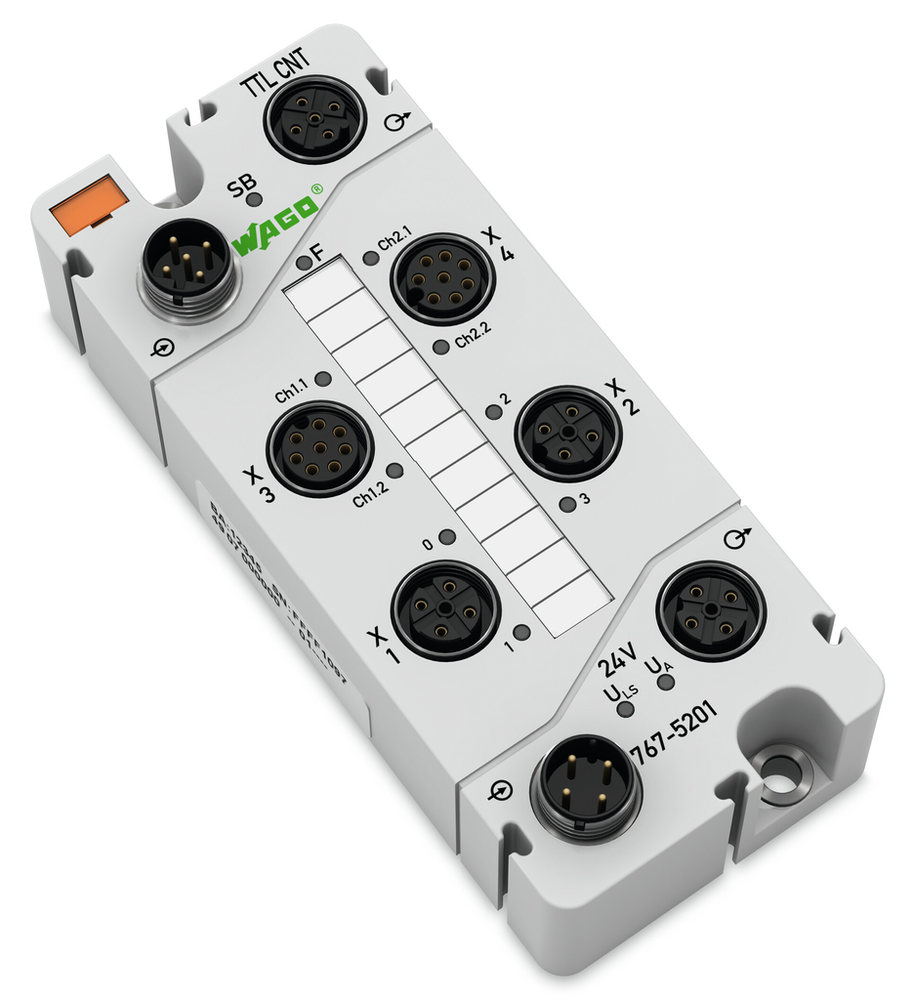

WAGO 767-5201

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389091890
• GTIN
  • 4050821346074
• Packaging type
  • Box

Connection Data

• Connection requirement (permissible cable length)
  • 30 m
• Connection requirement (permissible cable type)
  • Digital inputs: shielded
• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 2 x M12 socket; A-coded; 8-pole; shielded; 2 x M12 socket; A-coded; 5-pole; shielded
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Color
  • Light gray
• Conformity marking
  • CE
• Fire load
  • 0.010 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 259.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 50 mm / 1.969 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 4 x (2-wire, 3-wire)
• Connection of 2-wire BEROs
  • Admissible closed current: 1.5 mA (max.)
• Conversion method
  • Binary/Gray
• Counter depth
  • 32 bits
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 25 mA
• Current consumption (system and sensor)
  • 50 mA
• Duty cycle
  • 0 … 100 %
• Encoder connection (incremental encoder)
  • A, A\, B, B\, C, C\
• Encoder connection (SSI encoder)
  • D+, D-, CL+, CL-
• Encoder supply
  • 5 V/24 V, 300 mA (max.)
• Front-end cycle time (hardware)
  • 3 µs (max.)
• Indicators
  • LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1, Ch2) green/yellow/red: Encoder status; LED (0 … 3) yellow/red: Status DI/DO 1 … DI/DO 3; Non-retentive displays
• Input characteristic
  • High-side switching || Type 3, per IEC 61131-2
• Input current per channel for signal (0) max.
  • 2 mA
• Input current per channel for signal (1) max.
  • 3.2 mA
• Input current per channel for signal (1) min.
  • 2.5 mA
• Input current per channel for signal (1) typ.
  • 2.9 mA
• Input voltage (note)
  • 24 VDC (-3 VDC < UIN < +30 VDC)
• Isolation
  • 500 V supply/system bus
• Leakage current in OFF state
  • 150 µA
• Limit frequency
  • 1000 kHz
• Number of configurable digital inputs/outputs
  • 4
• Number of digital inputs
  • 4
• Number of digital outputs
  • 4
• Number of inputs (incremental encoder)
  • 2
• Number of inputs (SSI encoder)
  • 2
• Output characteristic
  • Push/pull
• Output current (module)
  • 4 A
• Output current per channel
  • 0.1 A
• Output protection
  • Short circuit/overload protection (thermal shutdown)
• Output voltage
  • ≤ UA
• Parameterizable functions
  • I/O diagnostics (per module): Short circuit/overload (sensor/actuator supply); Undervoltage (ULS + UA) || I/O diagnostics (per channel): Encoder: Over-/underflow, wire break, limit value violation (min./max.); DIO: Overtemperature (actuators) || Online simulation (per channel/module): Diagnostics || DIOs (per channel/module): Operating mode, filter, substitute value strategy, etc. || Cam (per channel): Upper/lower value, output, etc. || Incremental encoder (per channel): Evaluation, filter || SSI encoder (per channel): Data width/length, transmission rate, etc.
• Process data width
  • 2 x 4-byte transmitter value, 2 x 2-byte control data, 1-byte status DI/control DO
• Protection
  • Per module: Reverse voltage protection for ULS + Uo; Short circuit protection for sensor/actuator supply
• Pulse frequency
  • 100 Hz … 10 kHz
• Resolution
  • 16 bits (≤ 1 kHz), 12 bits (> 1 kHz)
• Response time
  • Approx. 10 µs (output 90 %)
• Sensor connection
  • 4 x (2-wire, 3-wire)
• Short-term output current, 1 s (channel)
  • 0.2 A
• Signal input (incremental encoder)
  • RS-422 differential signal
• Signal input (SSI encoder)
  • +D, -D: RS-422 differential signal
• Signal output (SSI encoder)
  • CL+, CL-: RS-422 differential signal
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA)
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Synchronous diagnostics (optional)
  • 2 bytes
• Voltage drop against UA
  • 1.7 V (max.) at 100 mA
• Voltage range for signal (0)
  • −3 … +5 VDC
• Voltage range for signal (1)
  • 15 … 30 VDC
• Zero impulse (latch)
  • 32 bits
