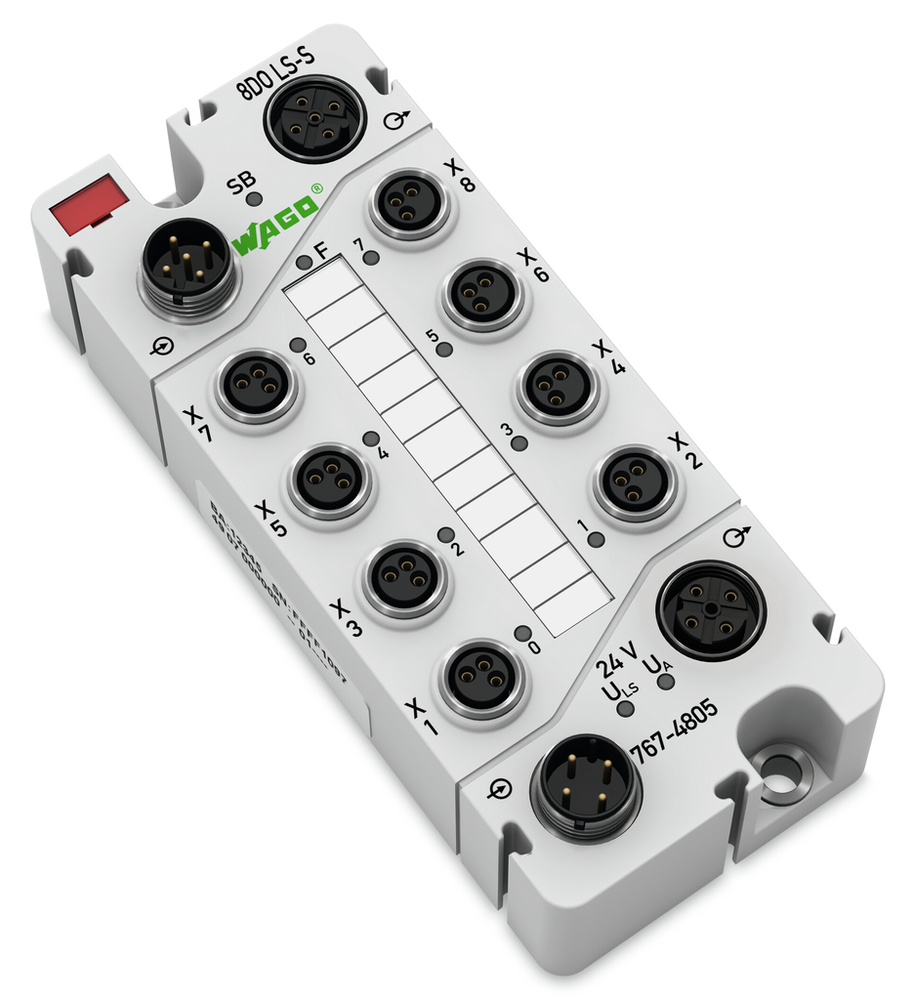

WAGO 767-4805

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371098990
• GTIN
  • 4045454968113
• Packaging type
  • Box

Connection Data

• Connection requirement (permissible cable length)
  • 30 m
• Connection requirement (permissible cable type)
  • Digital outputs: unshielded
• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 8 x M8 socket; 3-pole
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Operating altitude
  • −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 0.1 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 0.5 ppm
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Conformity marking
  • CE
• Encapsulation
  • Polyurethane (PUR), halogen/silicon-free
• Fire load
  • 0.009 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 270.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 50 mm / 1.969 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 8 x (2-wire, 3-wire)
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 20 mA
• Current consumption (system and sensor)
  • 40 mA
• Drop-out time from “1” to “0”
  • Typ. 150 µs (resistive load)
• Indicators
  • LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DO 1 … DO 8; Non-retentive displays
• Isolation
  • 500 V supply/system bus
• Leakage current in OFF state
  • 150 µA
• Load type
  • Resistive, inductive, lamp load
• Load type of switching frequency
  • Inductive load
• Number of digital outputs
  • 8
• Output characteristic
  • Low-side switching
• Output current
  • Short-circuit/overload-protected
• Output current (module)
  • 4 A
• Output current per channel
  • 0.5 A
• Output operation
  • Non-retentive
• Output resistance
  • 0.4 Ω
• Parameterizable functions
  • I/O diagnostics (per module): Undervoltage (ULS + UA) || I/O diagnostics (per channel): Overtemperature || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics || Inversion (per channel): On/Off || Substitute value (per channel): 0/1 || Substitute value strategy (per channel): Switch substitute value/Hold last value || Manual mode (per channel): On/Off || Manual mode value (by channel): 0/1
• Process data width
  • 1-byte data + status
• Protection
  • Reverse voltage protection for ULS + Uo
• Protection against reverse voltages
  • 0.5 A
• Rise time from “0” to “1”
  • Typ. 150 µs (resistive load)
• S-bus (system bus) disruption
  • 0 V status
• Signal type
  • Voltage
• Signal type (voltage)
  • 24 VDC
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA)
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Switching frequency (max.)
  • 500 Hz; Inductive load
• Switching frequency (max.) (2)
  • 20 Hz; Resistive load
• Switching frequency (max.) (3)
  • 500 Hz; Lamp load
• System and sensor power consumption (note)
  • Logic component only
• Total number of channels (module)
  • 8
• Voltage drop against UA
  • 0.2
