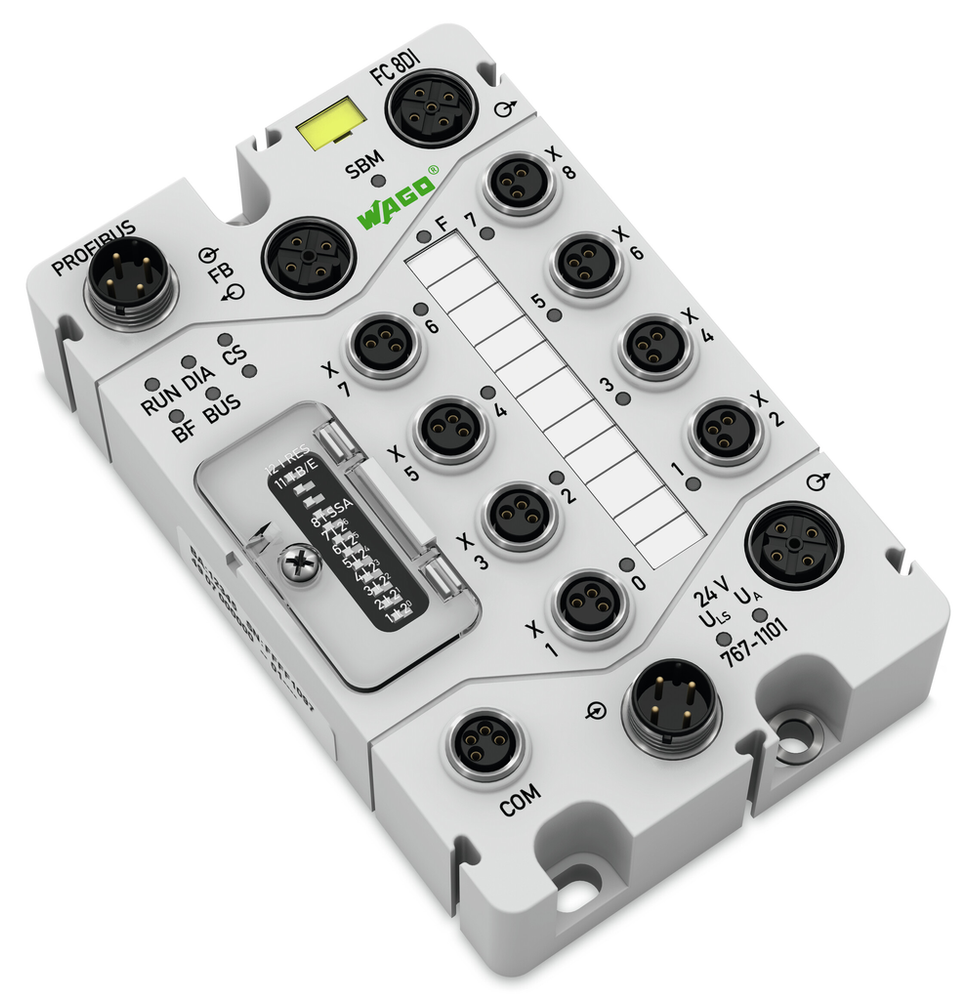

WAGO 767-1101

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85176200000
• GTIN
  • 4045454545093
• Packaging type
  • Box

Connection Data

• Connection requirement (permissible cable length)
  • 30 m
• Connection requirement (permissible cable type)
  • Digital inputs: unshielded
• Connection technology: communication/fieldbus
  • PROFIBUS: 1 x M12 socket; 4-pole; B-coded
• Connection technology: device configuration
  • 1 x M8 socket; 4-pole (USB standard 1.1)
• Connection technology: field supply
  • 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
• Connection technology: inputs/outputs
  • 8 x M8 socket; 3-pole
• Connection technology: system bus
  • 1 x M12 socket, 5-pole, B-coded, shielded
• Connection technology: system supply
  • 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-4
• EMC immunity to interference
  • Per EN 61000-6-2
• Operating altitude
  • −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 0.1 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 0.5 ppm
• Protection class
  • III
• Protection type
  • IP67
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• Vibration resistance
  • 5g per IEC 60068-2-6

Material Data

• Color
  • Light gray
• Conformity marking
  • CE
• Encapsulation
  • Polyurethane (PUR), halogen/silicon-free
• Fire load
  • 0.016 MJ
• Housing material
  • Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Weight
  • 380.000 g

Physical Data

• Depth
  • 117 mm / 4.606 inches
• Height
  • 35.7 mm / 1.406 inches
• Width
  • 75 mm / 2.953 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Baud rate
  • 9.6 kBd … 12 MBd
• Communication
  • PROFIBUS
• Current carrying capacity (supply connections)
  • 8 A
• Current consumption, field supply (module with no external load)
  • 5 mA
• Current consumption (system and sensor)
  • 110 mA
• Indicators
  • LED (BF, DIA, BUS, F) red: Bus error, fieldbus diagnostics, configuration error, input error status; LED (RUN, SBM, CS) green/red: Fieldbus coupler initialization, system bus master, fieldbus coupler status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow: Status DI 1 … DI 8; Non-retentive displays
• Input and output process image (fieldbus) max.
  • 244 bytes/244 bytes
• Input characteristic
  • High-side switching || Type 1, per IEC 61131-2
• Input current per channel for signal (1) typ.
  • 2.8 mA
• Input filter (digital)
  • 0.1 ms || 0.5 ms || 3 ms || 15 ms || 20 ms
• Isolation
  • 500 V supply/system bus/fieldbus
• Number of digital inputs
  • 8
• Number of expandable modules
  • 63
• Parameterizable functions
  • I/O diagnostics (per module): Short circuit/overload (encoder supply); Undervoltage (ULS + UA) || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1 || Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off" || Inversion (per channel): On/Off
• Protection
  • Reverse voltage protection for ULS + Uo; Short circuit protection for sensor supply
• Sensor connection
  • 8 x (2-wire, 3-wire)
• Signal type
  • Voltage
• Station addresses
  • 0 … 125 (adjustable via operation panel or PROFIBUS)
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
• Supply voltage (system and sensor)
  • 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• System and sensor power consumption (note)
  • + sensors (max. 400 mA)
• Total number of channels (module)
  • 8
• Transmission medium
  • RS-485 / 2-core copper cable per IEC 61158 and EN50170
• Voltage range for signal (0)
  • −3 … +5 VDC
• Voltage range for signal (1)
  • 15 … 30 VDC
