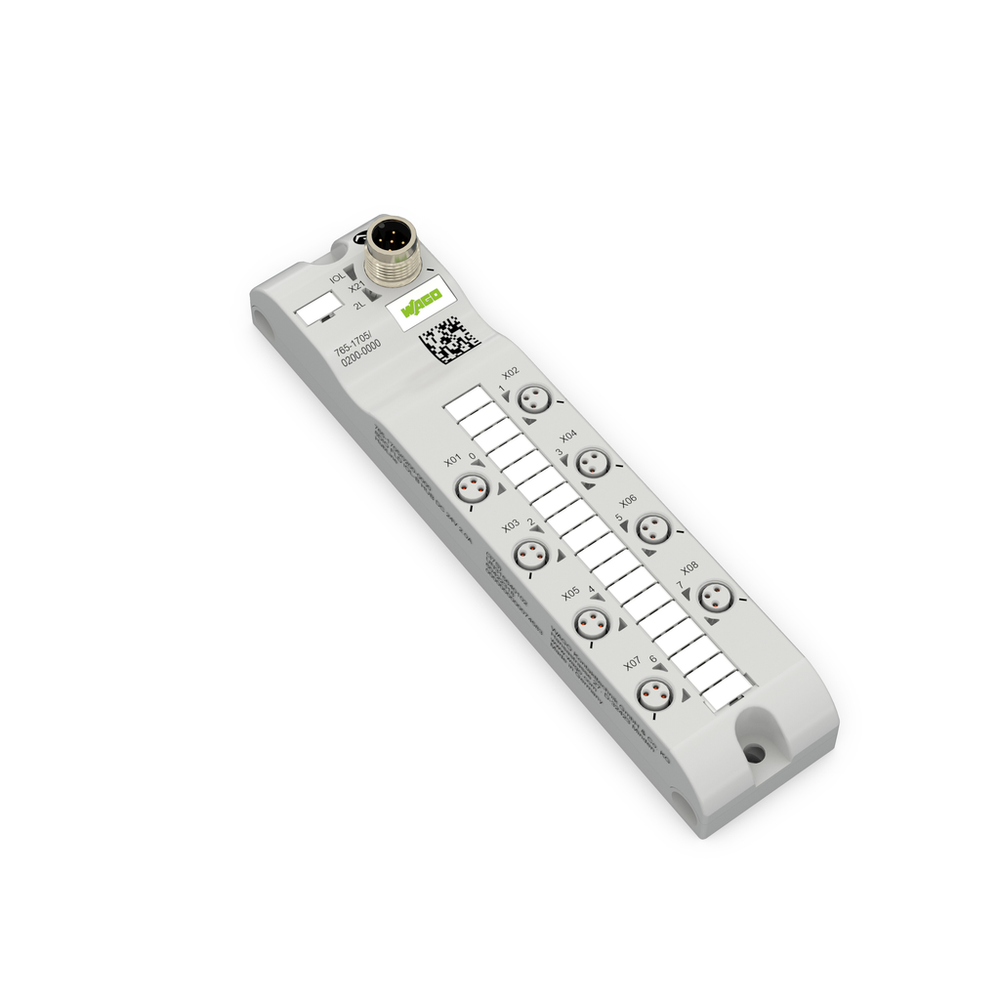

WAGO 765-1705/200-000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
8-channel digital input/output; IO Link Class B Server Hub; 8 Configurable DIO; DC 24 V / 2.0 A; 8xM8 connection; HubLine
WAGO 765-1705/200-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85371098990
- GTIN
- 4055143949781
- Packaging type
- Box
Device Functions
- Diagnostics
- Undervoltage; overcurrent; overload; overtemperature
- Parameter
- Input filter || Output current || Temperature
Digital Inputs/Outputs
- Connection technology: inputs/outputs
- 8 x M8; 3-pole
- Input characteristic
- High-side switching || Type 3, per IEC 61131-2
- Input filter
- 0.2 … 20 ms
- Number of digital inputs
- 8
- Number of digital outputs
- 8
- Output current (per channel)
- 2 A
- Signal type (voltage)
- 24 VDC
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +80 °C
- EMC emission of interference
- Per EN 61000-6-4
- EMC immunity to interference
- Per EN 61000-6-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Overvoltage category
- II (EN 60664-1)
- Pollution degree
- 3 (EN 60664-1)
- Protection class
- III per EN 61140, IEC 61140, VDE 0140-1
- Protection type
- IP67
- Shock resistance
- Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
- Vibration resistance
- 5g per IEC 60068-2-6
Io-Link
- Communication
- IO-Link slave (class B)
- Connection technology: communication/fieldbus
- 1 x A-coded M12; 5-pole
Mechanical Data
- Conformity marking
- CE
- Weight
- 120.000 g
Physical Data
- Depth
- 158.5 mm / 6.24 inches
- Height
- 30 mm / 1.181 inches
- Width
- 35 mm / 1.378 inches
Specifications
- Product Group Code
- 0041
Supply
- Connection technology: supply
- 1 x A-coded M12; 5-pole; via IO-Link port (1L/2L)
- Current consumption (max.)
- 4000 mA
- Current consumption (note)
- 1L: 0.2 A; 2L: 0.1 A; + load current
- Reverse voltage protection
- Yes
- Supply voltage
- 24 VDC (18 … 31.2 V); 1L/2L
