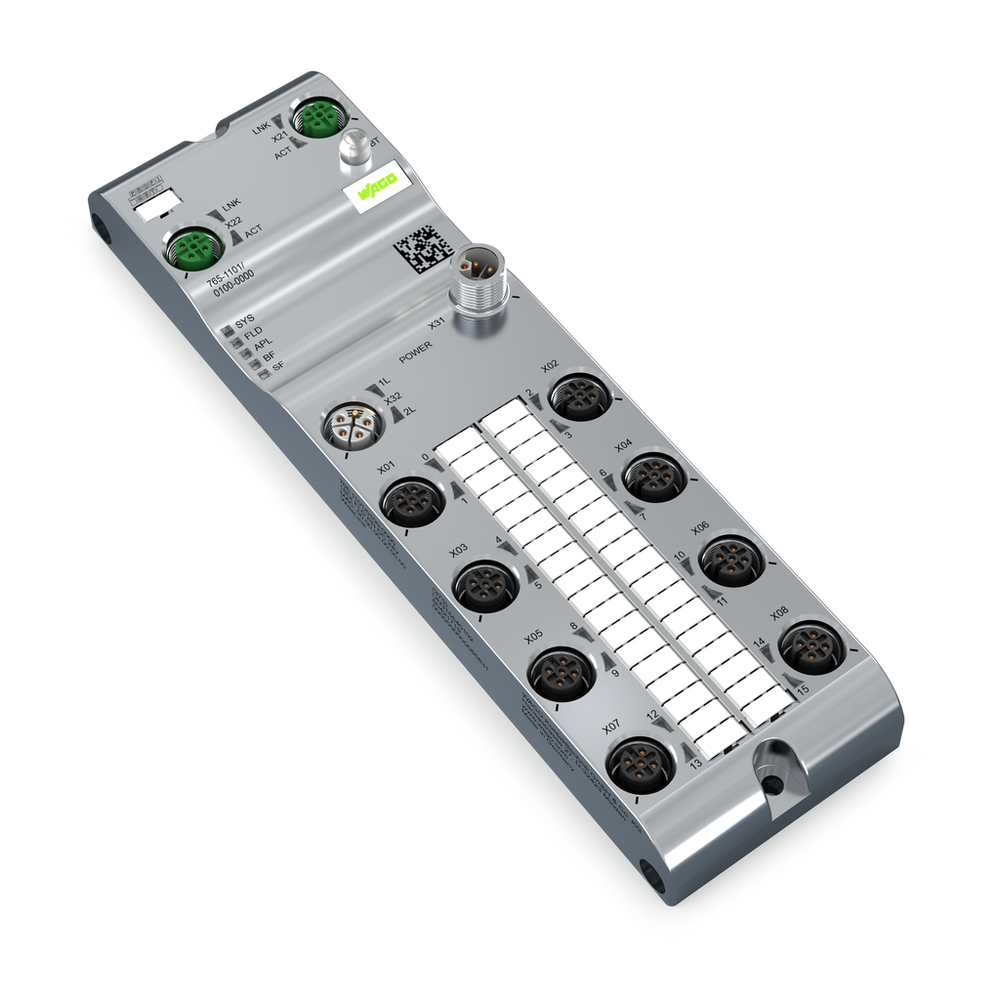

WAGO 765-1101/100-000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
16-channel digital input; Profinet; 24 VDC; 8xM12 connection; WideLine
WAGO 765-1101/100-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4055143948005
- Packaging type
- Box
Device Functions
- Device functions
- Bluetooth® || OPC UA server
- Diagnostics
- Undervoltage; overcurrent; overload; overtemperature
- Parameter
- Input filter || Temperature
- Visualization
- Android/iOS app || Web server
Digital Inputs/Outputs
- Connection technology: inputs/outputs
- 8 x A-coded M12; 5-pole
- Input characteristic
- High-side switching || Type 3, per IEC 61131-2
- Input filter
- 0.2 … 20 ms
- Number of digital inputs
- 16
- Sensor current (per channel) max.
- 2 A
- Signal type (voltage)
- 24 VDC
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +80 °C
- EMC emission of interference
- Per EN 61000-6-4
- EMC immunity to interference
- Per EN 61000-6-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Overvoltage category
- II (EN 60664-1)
- Pollution degree
- 3 (EN 60664-1)
- Protection class
- III per EN 61140, IEC 61140, VDE 0140-1
- Protection type
- IP67
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
- Vibration resistance
- 5g per IEC 60068-2-6
Fieldbus
- Autonegotiation; autocrossover
- Yes
- Communication
- PROFINET || PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
- Connection technology: communication/fieldbus
- 2 x D-coded M12; 4-pole
- Interface standard
- 10BASE-T/100BASE-TX; potential-free
- PROFINET IO features
- PROFINET IO device; 2-port switch, LLDP, MRP, SNMP
Mechanical Data
- Conformity marking
- CE
- Weight
- 610.000 g
Physical Data
- Depth
- 210 mm / 8.268 inches
- Height
- 30 mm / 1.181 inches
- Width
- 60 mm / 2.362 inches
Specifications
- Product Group Code
- 0041
Supply (Module)
- Connection technology: supply
- 2 x L-coded M12; 5-pole
- Current consumption (max.)
- 16000 mA
- Current consumption (note)
- Per supply line; overload- and short-circuit-protected
- Reverse voltage protection
- Yes
- Supply voltage
- 24 VDC (18 … 31.2 V); 1L/2L
