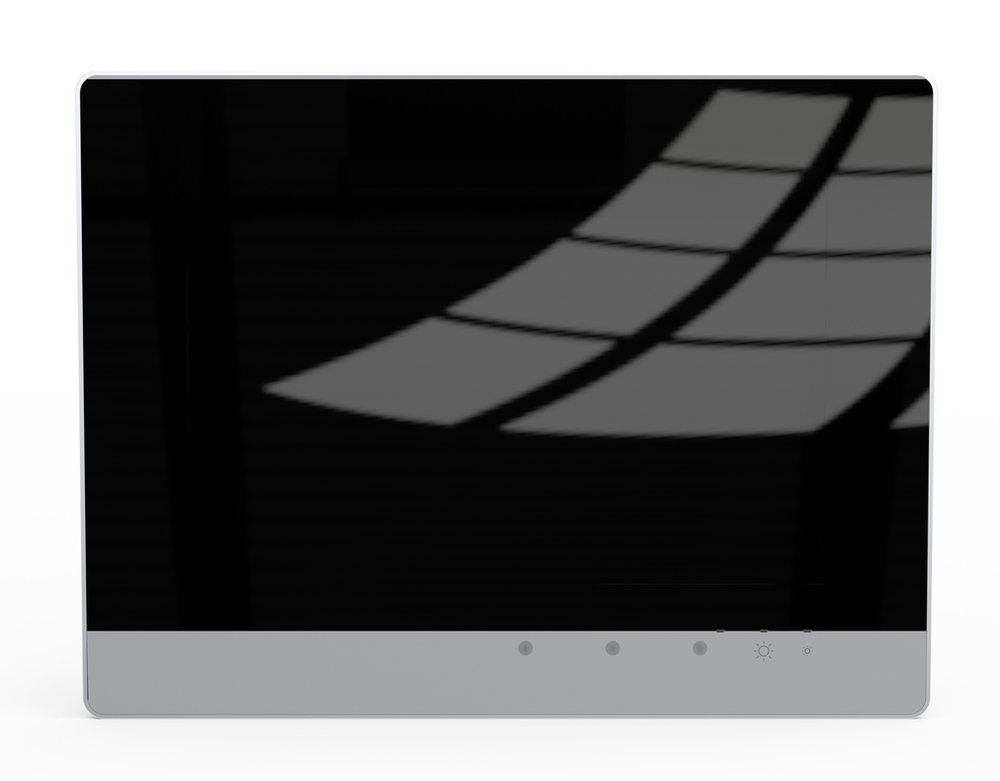

WAGO 762-5304/8000-002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Advanced Line; 10.1" (25.7 cm); 1280 x 800 pixels; 2 x ETHERNET, 2 x USB, CAN, DI/DO, RS-232/485, Audio; Control Panel
WAGO 762-5304/8000-002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84714100000
- GTIN
- 4055143825078
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- Modbus (TCP, UDP): 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus (UDP): 2 x RJ-45; RS-232 + RS-485/422 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A)
- Connection technology: supply
- 1 x included female connector (734-103) with three CAGE CLAMP® connections
Environmental Requirements
- Ambient temperature (operation)
- -20 … +55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
- Ambient temperature (storage)
- -20 … +80 °C
- Fire load
- 0.003 MJ
- Mounting type
- Clamping elements (included) or VESA mount (4 x M4x8)
- Note on protection type
- IP65 (front side); IP20 (rear side), per EN 60529
- Protection type
- IP65
- Relative humidity (without condensation)
- 90 %
Mechanical Data
- Weight
- 1689.000 g
Physical Data
- Depth
- 78 mm / 3.070 inches
- Height
- 223 mm / 8.78 inches
- Panel cutout (W x H)
- (278 x 208) mm
- Width
- 293 mm / 11.535 inches
Specifications
- Product Group Code
- 0027
Technical Data
- Brightness
- 800 cd/m²
- Communication
- Web browser || Web browser (HTML5) || Modbus TCP master/slave || Modbus (UDP), WagoAppPlcModbus Library || Modbus (RTU), WagoAppPlcModbus Library || ETHERNET || EtherNet/IPTM Adapter (slave) || EtherNet/IPTM Scanner || CANopen || EtherCAT® Master || OPC UA Server/Client || OPC UA Pub/Sub (can be installed later) || MQTT || RS-232 serial interface || RS-485 interface || BACnet/IP, requires an additional license || Telecontrol protocols, requires an additional license || MicroBrowser (Visualization of CODESYS V2.3), requires an additional license
- Contrast ratio
- 800:1
- Controls
- Capacitive (glass), 2 capacitive keys, proximity sensor
- Data memory
- 128 MB
- Display
- Multitouch glass front; capacitive touchscreen with a glass surface
- Display colors
- 16 million colors
- Display diagonal
- 25.7 cm (10.1 inches)
- ETHERNET protocols
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- Graphics resolution
- (1280 x 800) px
- Indicators
- Three-color LED (red, green, blue)
- Internal memory (flash)
- 4096 MB
- Main memory (RAM)
- 2048 MB
- Non-volatile software memory
- 128 KB
- Operating power
- 11.8 W, without USB load; 17.0 W, with USB load
- Operating system
- Real-time Linux (with RT-Preempt patch)
- Processor
- ARM® Cortex® A9 Quadcore 1.0 GHz
- Program memory
- 32 MB
- Programming environment
- CODESYS V3.5, from firmware release 24 || e!COCKPIT (based on CODESYS V3), up to firmware release 22
- Supply voltage
- 24 VSELV DC (18 … 31.2 V); with reverse voltage protection
- Type of memory card
- MicroSD (max. 2 GB); microSDHC (max. 32 GB)
- Viewing angle (horizontal/vertical)
- 85° / 85°
- Visualization
- Web server || Web-Visu || Target Visu
