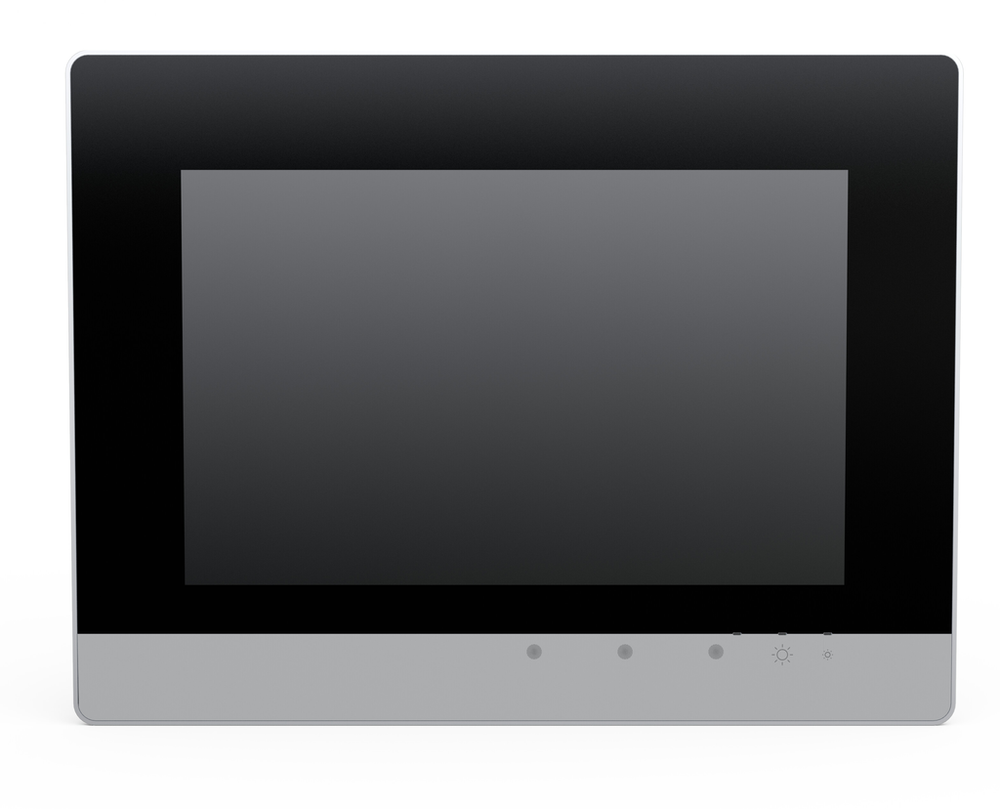

WAGO 762-4104
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Standard Line; 10.1" (25.7 cm); 1280 x 800 pixels; 2 x USB, 2 x ETHERNET; Web Panel
WAGO 762-4104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84714100000
- GTIN
- 4055143825061
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- Web browser: 2 x RJ-45; 2 x USB 2.0 host (type A)
- Connection technology: supply
- 1 x included female connector (734-103) with three CAGE CLAMP® connections
Environmental Requirements
- Ambient temperature (operation)
- -20 … +55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
- Ambient temperature (storage)
- -20 … +80 °C
- Fire load
- 0.003 MJ
- Mounting type
- Clamping elements (included) or VESA mount (4 x M4x8)
- Note on protection type
- IP65 (front side); IP20 (rear side), per EN 60529
- Protection type
- IP65
- Relative humidity (without condensation)
- 90 %
Mechanical Data
- Weight
- 1509.000 g
Physical Data
- Depth
- 58 mm / 2.283 inches
- Height
- 223 mm / 8.78 inches
- Panel cutout (W x H)
- (278 x 208) mm
- Width
- 293 mm / 11.535 inches
Specifications
- Product Group Code
- 0027
Technical Data
- Brightness
- 800 cd/m²
- Communication
- Web browser (HTML5)
- Contrast ratio
- 800:1
- Controls
- Resistive touch panel; 2 capacitive keys; proximity sensor
- Display
- Resistive touchscreen
- Display colors
- 16 million colors
- Display diagonal
- 25.7 cm (10.1 inches)
- ETHERNET protocols
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- Graphics resolution
- (1280 x 800) px
- Indicators
- Three-color LED (red, green, blue)
- Internal memory (flash)
- 4096 MB
- Main memory (RAM)
- 2048 MB
- Operating power
- 11.6 W, without USB load; 16.8 W, with USB load
- Operating system
- Real-time Linux (with RT-Preempt patch)
- Processor
- ARM® Cortex® A9 Quadcore 1.0 GHz
- Supply voltage
- 24 VSELV DC (18 … 31.2 V); with reverse voltage protection
- Type of memory card
- MicroSD (max. 2 GB); microSDHC (max. 32 GB)
- Viewing angle (horizontal/vertical)
- 85° / 85°
- Visualization
- Web server
