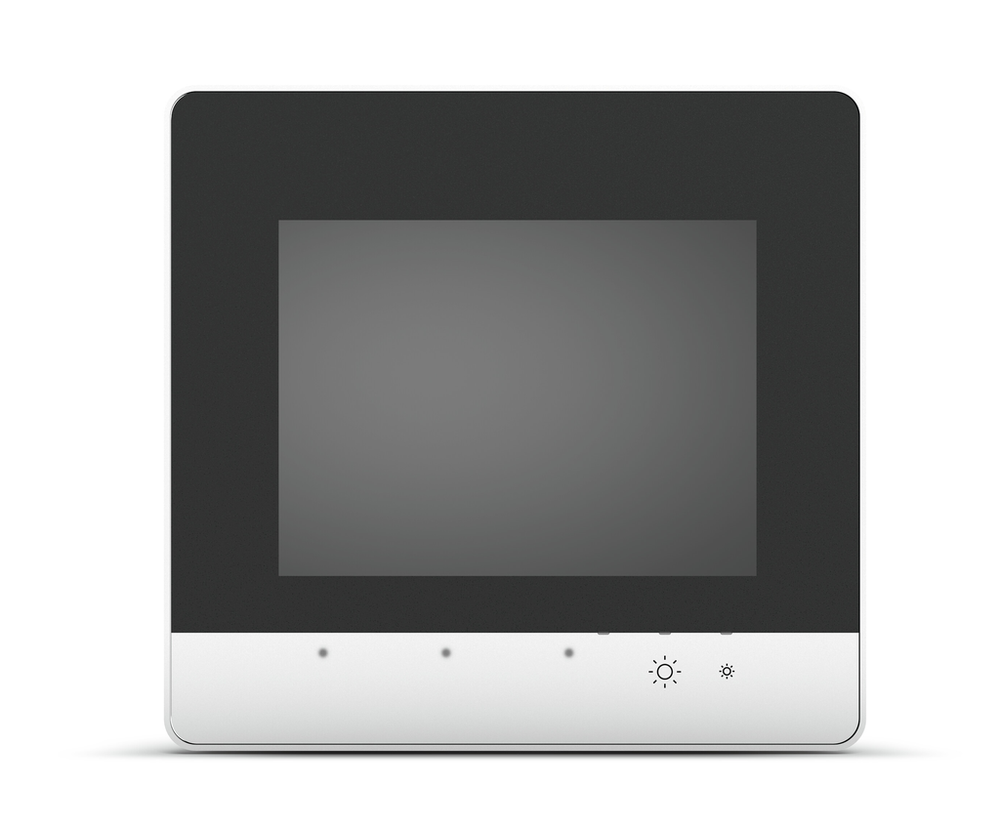

WAGO 762-3001
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Web Panel; 5.7" (14.5 cm); 640 x 480 pixels; 2 x USB, 2 x ETHERNET
WAGO 762-3001 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84714100000
- GTIN
- 4055143356503
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- Modbus (TCP): 2 x RJ-45; USB: 2 x USB 2.0 host (type A)
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -20 … +80 °C
- Fire load
- 0.003 MJ
- Mounting type
- Clamping elements (included) or VESA mount (4 x M4x8)
- Note on protection type
- IP65 (front side); IP20 (rear side), per EN 60529
- Protection type
- IP65
- Relative humidity (without condensation)
- 90 %
Mechanical Data
- Conformity marking
- CE
- Front panel
- Anodized aluminum, polyester film
- Housing material
- Anodized aluminum
- Weight
- 1067.000 g
Physical Data
- Depth
- 58 mm / 2.283 inches
- Height
- 163 mm / 6.417 inches
- Panel cutout (W x H)
- (157 x 148) mm
- Width
- 172 mm / 6.772 inches
Specifications
- Product Group Code
- 0027
Technical Data
- Baud rate
- ETHERNET: 10/100 Mbit/s
- Brightness
- 630 cd/m²
- Communication
- Web browser (CODESYS2)
- Contrast ratio
- 300:1
- Controls
- Resistive touch panel; 2 capacitive keys; proximity sensor
- Display
- Resistive touchscreen
- Display colors
- 262,000 colors
- Display diagonal
- 14.5 cm (5.7 inches)
- ETHERNET protocols
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- Graphics resolution
- (640 x 480) px
- HBT (Half Brightness Time)
- 30000 h
- Indicators
- Three-color LED (red, green, blue)
- Input current (max.) (24 V)
- 210 mA
- Internal memory (flash)
- 1024 MB
- Main memory (RAM)
- 512 MB
- Operating power
- 5.1 W (max.)
- Operating system
- Linux®
- Processor
- ARM® Cortex™ A8 600 MHz
- Supply voltage
- 24 VSELV DC (18 … 31.2 V); with reverse voltage protection
- Type of memory card
- MicroSD (max. 2 GB); microSDHC (max. 32 GB)
- Viewing angle (horizontal/vertical)
- 80° / 80°
- Visualization
- Web-Visu
