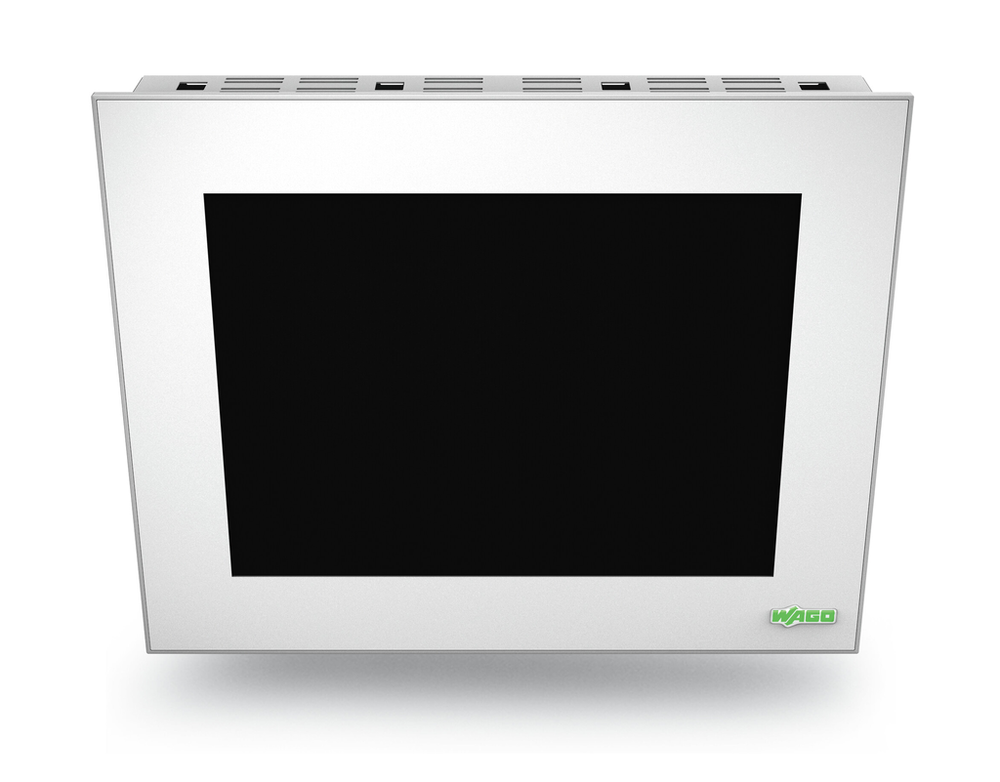

WAGO 762-1121
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Web Panel; 30.7 cm (12.1"); 800 x 600 pixels
WAGO 762-1121 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84714100000
- GTIN
- 4045454998479
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- Modbus (TCP): 1 x RJ-45; Modbus® RTU: 1 x D-sub 9 plug; CANopen: 1 x RJ-45; CANopen: 1 x D-sub 9 plug; RS-232 serial interface: 1 x D-sub 9 plug; RS-232 + RS-485/422 serial interface: 1 x D-sub 9 plug; USB: 2 x USB 2.0 host (type A)
Environmental Requirements
- Ambient temperature (operation)
- 0 … +50 °C
- Ambient temperature (storage)
- -10 … +60 °C
- Fire load
- 0.000 MJ
- Mounting type
- 6 x clamping elements
- Note on protection type
- IP65 (front side); IP20 (rear side)
- Protection type
- IP65
- Relative humidity (without condensation)
- 85 %
Mechanical Data
- Conformity marking
- CE
- Front panel
- Anodized aluminum, natural, polyester film
- Housing material
- Sheet steel, painted
- Weight
- 2600.000 g
Physical Data
- Depth
- 47 mm / 1.85 inches
- Height
- 268 mm / 10.551 inches
- Panel cutout (W x H)
- (312 x 250) mm
- Width
- 330 mm / 12.992 inches
Specifications
- Product Group Code
- 0027
Technical Data
- Baud rate
- ETHERNET: 10/100 Mbit/s
- Brightness
- 400 cd/m²
- Communication
- Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || CANopen
- Contrast ratio
- 500:1
- Controls
- Touch, analog, resistive
- Display
- TFT
- Display colors
- 65536 colors
- Display diagonal
- 30.7 cm (12.1 inches)
- Graphics resolution
- (800 x 600) px
- HBT (Half Brightness Time)
- 50000 h
- Input current (max.) (24 V)
- 500 mA
- Internal memory (flash)
- 32 MB
- Main memory (RAM)
- 64 MB
- Memory
- 1 MB
- Operating power
- 10 W … 18 W
- Operating system
- Windows CE
- Processor
- 32-bit XScale 520 MHz
- Supply voltage
- 24 VDC (18 … 30 V)
- Type of memory card
- CF card (max. 2 GB)
- Viewing angle (horizontal/vertical)
- -65° … 65° / -75° … 45°
- Visualization
- Web-Visu
