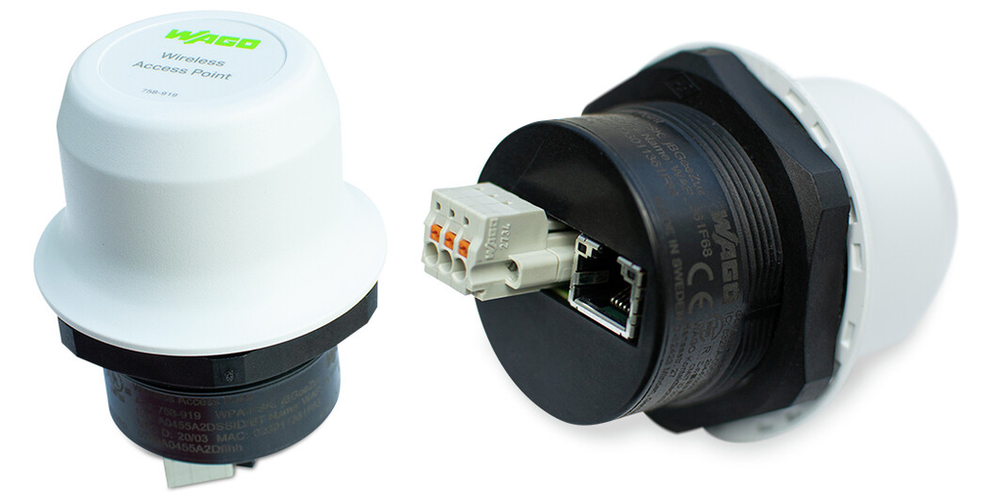

WAGO 758-919

Commercial Data

• Country of origin
  • SE
• Customs tariff number
  • 85176200000
• GTIN
  • 4066966110579

Connection Data

• Connection technology: communication/fieldbus
  • 1 x RJ-45
• Connection technology: supply
  • 1 x Female connector; 3-pole

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +65 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• Note on protection type
  • Top (outside of unit): IP66/IP67/UL NEMA 4X ; Base (inside of unit): IP21
• Protection type
  • IP67

Material Data

• Conformity marking
  • CE
• Fire load
  • 0.000 MJ
• Weight
  • 84.000 g

Mechanical Data

• Mounting type
  • M50 through-panel installation (cut-out = 50.5 mm)

Notes

• Note
  • The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual.

Physical Data

• Height
  • 75 mm

Specifications

• Product Group Code
  • 0027

Technical Data

• Antenna
  • Internal 2.4 GHz and 5 GHz broadband antenna
• Configuration options
  • Web-Based Management
• Frequency band
  • ISM band, 2.4 GHz (Bluetooth®, WLAN); ISM band, 5 GHz (WLAN)
• Radio technology
  • Bluetooth® 2.1 || Bluetooth® 4.0 (Low Energy) || WLAN: IEEE 802.11 a, b, g, n, d, r
• Security authentication
  • WLAN: WEP 64/128; WPA; WPA-PSK and WPA2; TKIP and AES/CCMP; LEAP; PEAP including MS-CHAP
• Security encryption
  • Bluetooth® 2.1: NIST-compliant; FIPS-approved (authentication and authorization, encryption and data security, privacy and discretion); Bluetooth® 4.0 (Low Energy): AES-CCM encryption
• Supply voltage
  • 19 … 36 VDC
• Transmission range
  • Up to 200 m
