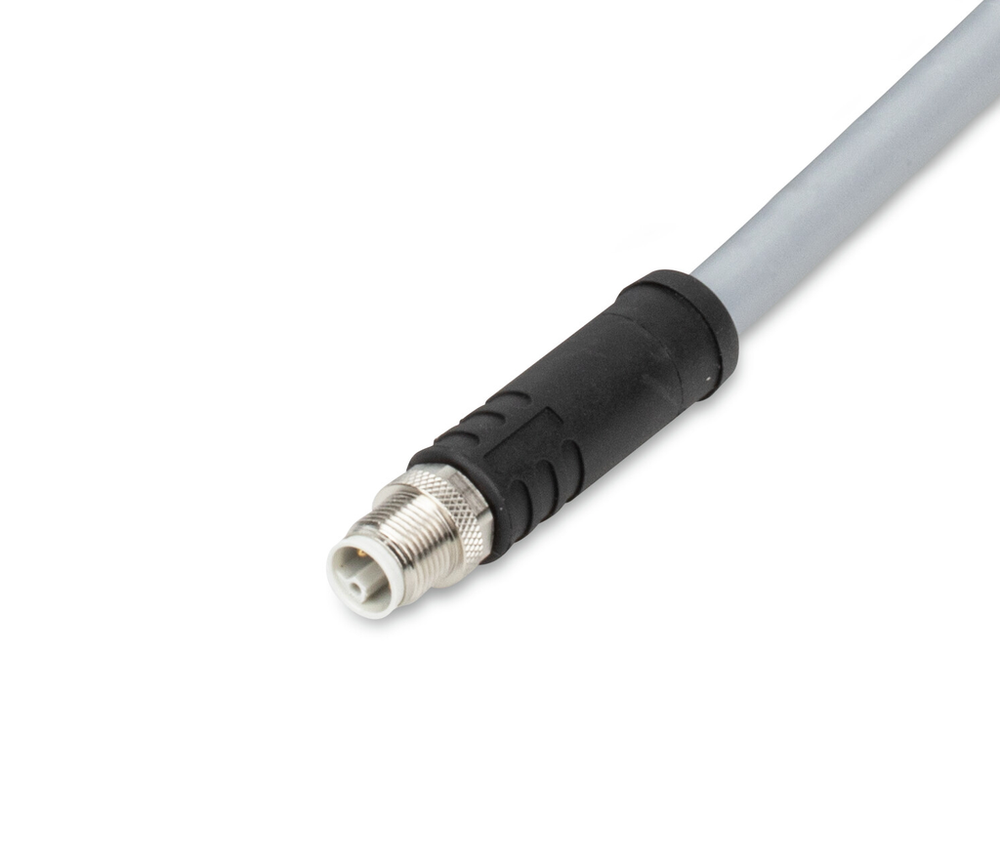

WAGO 756-3503/050-050
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WAGO 756-3503/050-050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable
- Cable length
- 5 m
- Conductor configuration
- Bare copper wire (84 x 0.15 mm)
- Conductor insulation
- PP9Y (halogen-free)
- Sheathed cable color
- Gray
- Sheathed cable diameter
- 9.6 … 10.2 mm
- Type code
- LiF9YH-11Y-0B 5x1.5mm²
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85444290900
- GTIN
- 4055143982078
- Packaging type
- Unpacked
Connector
- Cable connection direction to mating direction
- 0 °
- Connection type
- M12 plug - free end
- Connector interface coding (cable/adapter) 1 1
- L-coded
- Housing material
- TPU/TPU, black (~ RAL 9005)
- Tightening torque
- 1 Nm
General
- Ambient (operating) temperature (dynamic)
- -30 … +90 °C
- Ambient (operating) temperature (static)
- -40 … +90 °C
- Ambient temperature (operation)
- -40 … +90 °C (UL max. +80 °C)
- Conductor resistance
- ≤ 13.7 Ω/km
- Contact resistance
- 5 mΩ
- Insulation resistance
- 1000 MΩ
- Operating current
- 16 A
- Operating voltage
- 63 VDC per IEC 60664-1
- Pollution degree
- 3 per IEC 60664-1
- Protection type
- IP68
- Rated surge voltage
- 1.5 kV per IEC 61076-2-111
Specifications
- Product Group Code
- 0023
Suitable For Drag Chains
- Bending cycles
- 10 million
- Bending radius
- Fixed: >4xØ; Flexible: >7.5xØ
