WAGO 756-1503/060-050
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

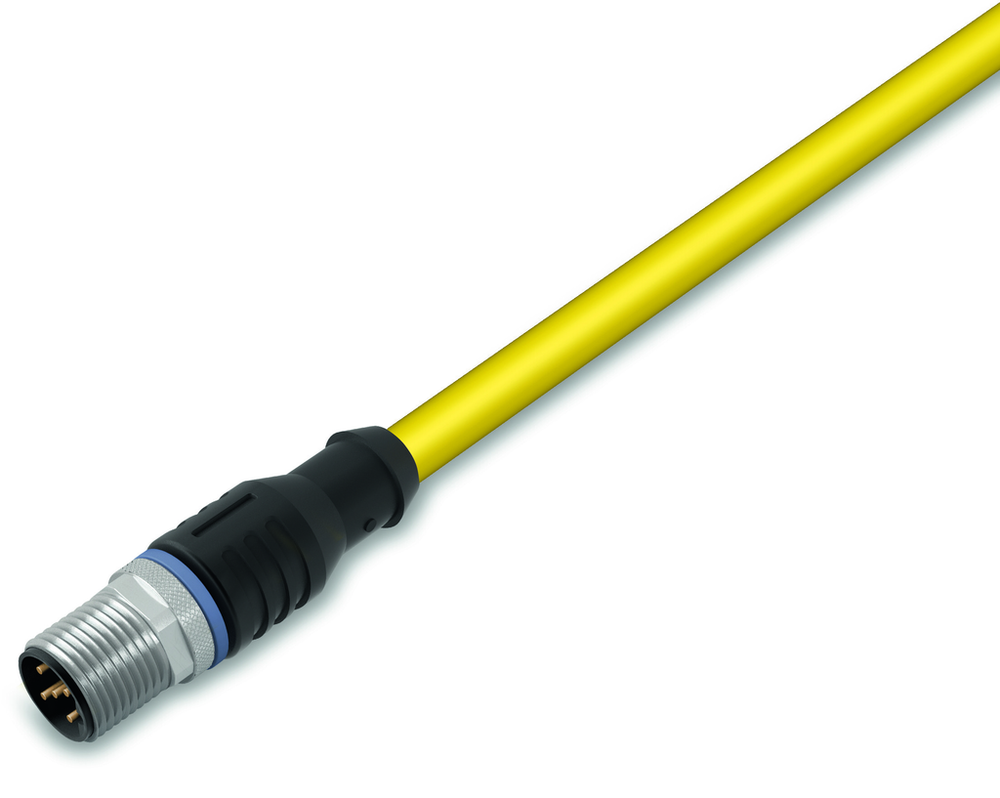

System bus cable for drag chain; M12B plug; straight; 5-pole; Length: 5 m
WAGO 756-1503/060-050 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85444290900
- GTIN
- 4050821131106
- Packaging type
- Box
Environmental Requirements
- Ambient (operating) temperature (dynamic)
- 0 … +50 °C
- Ambient (operating) temperature (static)
- -30 … +50 °C
- Fire load
- 0.000 MJ
- Pollution degree
- 3/2 per IEC 60664-1
- Protection type
- IP67
Mechanical Data
- Bending cycles
- 5 million
- Bending radius
- 5 x cable diameter (min.)
- Color
- Yellow
- Conductor configuration
- Bare copper wire (AWG 26/19)
- Conductor insulation
- FEP; Core Ø: 1.0 mm (max.)
- Contact material
- CuZn
- Contact plating
- CuNi/Au
- Drag chain capability
- Yes
- Housing material
- TPU/TPU, black (~ RAL 9005)
- Material properties of the connections
- Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton)
- Mating cycles (max.)
- 100
- Sheathed cable diameter
- 6.8 mm
- Shield
- Tinned copper braid, optical coverage approx. 90 %
- Tightening torque
- 1 Nm
- Type code
- KS-6Y3GC11Y 4x2xAWG26/19 shielded
- Weight
- 9.999 g
Specifications
- Product Group Code
- 0023
Technical Data
- Cable connection direction to mating direction
- 0 °
- Cable length
- 5 m
- Conductor resistance
- ≤ 130 Ω/km
- Connection type
- M12 plug - free end
- Connector interface coding (cable/adapter) 1 1
- B-coded
- Contact resistance
- 10 mΩ
- Insulation resistance
- 5000 MΩ
- Operating current
- 4 A
- Operating voltage
- 60 V
- PLC manufacturer
- WAGO
- Pole number
- 5
- Rated surge voltage
- 1.5 kV per IEC 61076-2-101
