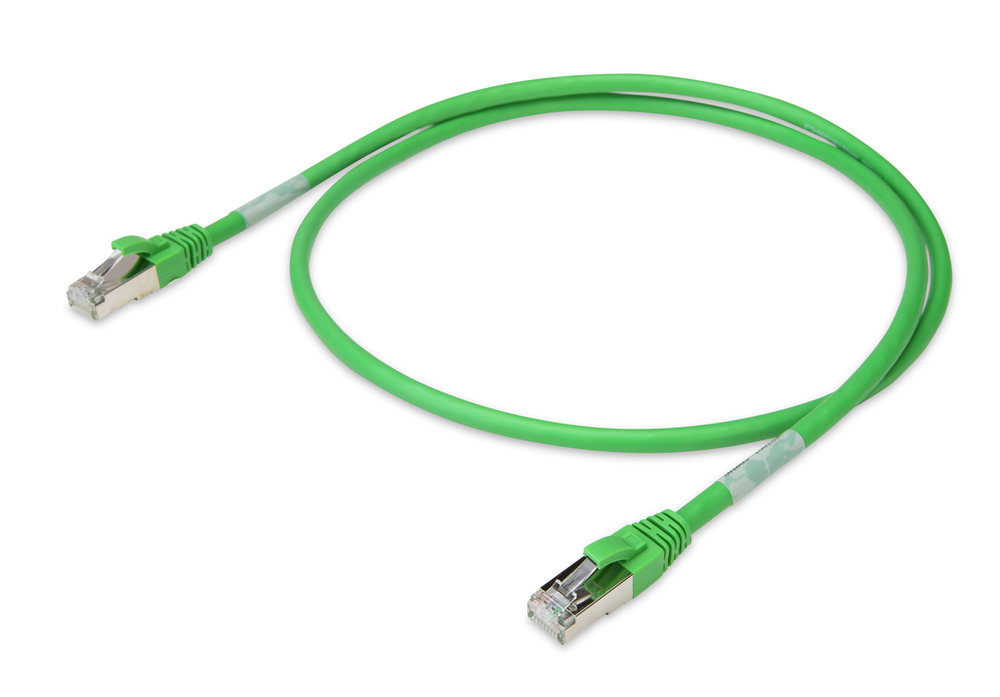

WAGO 756-1250/1013-075
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WAGO 756-1250/1013-075 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85444210000
- GTIN
- 4055143763080
- Packaging type
- Bag
Environmental Requirements
- Ambient (operating) temperature (dynamic)
- -40 … +80 °C
- Ambient (operating) temperature (static)
- -40 … +80 °C
- Fire load
- 0.000 MJ
Mechanical Data
- Bending cycles
- 8500 million
- Bending radius
- 10 mm (min.)
- Color
- Green
- Conductor configuration
- Bare copper wire (7 x 0.16 mm)
- Conductor insulation
- Halogen-free PE
- Contact material
- CuZn
- Contact plating
- CuNi/Au; 50 µinch gold plating
- Halogen-free
- Yes
- Mating cycles (max.)
- 1200
- Sheathed cable color
- Green
- Sheathed cable diameter
- 6 … 6.4 mm
- Sheath material
- LSOH TPE, halogen-free per IEC 60754-2, flame-retardant per IEC 60332-1, low-smoke per IEC 61034
- Shield
- Overlapped aluminum-laminated foil and tinned copper braid (PiMF)
- Weight
- 269.714 g
Specifications
- Product Group Code
- 0023
Technical Data
- Baud rate
- 10000 Mbit/s
- Cable connection direction to mating direction
- 0 °
- Cable length
- 7.5 m
- Conductor resistance
- < 142 Ω/km
- Connection type
- RJ-45 plug - RJ-45 plug
- Insulation resistance
- ≥ 1x108 Ωxkm
- Operating current
- 0.72 A
- Operating voltage
- 80 V
- Rated surge voltage
- 500 V (wire/wire/shield rms 50 Hz 1 min)
