WAGO 756-1204/060-010
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

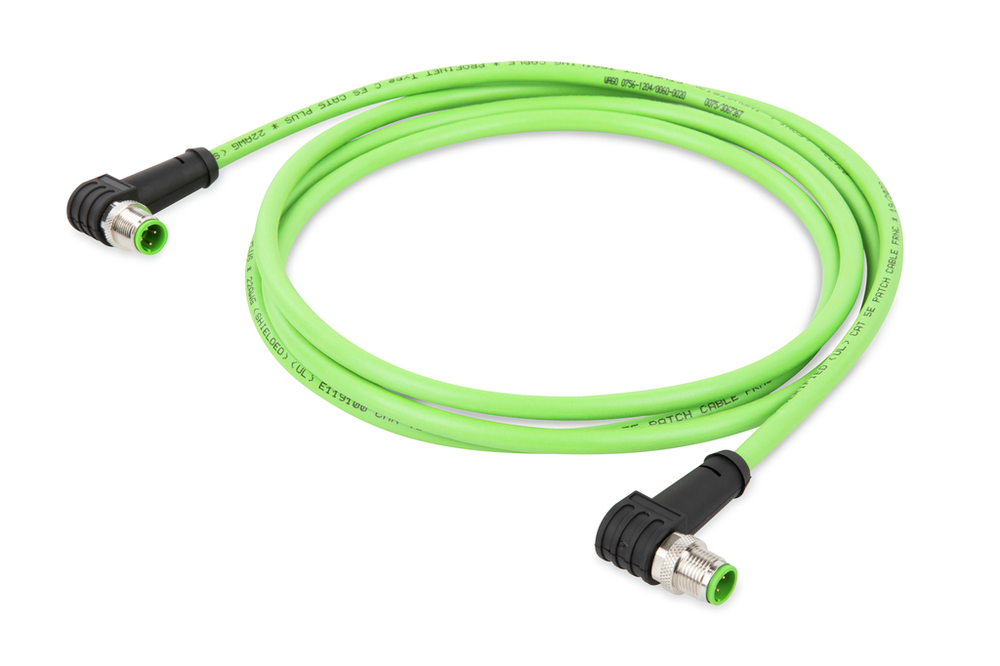

ETHERNET cable; M12D plug; angled; M12D plug; angled; 4-pole; Length: 1 m
WAGO 756-1204/060-010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Cable
- Cable length
- 1 m
- Conductor configuration
- Bare copper wire (7 x 0.25 mm)
- Conductor insulation
- Halogen-free PE
- Overall shield
- Overlapped aluminum-laminated foil and tinned copper braid, optical coverage approx. 85 %
- Sheathed cable diameter
- 6.3 … 6.7 mm
- Sheath material
- Polyurethane (PUR), halogen-free per VDE 0250 Part 818, flame resistant per IEC 60332-1-2
- Type code
- 02YH(ST)C11Y 2x2x0.75/1.5-100 LI GN VZN FRNC, shielded
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85444290900
- GTIN
- 4055143229517
- Packaging type
- Box
Connector
- Cable connection direction to mating direction
- 90 °
- Cable connection direction to mating direction (2)
- 90 °
- Connection type
- M12 plug - M12 plug
- Connector interface coding (cable/adapter) 1 1
- D-coded
- Connector interface coding (cable/adapter) 2 1
- D-coded
- Contact material
- CuZn
- Housing material
- TPU/TPU, black (~ RAL 9005)
- Tightening torque
- 1 Nm
General
- Ambient (operating) temperature (dynamic)
- -40 … +70 °C
- Ambient (operating) temperature (static)
- -40 … +70 °C
- Conductor resistance
- < 57 Ω/km
- Contact resistance
- 10 mΩ
- Operating current
- 4 A
- Operating voltage
- 250 V
- Pollution degree
- 3/2 per IEC 60664-1
- Protection type
- IP67
- Rated surge voltage
- 2 kV
Specifications
- Product Group Code
- 0023
Suitable For Drag Chains
- Acceleration (min.)
- 4 m/s²
- Bending cycles
- 3 million
- Bending diameter (min.)
- 200 mm
- Bending radius
- Single: 5 x cable diameter (min.); Multiple: 7.5 x cable diameter (min.)
- Travel path (horizontal) max.
- 10 m
- Travel speed (max.)
- 4 m/s
