WAGO 756-1106/060-004
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

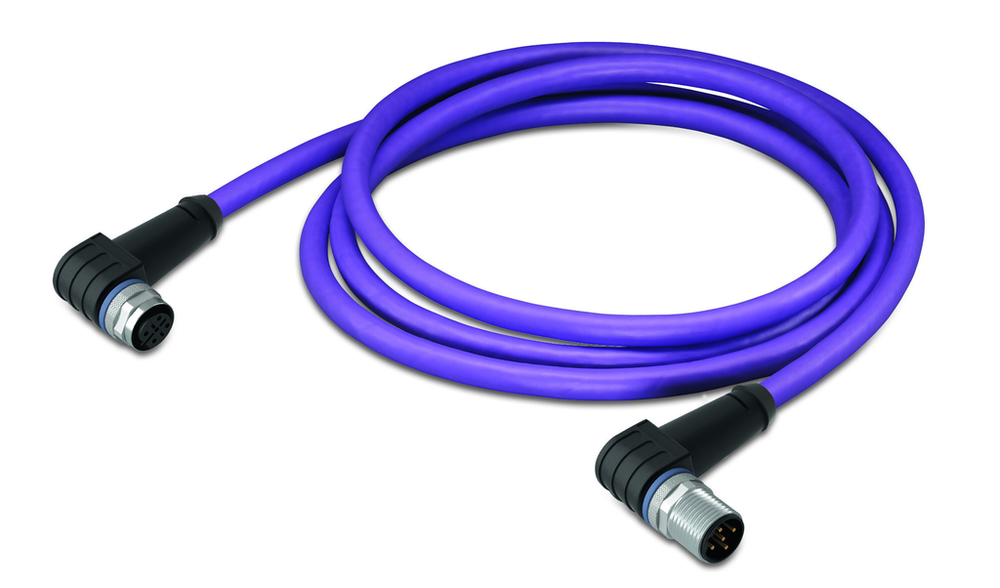

PROFIBUS cable; M12B socket; angled; M12B plug; angled; 5-pole; Length: 0.4 m
WAGO 756-1106/060-004 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85444290900
- GTIN
- 4045454991029
- Packaging type
- Box
Environmental Requirements
- Ambient (operating) temperature (dynamic)
- -25 … +60 °C
- Ambient (operating) temperature (static)
- -50 … +60 °C
- Fire load
- 0.000 MJ
- Pollution degree
- 3/2 per IEC 60664-1
- Protection type
- IP67
Mechanical Data
- Bending cycles
- 1 million
- Bending radius
- > 10 x cable Ø (flexible use); > 5 x cable Ø in drag chain (fixed installation)
- Color
- Violet
- Conductor configuration
- Bare copper wire (19 x 0.15 mm)
- Conductor insulation
- PE (halogen-free); Filler: PP yarn
- Drag chain capability
- Yes
- Housing material
- TPU/TPU, black (~ RAL 9005)
- Sheathed cable diameter
- 7.3 … 7.9 mm
- Shield
- Shielding braid, (approx. 5.90 mm Ø), tinned CU-ETP1, coverage 85 % ± 5 %
- Tightening torque
- 1 Nm
- Type code
- LI02YS-(ST)CB11Y 1X(2X0.34SQMM)
- Weight
- 70.000 g
Specifications
- Product Group Code
- 0023
Technical Data
- Cable connection direction to mating direction
- 90 °
- Cable connection direction to mating direction (2)
- 90 °
- Cable length
- 0.4 m
- Communication/fieldbus
- PROFIBUS
- Conductor resistance
- 55 Ω/km (max.); Loop resistance: 110 Ω/km (max.)
- Connection type
- M12 Socket - M12 plug
- Connector interface coding (cable/adapter) 1 1
- B-coded
- Connector interface coding (cable/adapter) 2 1
- B-coded
- Insulation resistance
- > 2500 MΩ/km
- Operating current
- 4 A
- Operating voltage
- ≤ 300 V
- Pole number
- 5
- Rated surge voltage
- 2 kV
