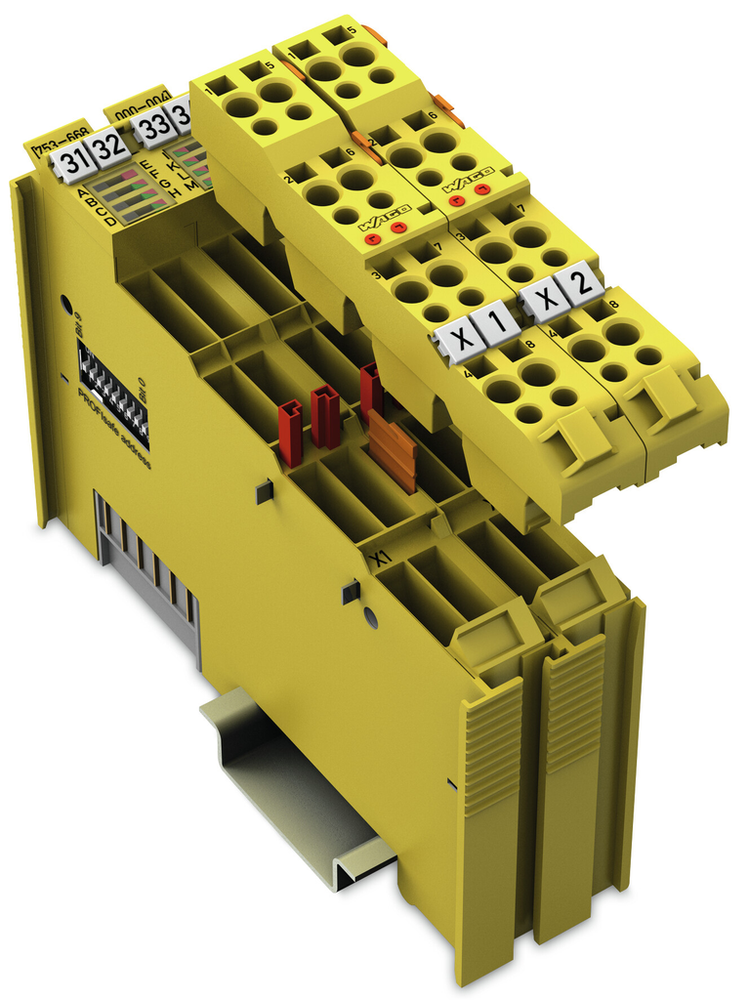

WAGO 753-668/000-004
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Fail-safe 4 channel analog input; 0/4 … 20 mA; Differential input; PROFIsafe
WAGO 753-668/000-004 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4066966345841
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 16 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-4, marine applications, EN 61000-6-3
- EMC immunity to interference
- Per EN 61000-6-2, marine applications, EN 61000-6-7 (FS)
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
Functional Safety
- Achievable safety classes
- SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel)
- Safety standards
- IEC 61508-1 … -7; EN ISO 13849-1; EN 62061
Material Data
- Conformity marking
- CE
- Fire load
- 1.665 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 88.196 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- Pluggable connectors and coding fingers (753 Series) are not included.
Physical Data
- Depth
- 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail
- 61.8 mm / 2.433 inches
- Height
- 100 mm / 3.937 inches
- Width
- 24 mm / 0.945 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Common-mode voltage (max.)
- 60 V
- Configuration options
- PROFIsafe address adjustable via DIP switch or engineering software
- Current carrying capacity
- 40 mA
- Current carrying capacity (power jumper contacts)
- 10 A
- Current consumption (5 V system supply)
- 120 mA
- Current consumption, field supply (module with no external load)
- 40 mA
- Indicators
- LED (E) red, LED (F-H) red/green: Diagnostics; LED (I-M) red/green: Input/output status
- Isolation
- 500 V system/field
- Load impedance
- 300 Ω
- Measurement error, deviation (max.) from the upper-range value
- 0.05 %
- Measurement error (reference temperature)
- 25 °C
- Noise rejection at sampling frequency
- 38 dB
- Number of analog inputs
- 4
- Number of incoming power jumper contacts
- 2
- Number of outgoing power jumper contacts
- 2
- Output current (module)
- 1.5 A
- Output current per channel
- 1.5 A
- Resolution [bit]
- 16 bits
- Sensor connection
- 4 x (2-wire, 3-wire, 4-wire)
- Sensor supply
- Outputs L1 … L4
- Signal characteristics
- Differential
- Signal type
- Current
- Signal type (current)
- 0 … 20 mA; 4 … 20 mA
- Supply voltage (field)
- 24 VSELV/PELV DC (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
- Temperature error (max.) of the upper-range value
- 0.0065 %/K
- Total number of channels (module)
- 4
