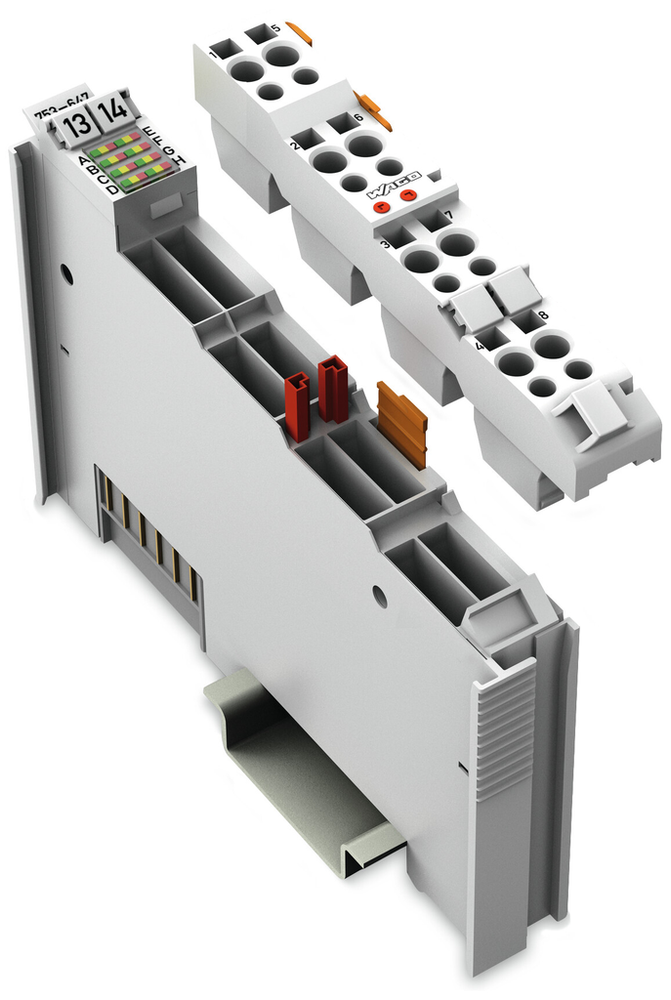

WAGO 753-647
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
DALI Multi-Master
WAGO 753-647 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4050821475712
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 8 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
- EMC immunity to interference
- Per EN 61000-6-2*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Material Data
- Conformity marking
- CE
- Fire load
- 1.046 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 61.400 g
Mechanical Data
- Mounting type
- DIN-35 rail
- Pluggable connector
- Pluggable
Notes
- Note
- The 753 Series Plug is included with delivery.
Physical Data
- Depth
- 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail
- 61.8 mm / 2.433 inches
- Height
- 100 mm / 3.937 inches
- Width
- 12 mm / 0.472 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Commissioning
- Via WAGO-I/O-CHECK
- Current consumption (5 V system supply)
- 85 mA
- Data width
- 24-byte data
- Device-specific
- Current consumption from DALI bus with alternative supply via DALI bus: 10 mA
- Device specification
- DALI-2 Specification: DIN IEC 62386 only in conjunction with 753-620 or 787-2857 Power Supplies
- Guaranteed supply current
- 200 mA
- Indicators
- LED (A-H) green/yellow/red: Easy Mode, TxD, Availability, 1- or 2-Button Operation, Full Mode, RxD, Power On, Latching Function
- Isolation
- 2100 VDC DALI bus/local bus
- Power supply
- DALI: 18 V (external)
- Supply current (max.)
- 250 mA
- Supply voltage (system)
- 5 VDC; via data contacts
- Topology
- Number of control gears/control devices (DALI): 64 control gears + 64 control devices (addressable)
- Transmission channel
- 1
