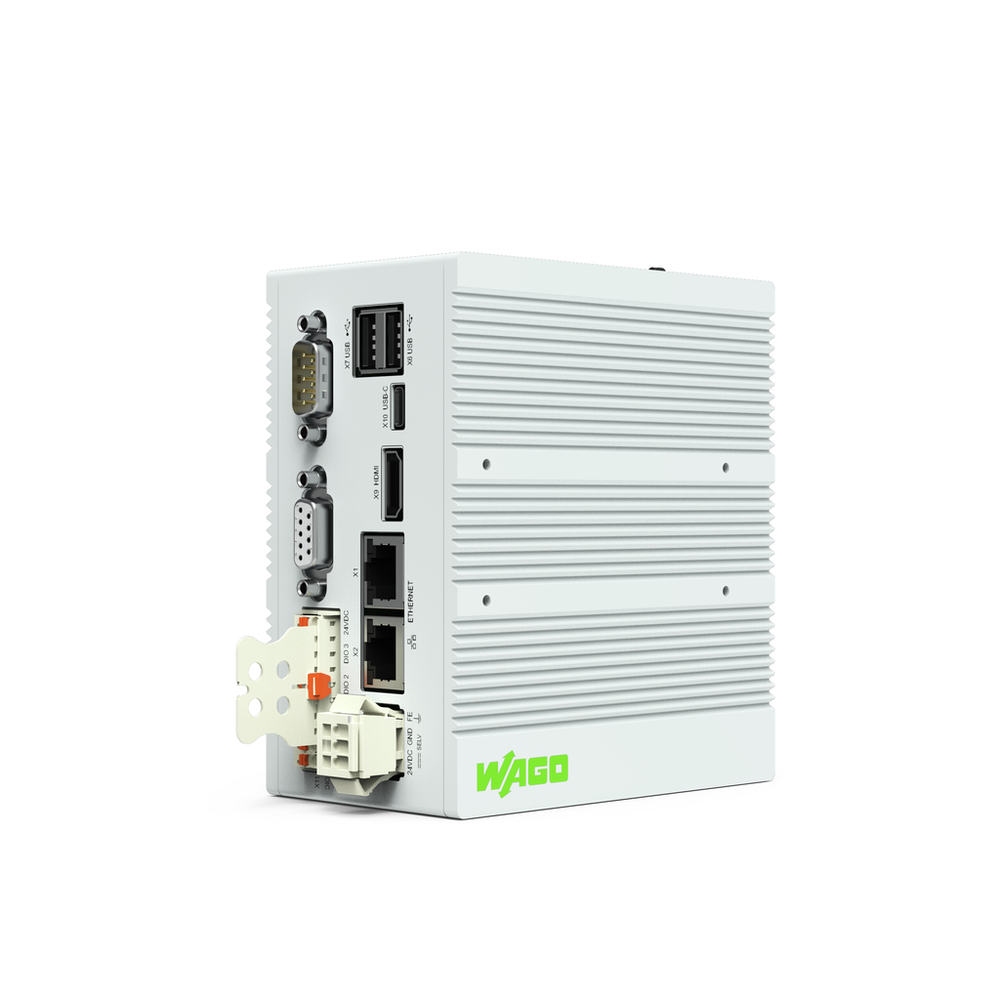

WAGO 752-8303/8000-002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Edge Controller; 2 x ETHERNET, 2 x USB, 1 x USB-C, HDMI, CAN, DI/DO, RS-232/485, Audio; Control
WAGO 752-8303/8000-002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84714100000
- GTIN
- 4066966108996
Connection Data
- Connection technology: communication/fieldbus
- ETHERNET: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; RS-232/-485 interface: 1 x D-sub 9 socket
Environmental Requirements
- Ambient temperature (operation)
- -20 … +60 °C
- Ambient temperature (storage)
- -20 … +80 °C
- Fire load
- 0.000 MJ
- Mounting type
- DIN-35 rail
- Protection type
- IP20
- Relative humidity (without condensation)
- 90 %
Mechanical Data
- Housing material
- Aluminum, powder-coated
- Weight
- 600.000 g
Physical Data
- Depth
- 115 mm / 4.528 inches
- Height
- 123 mm / 4.843 inches
- Width
- 65 mm / 2.559 inches
Specifications
- Product Group Code
- 0027
Technical Data
- Baud rate
- ETHERNET: 10/100 Mbit/s; CAN: 1 MBd
- Baud rate (communication/fieldbus 1)
- 10/100 Mbit/s
- Baud rate (communication/fieldbus 2)
- 1 MBd
- Communication
- Web browser || Web browser (HTML5) || Modbus TCP master/slave || Modbus (UDP), WagoAppPlcModbus Library || Modbus (RTU), WagoAppPlcModbus Library || ETHERNET || EtherNet/IPTM Adapter (slave) || EtherNet/IPTM Scanner || CANopen || EtherCAT® Master || OPC UA Server/Client || OPC UA Pub/Sub (can be installed later) || MQTT || RS-232 serial interface || RS-485 interface || BACnet/IP, requires an additional license || Telecontrol protocols, requires an additional license || MicroBrowser (Visualization of CODESYS V2.3), requires an additional license
- ETHERNET protocols
- DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
- Indicators
- 3-color LED – red, green, blue; 4 x red/green LED
- Input current (max.) (24 V)
- 120 mA
- Interfaces (USB)
- 2 x USB 2.0 socket, type A; 1 x USB OTG socket, type C
- Internal memory (flash)
- 4 GB, eMMC
- Main memory (RAM)
- 2 GB, DDR3 SDRAM
- Non-volatile hardware memory
- 128 KB
- Onboard I/Os
- 4 x DIO, configurable
- Operating power
- 2.9 W, without USB load; 9.4 W, with USB load
- Operating system
- Real-time Linux (with RT-Preempt patch)
- Processor
- ARM® Cortex® A9 Quadcore 1.0 GHz
- Programming environment
- CODESYS V3.5, from firmware release 24 || e!COCKPIT (based on CODESYS V3), up to firmware release 22
- Supply voltage
- 24 VSELV DC (18 … 31.2 V); LPS; with reverse voltage protection
- Visualization
- Web-Visu || Target Visu
