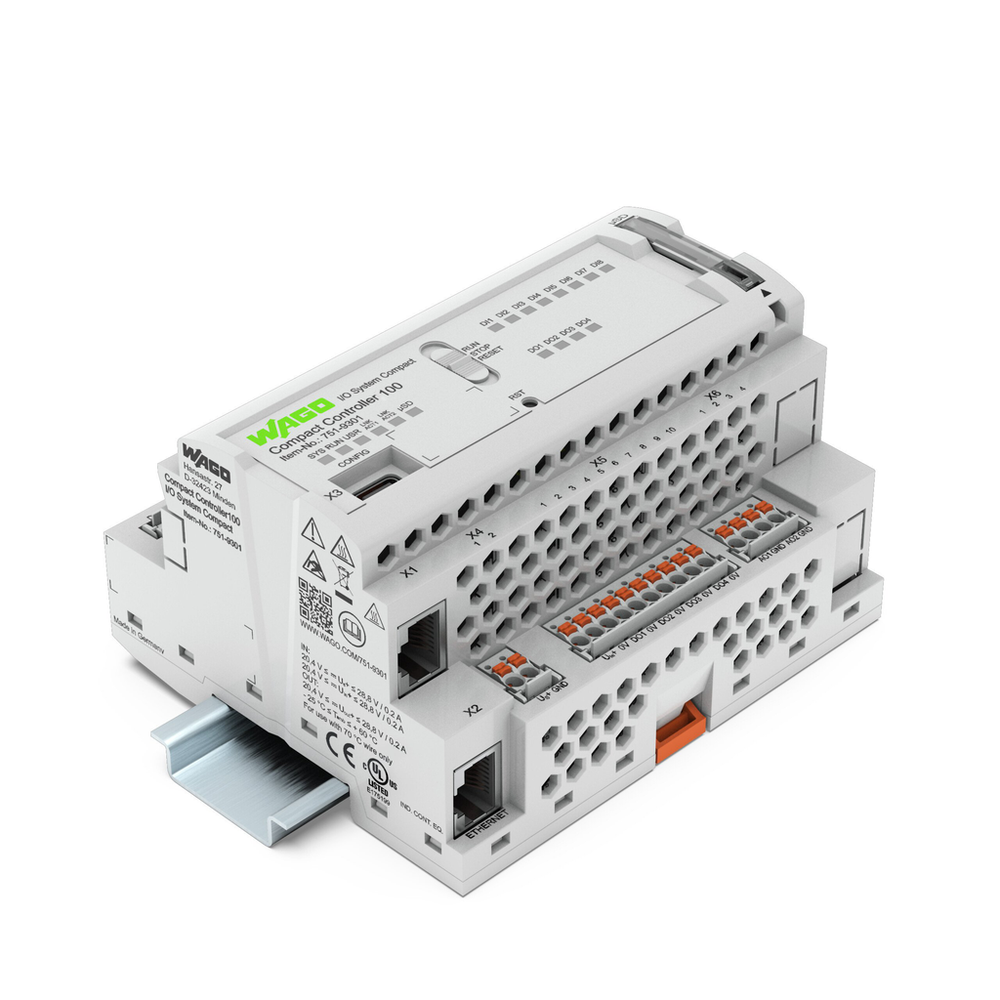

WAGO 751-9301

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371091990
• GTIN
  • 4066966192865

Connection Data

• Connection technology: communication/fieldbus
  • Modbus (TCP, UDP): 2 x RJ-45; RS-485 interface: 1 x Female connector, 4-pole; Push-in CAGE CLAMP®
• Connection technology: field supply
  • 2 x Female connector, 10-pole; Push-in CAGE CLAMP®
• Connection technology: system supply
  • 1 x Female connector, 2-pole; Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 1.5 mm² / 24 … 14 AWG
• Solid conductor
  • 0.2 … 1.5 mm² / 24 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • -25 … +60 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3
• EMC immunity to interference
  • Per EN 61000-6-2
• Fire load
  • 0.000 MJ
• Mounting position
  • Any
• Mounting type
  • DIN-35 rail
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 1g per IEC 60068-2-6

Mechanical Data

• Conformity marking
  • CE; UKCA
• Housing material
  • Polycarbonate, polyamid
• Weight
  • 348.000 g

Physical Data

• Depth from upper-edge of DIN-rail
  • 55 mm / 2.165 inches
• Height
  • 90 mm / 3.543 inches
• Width
  • 108 mm / 4.252 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Baud rate
  • ETHERNET: 10/100 Mbit/s
• Baud rate (communication/fieldbus 1)
  • 10/100 Mbit/s
• Communication
  • Modbus (TCP, UDP) || EtherCAT® Master || EtherNet/IPTM Adapter (slave) || EtherNet/IPTM Scanner || Modbus® RTU || RS-485 interface || MQTT || Telecontrol protocols, requires an additional license
• Configuration options
  • CODESYS V3.5 || ETHERNET Settings || Web-Based Management || WAGOupload || WAGO Solution Builder
• Controls
  • Operating mode switch (RUN, STOP, RESET); reset button
• CPU
  • Cortex A7; 650 MHz
• Current consumption (field) max.
  • 2000 mA
• Current consumption (system) max.
  • 500 mA
• Data memory
  • 128 MB
• ETHERNET protocols
  • DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
• Indicators
  • LED (SYS, RUN), red/green: Status of system; LED (USR) red/green: User programmable status (can be used via CODESYS library); LED (SD) orange: Status of µSD; LED (LNK/ACT) green: Network connection via ports 1 … 2; LED (DI1 … 8) green: Status of inputs; LED (DO1 … 4) green: Status of outputs
• Input characteristic
  • Type 3 (per EN 61131-2)
• Internal memory (flash)
  • 4096 MB
• Isolation
  • 1250 V (DC 1 min., between system and field level)
• Load impedance (voltage output)
  • ≥ 5 kΩ
• Main memory (RAM)
  • 512 MB
• Memory card slot
  • Push-push mechanism
• Non-volatile hardware memory
  • 128 KB
• Non-volatile software memory
  • 128 KB
• Number of analog inputs
  • 2
• Number of analog outputs
  • 2
• Number of digital inputs
  • 8
• Number of digital outputs
  • 4
• Number of measurement inputs
  • 2
• Operating system
  • Real-time Linux (with RT-Preempt patch)
• Output current
  • Short-circuit-protected
• Output current (per channel)
  • 500 mA (DC)
• Program memory
  • 32 MB
• Programming environment
  • CODESYS V3.5 || Node RED
• Programming languages per IEC 61131-3
  • Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD) || Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Resolution of analog inputs
  • 16 bits
• Resolution of analog outputs
  • 12 bits
• Signal type
  • Voltage || Resistance measurement
• Signal type (voltage)
  • 0 … 10 VDC
• Supply voltage (field)
  • 24 VDC (-15 … +20 %); via pluggable connector (picoMAX® 3.5; Push-in CAGE CLAMP® connection)
• Supply voltage (system)
  • 24 VDC (-15 … +20 %); via pluggable connector (picoMAX® 3.5; Push-in CAGE CLAMP® connection)
• Temperature range
  • −60 °C … 350 °C, PT1000, Ni1000
• Transmission medium (communication/fieldbus)
  • ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Type of memory card
  • MicroSD up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Visualization
  • Web-Visu
