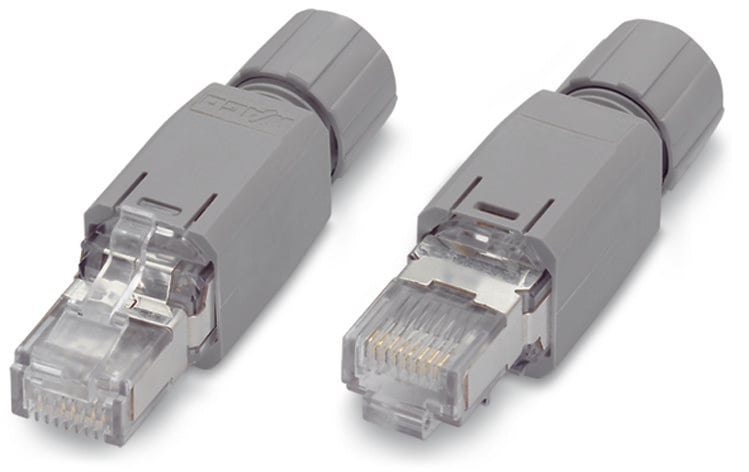

WAGO 750-976
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PROFINET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly
WAGO 750-976 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CH
- Customs tariff number
- 85366990990
- GTIN
- 4045454988173
- Packaging type
- Box
Connection Data
- Connection type 1
- IDC contact
- Solid conductor
- 0.13 … 0.24 mm² / 26/1 … 23/1 AWG
- Stranded conductor 2
- 0.14 … 0.36 mm² / 26/7 … 22/7 AWG
Environmental Requirements
- Ambient temperature (operation)
- -20 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Fire load
- 0.000 MJ
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Standards/specifications
- Basisnorm: IEC 60603-7 RJ-45 Category 5 || CD ISO/IEC 11801: 2002 || EN 50173: 2002
- Vibration resistance
- 4g per IEC 60068-2-6
Mechanical Data
- Connectable sheathed cable diameter
- 4.5 … 8 mm
- Connection requirement (permissible cable type)
- Cat. 5e
- Contact material
- Bronze (CuSn6)
- Contact plating
- > 1.2 µm gold over 1.2 µm nickel
- Housing material
- Plastic
- Mating cycles (max.)
- 1000
- Shield
- Brass (CuZn); hot-dip tinned 3 μm; Shield contact: large surface >180°
- Weight
- 13.400 g
Physical Data
- Depth
- 59 mm
- Height
- 14 mm
- Width
- 14 mm
Specifications
- Product Group Code
- 0015
Technical Data
- Cable connection direction to mating direction
- 0 °
- Code
- PROFINET
- Communication/fieldbus
- PROFINET
- Connection type
- RJ-45 plug
- Contact resistance
- (Wire – IDC) < 1 mΩ; (Strand – IDC) < 5 mΩ
- Insulation resistance
- (100 V) > 1 GΩ
- Pole number
- 8
