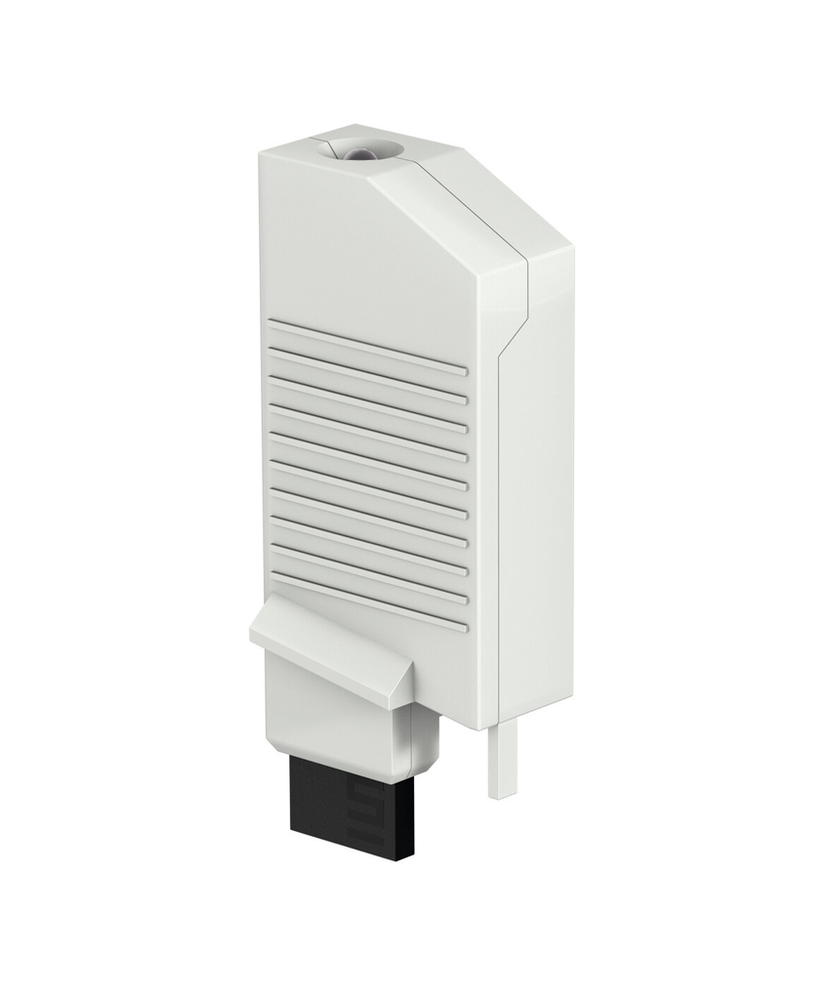

WAGO 750-921
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bluetooth® Adapter
WAGO 750-921 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 84733080000
- GTIN
- 4044918368100
- Packaging type
- Box
Environmental Requirements
- Ambient temperature (operation)
- -20 … +60 °C
- Protection type
- IP20
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 0.000 MJ
- Weight
- 16.600 g
Notes
- Note
- The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual.
Physical Data
- Depth
- 19 mm / 0.748 inches
- Height
- 50 mm / 1.969 inches
- Width
- 15 mm / 0.591 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Antenna
- Integrated
- Coexistence
- Frequency Hopping Spread Spectrum (FHSS) || Adaptive Frequency Hopping (AFH) || Adaptive transmission power with configurable upper limit || Configurable channel blacklist || Supports coexistence optimized inquiry (transmission time ≤ 0.1 s; transmission cycle ≥ 2.9 s)
- Communication type
- Peer-to-peer connection
- Configuration options
- AT commands (e.g., via HyperTerminal)
- Current consumption (5 V system supply)
- 60 mA
- Device specification
- Master or slave
- Frequency band
- ISM band, 2402 … 2483 MHz
- Indicators
- Operating mode
- Radio technology
- Bluetooth® 2.1
- Receiver sensitivity
- -82 dBm
- Security authentication
- Pin code or configurable access list
- Security encryption
- 128-bit encryption
- Supported profiles
- Serial Port Profile (SPP)
- Transmission range
- 20 m in open space (Class 2)
