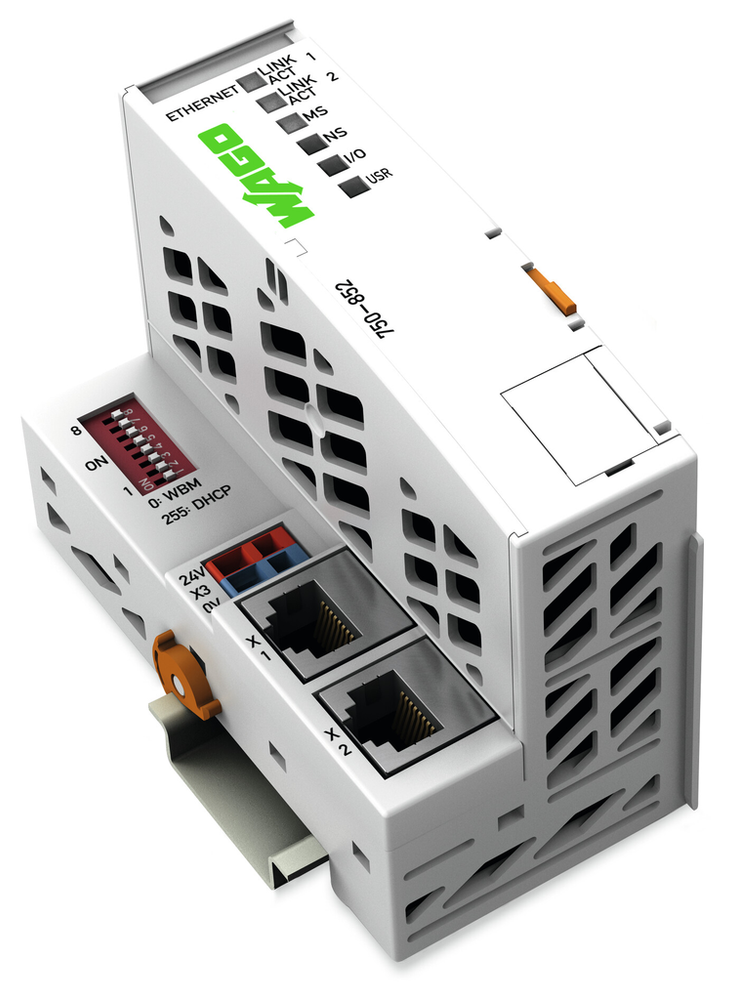

WAGO 750-852
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Controller ETHERNET; 3rd Generation; ECO
WAGO 750-852 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85371091990
- GTIN
- 4050821753940
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45
- Connection technology: device configuration
- 1 x Male connector; 4-pole
- Connection technology: system supply
- 2 x CAGE CLAMP®
- Connection type 1
- System supply
- Fine-stranded conductor
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Solid conductor
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -40 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3, marine applications
- EMC immunity to interference
- Per EN 61000-6-2, marine applications
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Fire load
- 1.420 MJ
- Mounting position
- Any
- Mounting type
- DIN-35 rail
- Operating altitude
- Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Mechanical Data
- Color
- Light gray
- Conformity marking
- CE
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 83.069 g
Physical Data
- Depth
- 96.8 mm / 3.811 inches
- Height
- 71.9 mm / 2.831 inches
- Height from upper-edge of DIN-rail
- 64.7 mm / 2.547 inches
- Width
- 49.5 mm / 1.949 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Baud rate
- 10/100 Mbit/s
- Baud rate (communication/fieldbus 1)
- 10/100 Mbit/s
- Communication
- EtherNet/IPTM || Modbus (TCP, UDP) || ETHERNET
- Configuration options
- WAGO-I/O-CHECK || Web-Based Management
- CPU
- 32 bits
- Current consumption (5 V system supply)
- 400 mA
- Data memory
- 256 KB
- ETHERNET protocols
- HTTP || BootP || DHCP || DNS || SNTP || FTP
- Indicators
- LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user
- Input and output process image (fieldbus) max.
- 1020 words/1020 words
- Input current (typ.) at nominal load (24 V)
- 300 mA
- Isolation
- 500 V system/field
- Non-volatile software memory
- 8 KB
- Number of modules per node (max.)
- 250
- Number of modules without a bus extension (max.)
- 64
- Power supply efficiency (typ.) at nominal load (24 V)
- 90 %
- Program memory
- 512 KB
- Programming environment
- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
- Programming languages per IEC 61131-3
- Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD) || Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
- Supply voltage (system)
- 24 VDC (-25 … +30 %); via pluggable connector
- Total current (system supply)
- 700 mA
- Transmission medium (communication/fieldbus)
- Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
- Transmission performance
- Class D per EN 50173
- Visualization
- Web server
