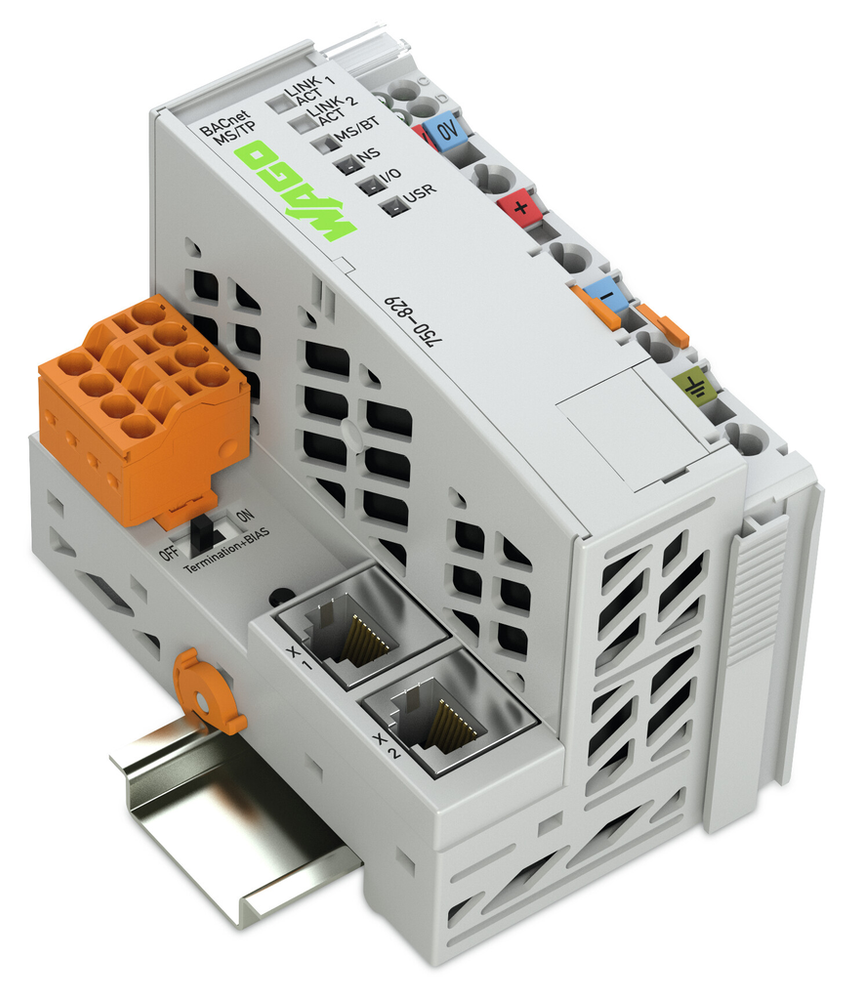

WAGO 750-829

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371091990
• GTIN
  • 4055143235310
• Packaging type
  • Box

Connection Data

• Connection technology: communication/fieldbus
  • BACnet MS/TP: 1 x Male connector; 4-pole; Modbus (TCP, UDP): 2 x RJ-45
• Connection technology: device configuration
  • 1 x Male connector; 4-pole
• Connection technology: field supply
  • 6 x CAGE CLAMP®
• Connection technology: system supply
  • 2 x CAGE CLAMP®
• Connection type 1
  • System/field supply
• Connection type 2
  • Communication/fieldbus: BACnet MS/TP
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor 2
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor 2
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches
• Strip length 2
  • 9 … 10 mm / 0.35 … 0.39 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3
• EMC immunity to interference
  • Per EN 61000-6-2
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load
  • 2.920 MJ
• Mounting position
  • Any
• Mounting type
  • DIN-35 rail
• Operating altitude
  • Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • Per IEC 60068-2-6

Mechanical Data

• Conformity marking
  • CE
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 168.885 g

Notes

• Note
  • The WAGO BACnet Configurator can be downloaded for free at www.wago.com.

Physical Data

• Depth
  • 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail
  • 64.7 mm / 2.547 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 61.5 mm / 2.421 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Baud rate
  • BACnet MS/TP: 38.4 kBd (9600, 19200, 38400*, 57600, 76800, 115200 Bd (per BACnet standard); * Factory setting)
• Bus segment length (max.)
  • BACnet MS/TP: 1200 m; Depends on baud rate/cable (per BACnet standard) 1200 m at ≤ 76800 baud; 1000 m at > 76800 baud; ETHERNET: 100 m
• Communication
  • BACnet MS/TP || Modbus (TCP, UDP) || ETHERNET
• Configuration options
  • WAGO-I/O-CHECK || BACnet Configurator || Web-Based Management
• CPU
  • 32 bits
• Current carrying capacity (power jumper contacts)
  • 10 A
• Current consumption (5 V system supply)
  • 450 mA
• Data memory
  • 1024 KB
• Device-specific
  • BACnet device profile: B-BC (BACnet building controller); BACnet revision: 1.7
• ETHERNET protocols
  • HTTP || BootP || DHCP || DNS || SNTP || FTP || SNMP || SMTP
• Indicators
  • LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS/BT, NS) red/green: Status of node/BACnet, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: Status of system power supply, field supply
• Input and output process image (fieldbus) max.
  • 1020 words/1020 words
• Input current (typ.) at nominal load (24 V)
  • 500 mA
• Isolation
  • 500 V system/supply; BACnet MS/TP: 1500 V (per BACnet standard)
• Memory for fieldbus input variables (max.)
  • 512 bytes
• Memory for fieldbus output variables (max.)
  • 512 bytes
• Network length (max.)
  • Limited by IEEE 802.3 specification
• Non-volatile software memory
  • 32 KB
• Number of modules per node (max.)
  • 99
• Number of modules without a bus extension (max.)
  • 64
• Number of outgoing power jumper contacts
  • 3
• Powerfail RTC buffer
  • 6 days (min.)
• Power supply efficiency (typ.) at nominal load (24 V)
  • 90 %
• Program memory
  • 1024 KB
• Programming environment
  • WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Programming languages per IEC 61131-3
  • Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD) || Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system)
  • 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Total current (system supply)
  • 1700 mA
• Transmission medium (communication/fieldbus)
  • ETHERNET: Twisted pair S-UTP, STP; 100 Ω; Cat. 5e
• Visualization
  • Web-Visu
• WSPCert certification
  • In Vorbereitung
