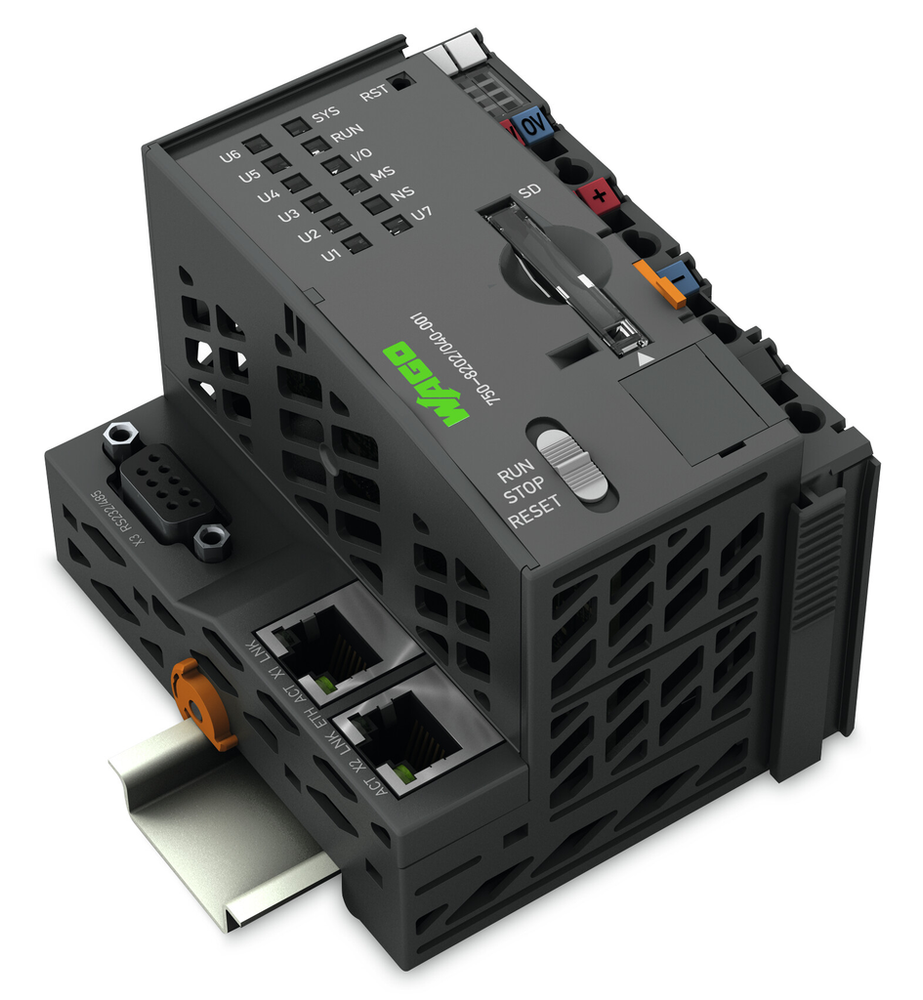

WAGO 750-8202/040-001

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371091990
• GTIN
  • 4055143297943
• Packaging type
  • Box

Connection Data

• Connection technology: communication/fieldbus
  • Modbus (TCP, UDP): 2 x RJ-45; Modbus® RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-101/-103: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 or D-sub 9 socket
• Connection technology: device configuration
  • 1 x Male connector; 4-pole
• Connection technology: field supply
  • 4 x CAGE CLAMP®
• Connection technology: system supply
  • 2 x CAGE CLAMP®
• Connection type 1
  • System/field supply
• Fine-stranded conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Solid conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
• EMC immunity to interference
  • Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load
  • 2.797 MJ
• Mounting position
  • Horizontal (standing/lying); vertical
• Mounting type
  • DIN-35 rail
• Operating altitude
  • Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (with condensation)
  • Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
• Vibration resistance
  • Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Mechanical Data

• Conformity marking
  • CE
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 211.000 g

Physical Data

• Depth
  • 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail
  • 64.7 mm / 2.547 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 78.6 mm / 3.094 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Baud rate
  • ETHERNET: 10/100 Mbit/s
• Baud rate (communication/fieldbus 1)
  • 10/100 Mbit/s
• Communication
  • Modbus (TCP, UDP) || ETHERNET || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus® RTU || RS-232 serial interface || RS-485 interface || MQTT || Telecontrol protocols
• Configuration options
  • e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME library || CODESYS Library
• CPU
  • Cortex A8; 600 MHz
• Current carrying capacity (power jumper contacts)
  • 10 A
• Current consumption (5 V system supply)
  • 510 mA
• Data memory
  • CODESYS V2: 64 MB; CODESYS V3: 60 MB Program and data memory (dynamically distributed)
• Derating
  • Derating (supply voltage): Ambient temperatures under laboratory conditions: (−25 … +30 %); for −40 … +55 °C: 24 V (−25 … +20 %); for +55 … +70 °C: 24 V (−25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
• ETHERNET protocols
  • DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
• Indicators
  • LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply
• Input and output process image (internal) max.
  • 1000 words/1000 words
• Input and output process image (Modbus®) max.
  • CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words
• Input current (typ.) at nominal load (24 V)
  • 550 mA
• Internal memory (flash)
  • 256 MB
• Main memory (RAM)
  • 256 MB
• Memory card slot
  • Push-push mechanism; cover lid (sealable)
• Non-volatile hardware memory
  • 128 KB
• Non-volatile software memory
  • 128 KB || 128 KB
• Number of modules per node (max.)
  • 64
• Number of outgoing power jumper contacts
  • 2
• Operating system
  • Real-time Linux (with RT-Preempt patch)
• Power supply efficiency (typ.) at nominal load (24 V)
  • 90 %
• Program memory
  • CODESYS V2: 16 MB; CODESYS V3: 60 MB (Program and data memory (dynamically distributed))
• Programming environment
  • e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Programming languages per IEC 61131-3
  • Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD) || Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Rated surge voltage
  • 1 kV
• Ratings per
  • IEC/EN 60664-1
• Supply voltage (field)
  • 24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed!
• Supply voltage (system)
  • 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed!
• Telecontrol protocols
  • IEC 60870-5-101/-103/-104 || IEC 61400-25 || IEC 61850-7 || DNP3
• Total current (system supply)
  • 1700 mA
• Transmission medium (communication/fieldbus)
  • ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Type of memory card
  • SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
• Visualization
  • Web-Visu
