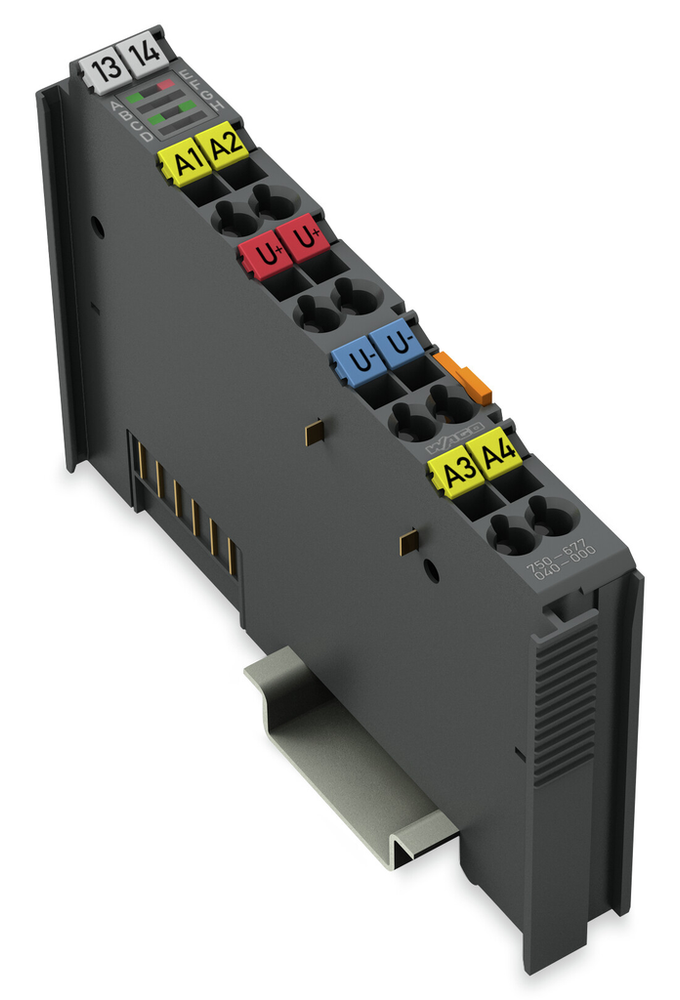

WAGO 750-677/040-000

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371098990
• GTIN
  • 4066966237221

Connection Data

• Connection technology: inputs/outputs
  • 8 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Solid conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
• EMC immunity to interference
  • Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (with condensation)
  • Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
• Vibration resistance
  • Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Material Data

• Conformity marking
  • CE
• Fire load
  • 0.974 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 52.477 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Physical Data

• Depth
  • 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail
  • 60.6 mm / 2.386 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 12 mm / 0.472 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Current carrying capacity (power jumper contacts)
  • 10 A
• Current consumption (5 V system supply)
  • 85 mA
• Current consumption, field supply (module with no external load)
  • 20 mA
• Data width
  • 4 x 16-bit data; 4 x 8-bit control/status
• Derating
  • Derating (supply voltage): Ambient temperatures under laboratory conditions: (−25 … +30 %); for −40 … +55 °C: 24 V (−25 … +20 %); for +55 … +70 °C: 24 V (−25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
• Diagnostics
  • Per modul: undervoltage; per channel pair of a bridge: short circuit after Uout+ or Uout–
• Duty cycle
  • 0 … 100 %; 11-bit resolution
• Indicators
  • LED (A, C, G) green: Function Modul, Channel 1 + 2, Channel 3 + 4; LED (E) red: Error
• Number of digital outputs
  • 4
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Operating mode
  • 1: PWM DC (variable duty cycle); 2: PWM Frq (variable frequency); 3: PWM Frq - Cnt; 4: Pulse Frq - Cnt; 5: PWM Pulse - Dir
• Output current
  • Short-circuit-protected; 0.4 A, short-circuit-protected in bridge mode
• Output current per channel
  • 0.2 A
• Pulse frequency
  • 0 … 20,000 Hz; integer
• Rated surge voltage
  • 1 kV
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed!
• Supply voltage (system)
  • 5 VDC; via data contacts
• Switching frequency (max.)
  • 20 kHz
