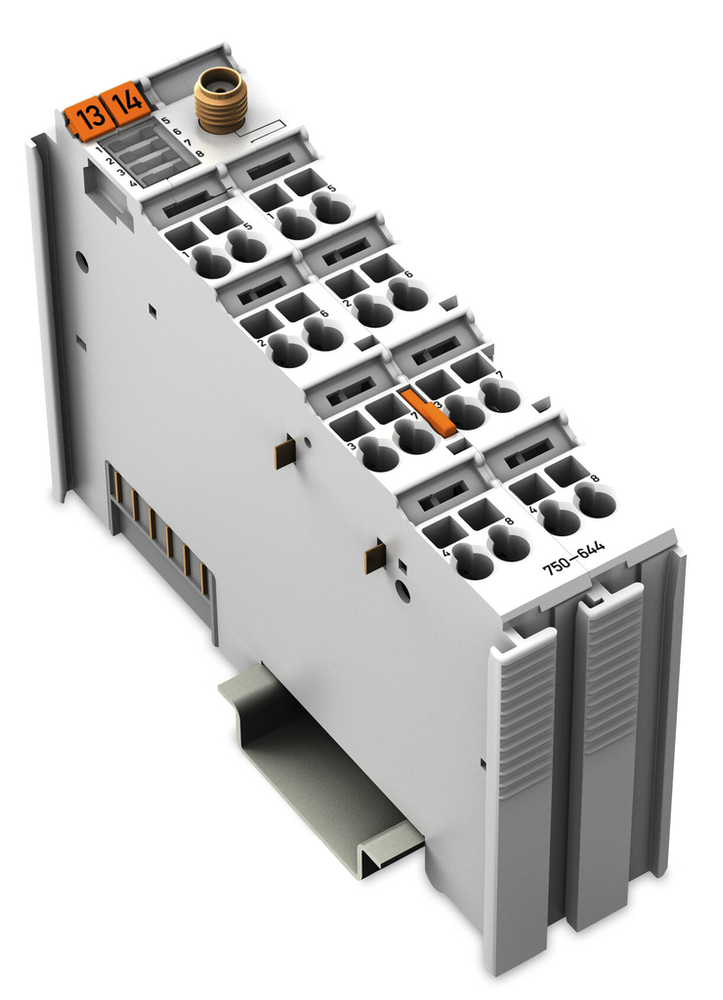

WAGO 750-644
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Bluetooth® RF Transceiver
WAGO 750-644 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4045454549008
- Packaging type
- Box
Connection Data
- Connection technology: antenna
- 1 x SMA socket
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3, EN 61131-2
- EMC immunity to interference
- Per EN 61000-6-2, EN 61131-2
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Any
- Operating altitude
- Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- Per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 0.000 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 91.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 100 mm / 3.937 inches
- Height
- 72 mm / 2.835 inches
- Height from upper-edge of DIN-rail
- 64.8 mm / 2.551 inches
- Width
- 24 mm / 0.945 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Advanced diagnostics
- Via visual indicator and process image: device status, connection status (radio connection quality, signal strength, interference), only via process image: time monitoring
- Coexistence
- AFH and adaptive transmission power
- Current consumption (5 V system supply)
- 20 mA
- Current consumption (typ.)
- 8 mA (Bluetooth®); max. 35 mA
- Data width
- 12, 24, 48 bytes configurable; incl. 1 byte control/status
- Device-specific
- Operating modes: Communication mode with ad-hoc profile for high connectivity and real-time profile for time-sensitive applications, as well as configuration mode
- Frequency band
- License-free, ISM band, 2402 … 2480 MHz
- Isolation
- 500 V antenna/system
- Number of incoming power jumper contacts
- 2
- Number of outgoing power jumper contacts
- 2
- Power supply
- Bluetooth®: 24 VDC, via power jumper contacts
- Profiles
- SPP, PAN
- Radio technology
- Bluetooth® 2.0 + EDR || Bluetooth®
- Receiver sensitivity
- -94 dBm
- Supply voltage (field)
- 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
- Topology
- Piconet (1 master, max. 7 slaves)
- Transmission range
- 1000 m (max.) in an open space, 100 m in buildings (using an external WAGO Antenna, Item No. 758-912)
