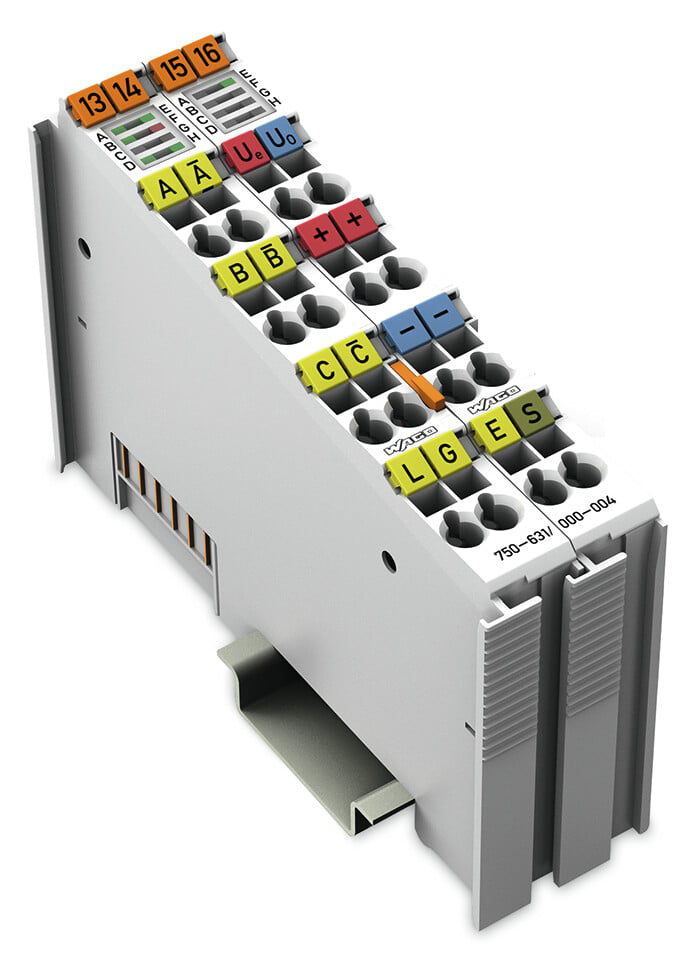

WAGO 750-631/000-010

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4050821209133
• Packaging type
  • Box

Connection Data

• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Protection type
  • IP20
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • Per IEC 60068-2-6

Material Data

• Fire load
  • 0.174 MJ
• Weight
  • 91.800 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Physical Data

• Depth
  • 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail
  • 62.6 mm / 2.465 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 24 mm / 0.945 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Commands
  • Reading, setting, activating
• Counter depth
  • 16 bits
• Current consumption (5 V system supply)
  • 50 mA
• Current consumption, field supply (module with no external load)
  • 10 mA
• Data width
  • 1 x 32-bit data, 1 x 8-bit control/status, 1 x 8 bits reserved
• Encoder connection
  • A, A/, B, B/, C, C/ (RS-422 inputs)
• Isolation
  • 500 V system/field
• Limit frequency
  • 1000 kHz
• Quadrature decoder
  • 4x evaluation
• Supply current (encoder) max.
  • 200 mA
• Supply voltage (system)
  • 5 VDC; via data contacts
• Voltage range for signal (0)
  • UABC = 0 V, UABC/ = 5 V; Latch, gate ≤ 5.0 V; External error U ≥ 5.0 V or open input
• Voltage range for signal (1)
  • UABC = 5 V, UABC/ = 0 V; Latch, gate ≥ 15.0 V; External error U < 0.5 V
• Zero impulse (latch)
  • 16 bits
