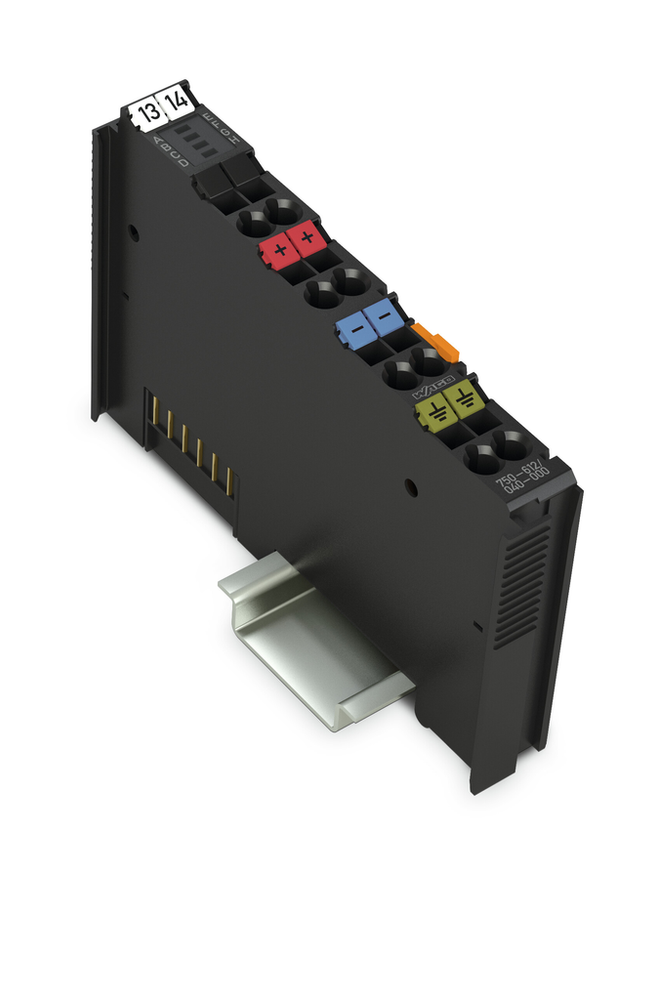

WAGO 750-612/040-000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power Supply; 0 … 230 V AC/DC; Extreme
WAGO 750-612/040-000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389091890
- GTIN
- 4050821460251
- Packaging type
- Box
Connection Data
- Connection technology: field supply
- 6 x CAGE CLAMP®
- Connection type 1
- Field supply
- Fine-stranded conductor
- 0.25 … 2.5 mm² / 24 … 14 AWG
- Solid conductor
- 0.25 … 2.5 mm² / 24 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- -40 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- EMC immunity to interference
- Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 (EN 61010-1)
- Protection type
- IP20
- Relative humidity (with condensation)
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
- Vibration resistance
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Material Data
- Color
- Dark gray
- Conformity marking
- CE
- Fire load
- 0.999 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 43.500 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 67.8 mm / 2.669 inches
- Depth from upper-edge of DIN-rail
- 60.6 mm / 2.386 inches
- Height
- 100 mm / 3.937 inches
- Width
- 12 mm / 0.472 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Current carrying capacity (power jumper contacts)
- 6.3 A
- Number of outgoing power jumper contacts
- 3
- Overvoltage category
- Nominal voltage 230 V: III (EN 61010-1 / up to 2.000 m); II (EN 61010-1 / up to 5.000 m)
- Rated surge voltage
- 5.0 kV (EN 60870-2-1 / Class VW3); 4.0 kV (UL 508); 6.4 kV (EN 61010-1 to 2000 m); 4.0 kV (EN 61010-1 to 5000 m)
- Signal type
- Voltage
- Signal type (voltage)
- 0 … 230 VAC/DC
- Supply voltage (field)
- 230 VAC/DC (-20 … +25 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
