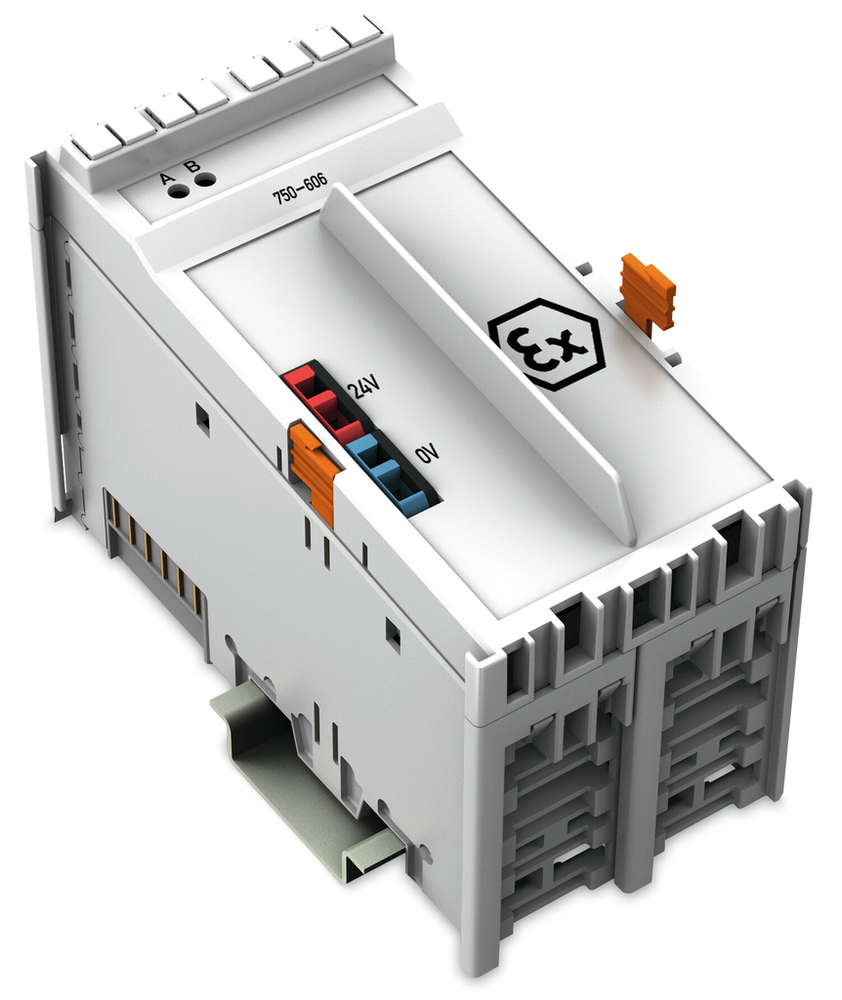

WAGO 750-606
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Power Supply; 24 VDC; Diagnostics; Intrinsically safe
WAGO 750-606 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389091890
- GTIN
- 4045454961909
- Packaging type
- Box
Connection Data
- Connection technology: field supply
- 2 x CAGE CLAMP®
- Connection type 1
- Field supply
- Fine-stranded conductor
- 0.08 … 1.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 1.5 mm² / 28 … 14 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3, marine applications
- EMC immunity to interference
- Per EN 61000-6-2, marine applications
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Explosion Protection
- Ex standard
- EN IEC 60079-0, -7, -11
- Power supply (input)
- Un = 24 VDC (-25 … +30 %); Pmax. = 29 W; Um = 253 V
- Power supply (output)
- Uo = 26.8 V (safe voltage per IEC 60079-11, protection level ia); Un = 24 V ± 0.3 V, In = 1 A
Material Data
- Conformity marking
- CE
- Fire load
- 2.599 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 167.500 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!
Physical Data
- Depth
- 70.9 mm / 2.791 inches
- Depth from upper-edge of DIN-rail
- 63.7 mm / 2.508 inches
- Height
- 100 mm / 3.937 inches
- Width
- 48 mm / 1.89 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Current carrying capacity (power jumper contacts)
- 1 A
- Current consumption (5 V system supply)
- 7.5 mA
- Data width
- 2 bits (input voltage failure, fuse triggered)
- Diagnostics
- Input voltage failure, fuse triggered
- Fuse
- Electronic
- Indicators
- LED (A) green: Status voltage supply: Input; LED (B) green/red: Status voltage supply: Output
- Input voltage (note)
- 24 VDC (−25 % … +30 %)
- Intrinsic safety Ex i
- Yes
- Marking
- ATEX/IECEx: II 3G Ex ec IIC T4 Gc
- Number of outgoing power jumper contacts
- 2
- Power consumption Pmax.
- 29 W
- Power loss Pl
- < 5 W
- Supply voltage (field)
- 24 VDC (-25 … +30 %); (Adjacent Ex i modules are supplied with UO = max. 27.3 V); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
