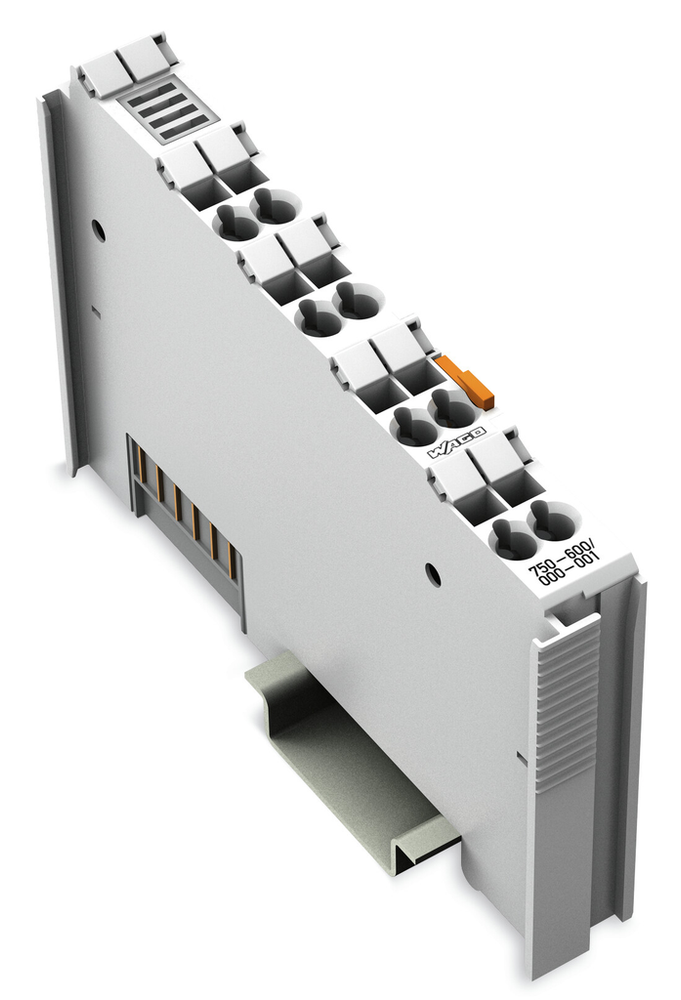

WAGO 750-600/000-001

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389091890
• GTIN
  • 4066966196856

Connection Data

• Connection technology: inputs/outputs
  • 8 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, marine applications
• EMC immunity to interference
  • Per EN 61000-6-2, marine applications
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per EN 60664-1
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 4g per IEC 60068-2-6

Material Data

• Conformity marking
  • CE
• Fire load
  • 0.953 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 49.521 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Physical Data

• Depth
  • 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail
  • 60.6 mm / 2.386 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 12 mm / 0.472 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Current carrying capacity (supply connections)
  • 10 A
• Rated surge voltage
  • 5 kV per EN 60870-2-1 / Class VW3, or 6.4 kV per EN 61010-1
• Supply voltage (system)
  • 5 VDC; via data contacts
• Voltage (potential group)
  • 0 … 230 VAC/DC; Supply via CAGE CLAMP® contacts
