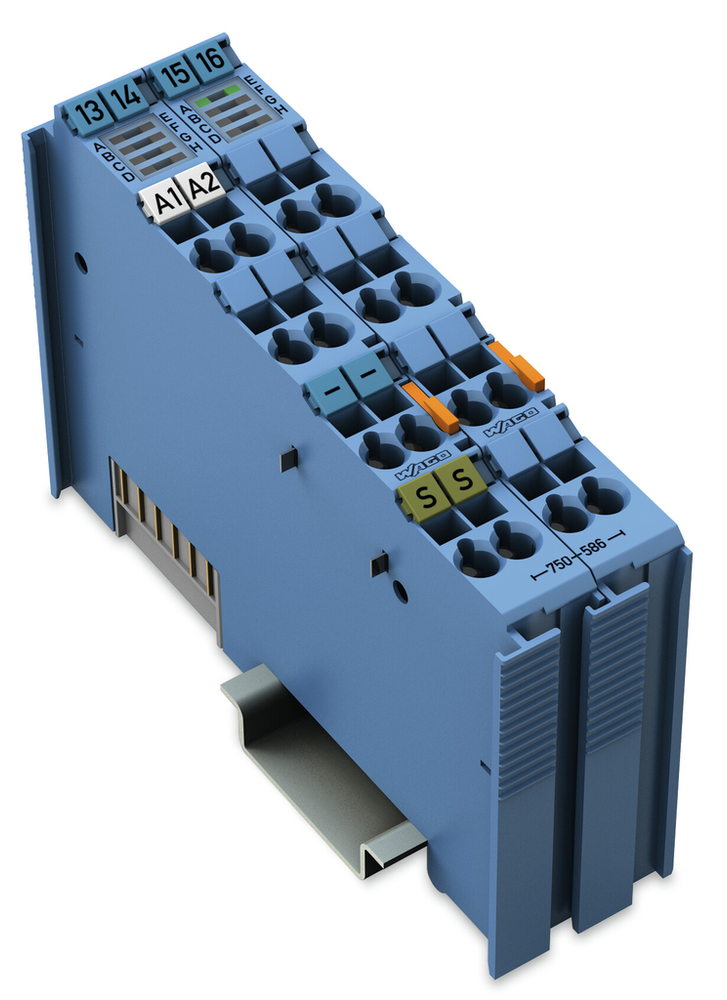

WAGO 750-586

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4050821564782
• Packaging type
  • Box

Connection Data

• Connection technology: inputs/outputs
  • 16 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, marine applications
• EMC immunity to interference
  • Per EN 61000-6-2, marine applications
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 4g per IEC 60068-2-6

Explosion Protection

• Ex standard
  • EN IEC 60079-0, -7, -11
• Reactances Ex ia I
  • Lo = 110 mH; Co = 3.5 µF
• Reactances Ex ia IIA
  • Lo = 90 mH; Co = 2.2 μF
• Reactances Ex ia IIB
  • Lo = 56 mH; Co = 680 nF
• Reactances Ex ia IIC
  • Lo = 11 mH; Co = 88 nF
• Reactances (note)
  • Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo)
• Safety-relevant data (circuit)
  • Uo = 27.3 V; Io = 57.5 mA; Po = 392 mW; linear characteristic curve

Material Data

• Conformity marking
  • CE
• Fire load
  • 2.297 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 94.687 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • The analog output module must only be operated with a 24 VDC Ex i power supply!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Physical Data

• Depth
  • 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail
  • 60.6 mm / 2.386 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 24 mm / 0.945 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 2 x (2-wire)
• Conversion time (typ.)
  • 2 ms
• Current consumption (5 V system supply)
  • 21 mA
• Current consumption, field supply (module with no external load)
  • 19 mA
• Data width
  • 2 x 16-bit data
• Indicators
  • LED (A, E) green: Function AO 1, AO 2
• Intrinsic safety Ex i
  • Yes
• Isolation
  • 300 VAC system/field
• Linearity
  • ± 2 LSB
• Load impedance (current output)
  • ≤ 500 Ω
• Marking
  • ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
• Number of analog outputs
  • 2
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Output error, deviation (max.) of the upper-range value
  • 0.2 %
• Output error, reference temperature
  • 25 °C
• Power consumption Pmax.
  • 1.5 W
• Power loss Pl
  • 0.9 W
• Resolution [bit]
  • 12 bits
• Signal characteristics
  • Single-ended
• Signal type
  • Current
• Signal type (current)
  • 4 … 20 mADC
• Supply voltage (field)
  • 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system)
  • 5 VDC; via data contacts
• Temperature error (max.) of the output range value
  • 0.01 %/K
• Total number of channels (module)
  • 2
