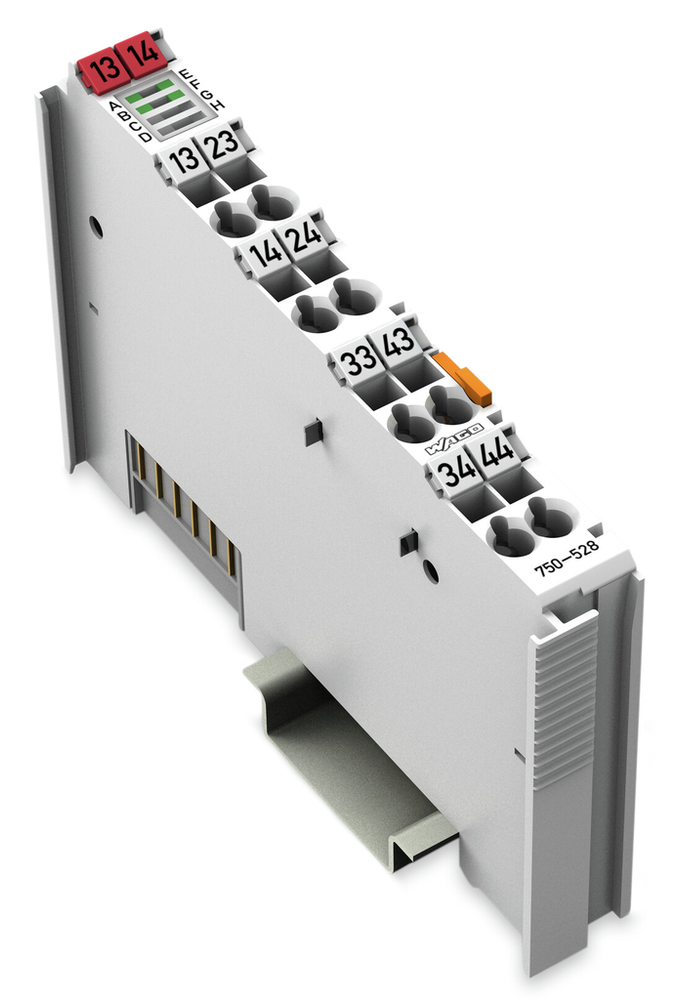

WAGO 750-528

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85371098990
• GTIN
  • 4066966082524
• Packaging type
  • Box

Connection Data

• Connection technology: inputs/outputs
  • 8 x CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, -4; marine applications
• EMC immunity to interference
  • Per EN 61000-6-1, -2; marine applications
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Protection class
  • III
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 4g per IEC 60068-2-6

Material Data

• Conformity marking
  • CE
• Fire load
  • 0.967 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 53.999 g

Mechanical Data

• Mounting type
  • DIN-35 rail
• Pluggable connector
  • Fixed

Physical Data

• Depth
  • 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail
  • 62.6 mm / 2.465 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 12 mm / 0.472 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Actuator connection
  • 4 x (2-wire)
• Contact resistance (max.)
  • 0.035 Ω
• Contact resistance (typ.)
  • 0.02 Ω
• Current carrying capacity (power jumper contacts)
  • 10 A
• Current consumption (5 V system supply)
  • 57 mA
• Current consumption, field supply (module with no external load)
  • 0 mA
• Delay time T_off from 1 to 0
  • 20000 µs
• Delay time T_on from 0 to 1
  • 1000 µs
• Indicators
  • LED (A, B, E, F) green: Status DO 1 … DO 4
• Inductive load switch-off energy dissipation (max.)
  • 0.18 J
• Isolation
  • 500 V system/field or channel/channel
• Load type
  • Resistive; inductive (Limit induction voltage peaks externally.)
• Number of digital outputs
  • 4
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Output characteristic
  • High-side switching
• Output current
  • Requires external fuses
• Output current (module)
  • 8 A
• Output current per channel
  • 2 A
• Output data width (internal) max.
  • 4 bits
• Overvoltage category
  • II
• Signal type
  • Digital
• Signal type (voltage)
  • 30 VAC/DC
• Supply voltage (field)
  • 30 VSELV AC/DC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system)
  • 5 VDC; via data contacts
• Switching frequency (max.)
  • 1 Hz
• Total number of channels (module)
  • 4
