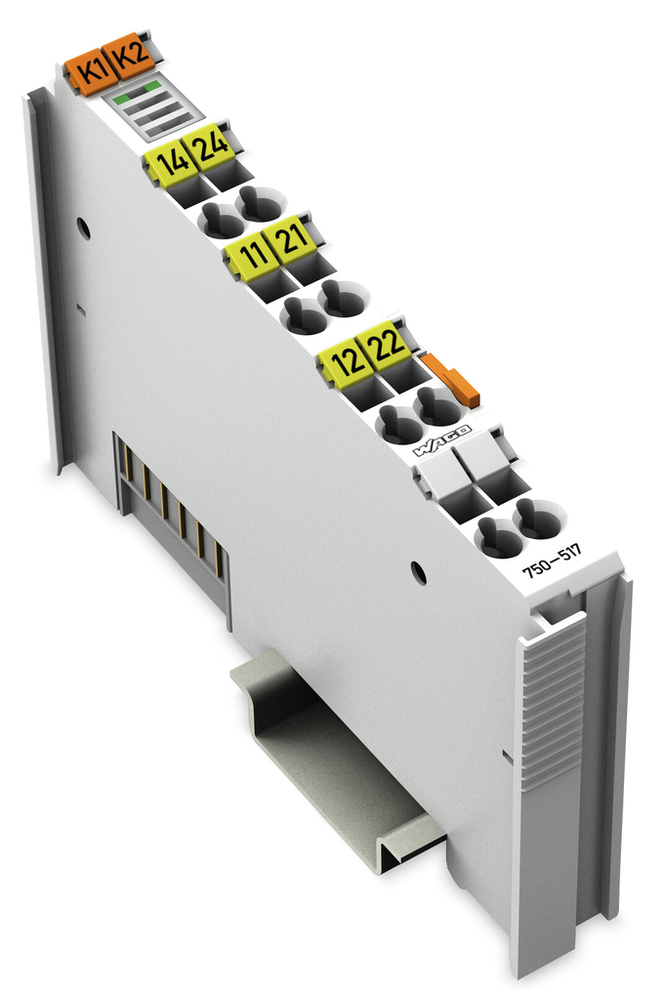

WAGO 750-517
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2-channel relay output; AC 250 V; 1 A; Potential-free; 2 changeover contacts
WAGO 750-517 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85371098990
- GTIN
- 4045454393519
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 8 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-4, marine applications
- EMC immunity to interference
- Per EN 61000-6-2, marine applications
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Contact material
- Ag alloy
- Fire load
- 1.020 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 52.363 g
Mechanical Data
- Mounting type
- DIN-35 rail
- Pluggable connector
- Fixed
Physical Data
- Depth
- 67.8 mm / 2.669 inches
- Depth from upper-edge of DIN-rail
- 60.6 mm / 2.386 inches
- Height
- 100 mm / 3.937 inches
- Width
- 12 mm / 0.472 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Actuator connection
- 2 x (1-wire)
- Current consumption (5 V system supply)
- 90 mA
- Drop-out time (max.)
- 4 ms
- Electrical switching operations (min.) (at max. resistive load)
- 1 x 10⁶ switching operations
- Indicators
- LED (A, E) green: Status relay 1, relay 2
- Isolation
- 1500 V (system/field)
- Load type of switching frequency
- Nominal load
- Mechanical switching operations (min.) (at max. resistive load)
- 5 x 10⁶ switching operations
- Number of digital outputs
- 2
- Output characteristic
- Potential-free
- Output circuit design
- 2 changeover contacts || Relay
- Output data width (internal) max.
- 2 bits
- Pull-in time (max.)
- 8 ms
- Signal type
- Digital
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 1 A
- Switching current (min.)
- 100 mA
- Switching current (note)
- 1 A at 250 VAC and 40 VDC; 0.15 A at 300 VDC
- Switching frequency (max.)
- 0.1 Hz; Nominal load
- Switching voltage (max.)
- 250 VAC, 300 VDC
- Switching voltage (min.)
- 12 V
- Total number of channels (module)
- 2
