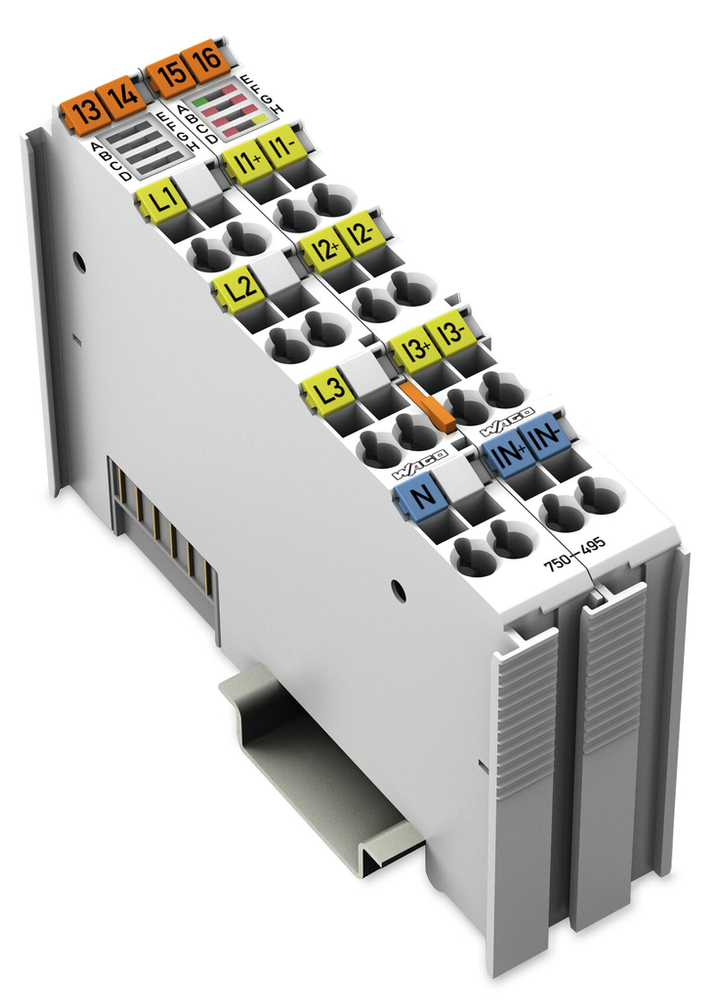

WAGO 750-495
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
3-Phase Power Measurement; 690 VAC, 1 A
WAGO 750-495 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4050821548256
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 16 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3
- EMC immunity to interference
- Per EN 61000-6-2
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 2.001 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 90.700 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 67.8 mm / 2.669 inches
- Depth from upper-edge of DIN-rail
- 60.6 mm / 2.386 inches
- Height
- 100 mm / 3.937 inches
- Width
- 24 mm / 0.945 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Calculated values
- Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
- Configuration options
- WAGO-I/O-CHECK || CODESYS Library || e!COCKPIT
- Current consumption (5 V system supply)
- 100 mA
- Current path input resistance (typ.)
- 22 mΩ
- Data width
- 2 x 128-bit data; 2 x 64-bit control/status
- Frequency range (harmonics analysis)
- 0 … 3300 Hz
- Frequency range (mains frequency)
- 45 … 65 Hz
- Indicators
- LED (A) green: Communication; LED (B-G) red: Error L1, Display: Override in current measurement path, Display: Undervoltage in voltage measurement path, Error L2, Error L3, Display: Override in voltage measurement path; LED (H) yellow: Interchange in phase sequence L1-L2-L3
- Isolation
- 6 kV system/field
- Limit frequency
- 15.9 kHz
- Measurement components
- Evaluating
- Measurement current (max.)
- 1 A
- Measurement cycle time
- Adjustable for arithmetic mean value, Min_Max_Values
- Measurement error, deviation (max.) from the upper-range value
- 0.5 %
- Measurement error (reference temperature)
- 25 °C
- Measurement method
- True RMS measurement
- Number of measurement inputs
- 7 (3 voltage measurement inputs, 4 differential current measurement inputs)
- Rated surge voltage
- 6 kV
- Rated voltage
- VLN = 400 V AC; VLL = 690 V AC
- Reference for measurement error
- AC current/voltage
- Resolution [bit]
- 24 bits
- Signal form
- Any periodic signals (considering the threshold frequencies)
- Signal type
- Power measurement
- Supply voltage (system)
- 5 VDC; via data contacts
- Voltage path input resistance (typ.)
- 1429 kΩ
