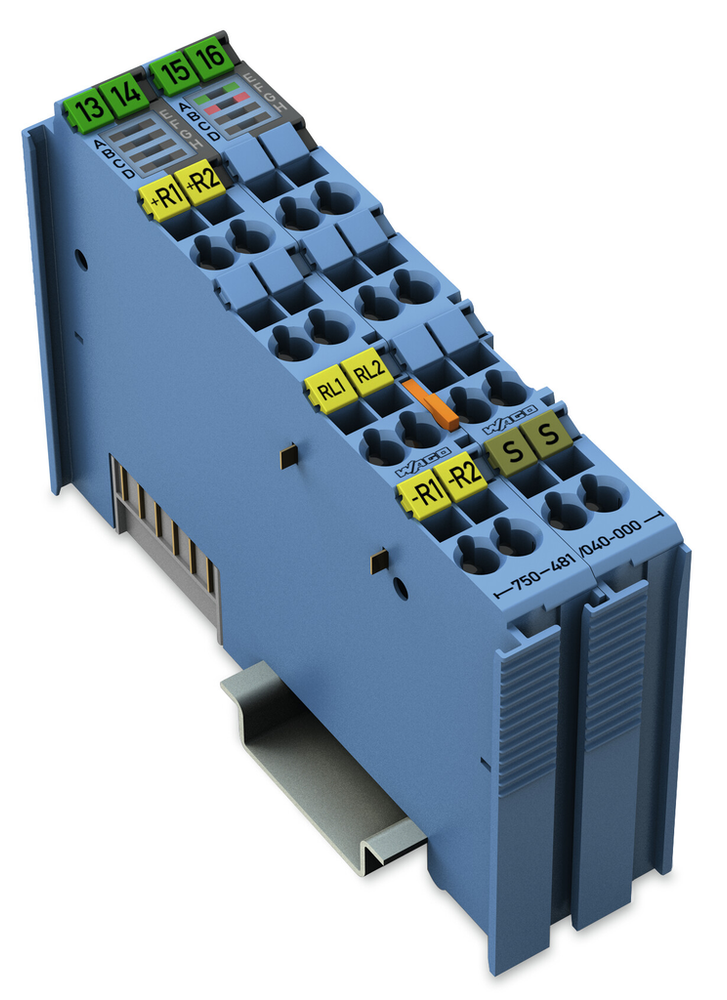

WAGO 750-481/040-000

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4055143649445
• Packaging type
  • Box

Connection Data

• Connection technology: inputs/outputs
  • 16 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Solid conductor
  • 0.25 … 2.5 mm² / 24 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3
• EMC immunity to interference
  • Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (with condensation)
  • Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 61373
• Vibration resistance
  • Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3

Explosion Protection

• Ex standard
  • EN/IEC 60079-0, -7, -11
• Reactances Ex ia I
  • Lo = 100 mH; Co = 1000 µF
• Reactances Ex ia IIA
  • Lo = 100 mH; Co = 1000 µF
• Reactances Ex ia IIB
  • Lo = 100 mH; Co = 240 µF
• Reactances Ex ia IIC
  • Lo = 100 mH; Co = 13.5 µF
• Reactances (note)
  • Reactances without accounting for the concurrence of capacitance (Co) and inductance (Lo)
• Safety-relevant data (circuit)
  • Uo = 7.2 V; Io = 5.8 mA; Po = 10.5 mW; linear characteristic curve

Material Data

• Color
  • Blue
• Conformity marking
  • CE
• Fire load
  • 2.031 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 90.600 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • The analog input module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals!

Physical Data

• Depth
  • 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail
  • 60.6 mm / 2.386 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 24 mm / 0.945 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Conversion time
  • 150 … 500 ms (per channel)
• Conversion time (typ.)
  • 325 ms
• Current carrying capacity (power jumper contacts)
  • 1 A
• Current consumption (5 V system supply)
  • 25 mA
• Current consumption, field supply (module with no external load)
  • 12 mA
• Data width
  • 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Dielectric strength
  • 510 VAC/775 VDC; per EN 60870-2-1
• Indicators
  • LED (A, E) green: Function AI 1, AI 2; LED (B, F) red: Error AI 1, AI 2
• Intrinsic safety Ex i
  • Yes
• Isolation
  • 300 VAC system/field
• Marking
  • ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
• Measurement error, deviation (max.) from the upper-range value
  • 0.2 %
• Measurement error (reference temperature)
  • 25 °C
• Measuring current (typ.)
  • < 0.5 mA
• Number of analog inputs
  • 2
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Power consumption Pmax.
  • 0.45 W
• Power loss Pl
  • 0.45 W
• Rated surge voltage
  • 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11)
• Resolution (over entire range)
  • 0.1 °C, 0.1 Ω, 0.0049 %
• Sensor connection
  • 2 x (2-wire, 3-wire)
• Sensor types
  • Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000; Resistors: 1.2 kΩ, 5 kΩ; Potentiometer setting 0 … 100 %: 1k2, 5k0
• Signal type
  • Resistance measurement || Potentiometer positions
• Signal type (configurable)
  • Yes
• Supply voltage (field)
  • 24 VDC; (Ex i XTR power supply: UO = max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system)
  • 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value
  • 0.01 %/K
• Temperature range
  • −200 … +850 °C (Pt), −60 … +250 °C (Ni), −80 … +320 °C (Ni120)
• Total number of channels (module)
  • 2
