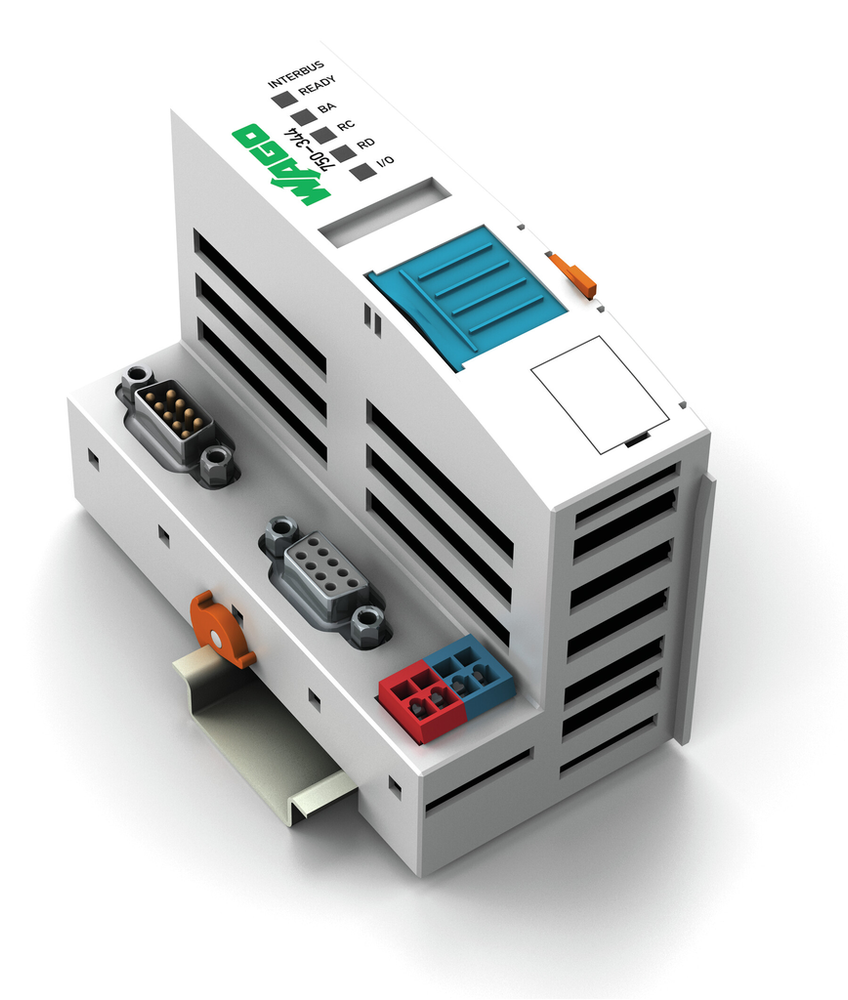

WAGO 750-344
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Fieldbus Coupler INTERBUS; 500 kbit/s; ECO
WAGO 750-344 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85176200000
- GTIN
- 4017332790352
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- INTERBUS: 1 x D-sub 9 plug/socket
- Connection technology: device configuration
- 1 x Male connector; 4-pole
- Connection technology: system supply
- 4 x CAGE CLAMP®
- Connection type 1
- System supply
- Fine-stranded conductor
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Note (conductor cross-section)
- 14 AWG: THHN, THWN
- Solid conductor
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-4
- EMC immunity to interference
- Per EN 61000-6-2
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- Per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 3.152 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 115.500 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 71.9 mm / 2.831 inches
- Depth from upper-edge of DIN-rail
- 64.7 mm / 2.547 inches
- Height
- 96.8 mm / 3.811 inches
- Width
- 49.5 mm / 1.949 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Baud rate
- 500 kBd
- Bus segment length (max.)
- 400 m
- Communication
- INTERBUS
- Current consumption (5 V system supply)
- 350 mA
- Input and output process image (fieldbus) max.
- 20 bytes/20 bytes
- Input current (typ.) at nominal load (24 V)
- 260 mA
- Number of fieldbus nodes on master (max.)
- 256
- Number of I/O points
- 4096
- Number of modules per node (max.)
- 64
- Power supply efficiency (typ.) at nominal load (24 V)
- 80 %
- Standard
- EN 50254
- Supply voltage (system)
- 24 VDC (-15 … +20 %); via pluggable connector
- Total current (system supply)
- 650 mA
- Transmission medium
- Certified Cu cable
- Transmission time
- 1.43 ms (10 couplers; each 32 digital I/O)
