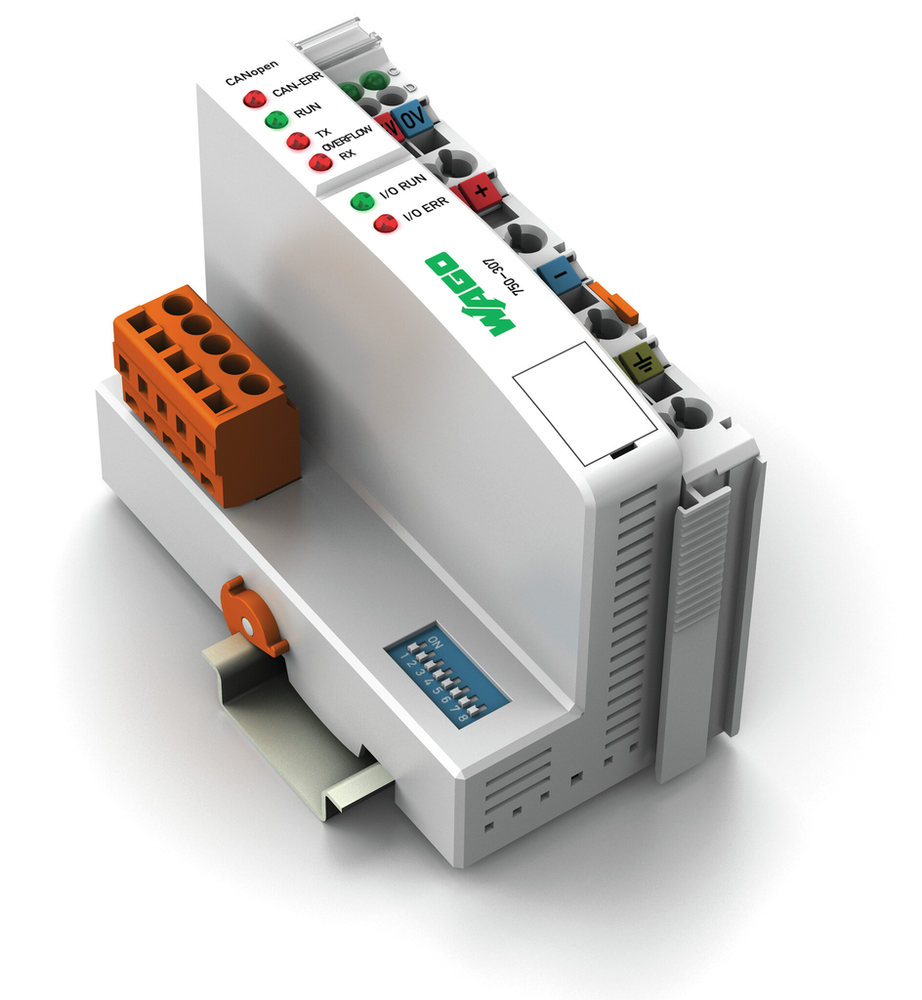

WAGO 750-307
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Fieldbus Coupler CANopen
WAGO 750-307 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85176200000
- GTIN
- 4045454672263
- Packaging type
- Box
Connection Data
- Connection technology: communication/fieldbus
- CANopen: 1 x Male connector; 5-pole
- Connection technology: device configuration
- 1 x Male connector; 4-pole
- Connection technology: field supply
- 6 x CAGE CLAMP®
- Connection technology: system supply
- 2 x CAGE CLAMP®
- Connection type 1
- System/field supply
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-4
- EMC immunity to interference
- Per EN 61000-6-2
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- Per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 5.228 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 200.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- For new installations, please consider the 750-337 Fieldbus Coupler with extended functionality.Note: Configuration files required (EDS)!
Physical Data
- Depth
- 71.1 mm / 2.799 inches
- Depth from upper-edge of DIN-rail
- 63.9 mm / 2.516 inches
- Height
- 100 mm / 3.937 inches
- Width
- 50.5 mm / 1.988 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Baud rate
- 10 kBd … 1 MBd
- Bus segment length (max.)
- 1000 m
- COB ID distribution
- SDO, standard
- Communication
- CANopen
- Communication profile
- DS-301 V3.0
- Current carrying capacity (power jumper contacts)
- 10 A
- Current consumption (5 V system supply)
- 350 mA
- Device profile
- DS-401 V1.4
- Input and output process image (fieldbus) max.
- 512 bytes/512 bytes
- Input current (typ.) at nominal load (24 V)
- 500 mA
- Isolation
- 500 V system/field
- Node ID distribution
- DIP switch
- Number of fieldbus nodes on master (max.)
- 110
- Number of modules per node (max.)
- 64
- Number of outgoing power jumper contacts
- 3
- Number of PDOs
- 5 Tx / 5 Rx
- Number of SDOs
- 2 SDO servers
- Other CANopen features
- NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding
- Power supply efficiency (typ.) at nominal load (24 V)
- 87 %
- Supply voltage (field)
- 24 VDC (-15 … +20 %); via power jumper contacts
- Supply voltage (system)
- 24 VDC (-15 … +20 %); via pluggable connector (CAGE CLAMP® connection)
- Total current (system supply)
- 1650 mA
- Transmission medium
- Shielded Cu cable 3 x 0.25 mm²
