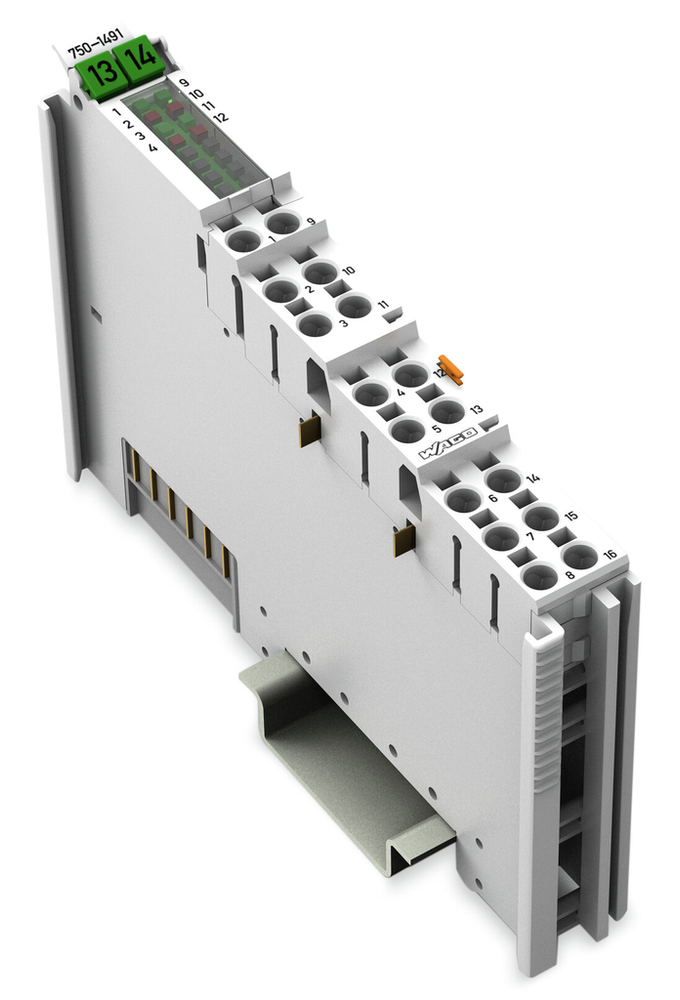

WAGO 750-1491
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2-channel analog input; Resistor bridges (strain gauge)
WAGO 750-1491 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4066966116120
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 16 x Push-in CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid conductor
- 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3
- EMC immunity to interference
- Per EN 61000-6-2
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
Material Data
- Conformity marking
- CE
- Fire load
- 0.837 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 44.887 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail
- 61.8 mm / 2.433 inches
- Height
- 100 mm / 3.937 inches
- Width
- 12 mm / 0.472 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Conversion time
- 10 ms (min.)
- Current consumption (5 V system supply)
- 70 mA
- Current consumption (system and sensor)
- 200 mA
- Data width
- 4 x 16-bit data; 4 x 8-bit control/status (optional)
- Indicators
- LED (1, 3, 9, 11) green: Function UD, Uref; LED (2, 4, 10, 12) red: Error UD, Uref
- Internal resistance
- > 200 kΩ (Uref), > 1.4 MΩ (Ud)
- Isolation
- Per UL 61010-2-201: 1.2 kVDC system/channel and channel/channel
- Measurement error (25 °C)
- UD: ±30 µV; Uref: ±0.05 % of the upper-range value
- Measurement error over entire temperature range
- ±0.2 % of the upper-range value; with user calibration up to ±0.05 %
- Number of analog inputs
- 2
- Resolution [bit]
- 16 bits
- Signal type
- Resistor bridge (strain gauge)
- Signal voltage UD
- ±15 mV; ±30 mV; ±60 mV; ±120 mV; ±240 mV; ±360 mV
- Signal voltage Uref
- Internal +5 V; external ±5 V; ±10 V; ±15 V
- Supply voltage (sensor)
- 5 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
- Total number of channels (module)
- 2
