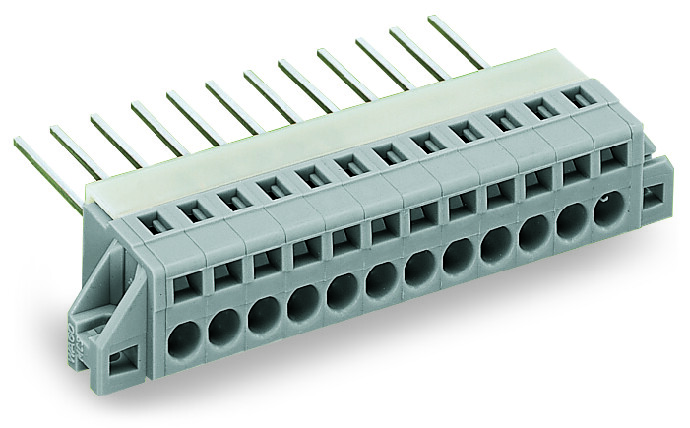

WAGO 731-134
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Through-panel PCB terminal strip; wire-wrap pin 1 x 1 mm; 4-pole; pin spacing 5 mm / 0.197 in; for flush-mounting; gray
WAGO 731-134 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4044918269803
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 1.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 2.5 mm²
- Pole number
- 4
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Connection 2
- Connection technology 2
- Wire-wrap pin
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
- Processing temperature
- -35 … +60 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.368 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 6.800 g
Mechanical Data
- Housing sheet thickness
- 1.5 … 1.5 mm / 0.059 … 0.059 inches
- Mounting type
- Mounting flange || Feed-through mounting || Panel mounting
Notes
- Variants:
- Other pole numbers || Other colors || Direct marking || Versions without mounting flanges || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Physical Data
- Depth
- 15.5 mm / 0.61 inches
- Height
- 14.3 mm / 0.563 inches
- Pin spacing
- 5 mm / 0.197 inches
- Width
- 35.2 mm / 1.386 inches
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 5 A
- Rated voltage CSA (Use Group B)
- 300 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 320 V
- Rated current
- 5 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 5 A
- Rated current UL (Use Group C)
- 5 A
- Rated current UL (Use Group D)
- 5 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group C)
- 150 V
- Rated voltage UL (Use Group D)
- 300 V
Specifications
- Product Group Code
- 0003
