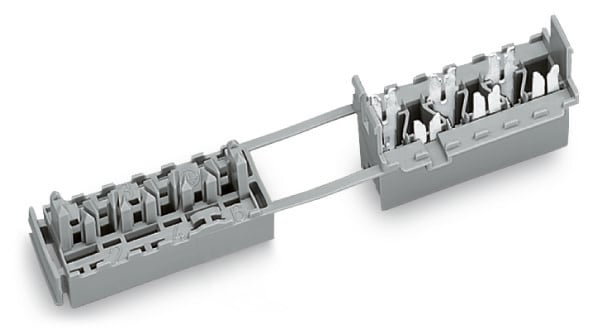

WAGO 730-106
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Socket; 6-pole; gray
WAGO 730-106 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4044918253444
- Packaging type
- Box
Connection 1
- Connection technology
- IDC connection
- Fine-stranded conductor
- 0.75 … 1.5 mm² / 18 … 16 AWG
- Pole number
- 6
Environmental Requirements
- Limit temperature range
- -60 … +85 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Gray
- Contact material
- Brass
- Contact plating
- Tin
- Fire load
- 0.310 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 12.300 g
Mechanical Data
- Variable coding
- No
Physical Data
- Depth
- 30 mm / 1.181 inches
- Height
- 16 mm / 0.63 inches
- Width
- 43 mm / 1.693 inches
Plug-In Connection
- Connector (connection type)
- For conductor
- Contact type (pluggable connector)
- Female connector/socket
- Mismating protection
- No
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group C)
- 10 A
- Rated voltage CSA (Use Group C)
- 600 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 1000 V
- Nominal voltage (III/3)
- 500 V
- Rated current
- 10 A
- Rated impulse voltage (III/2)
- 6 kV
- Rated impulse voltage (III/3)
- 6 kV
- Rated surge voltage (II/2)
- 6 kV
- Rated voltage (III/2)
- 630 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group C)
- 10 A
- Rated voltage UL (Use Group C)
- 600 V
Specifications
- Product Group Code
- 0013
