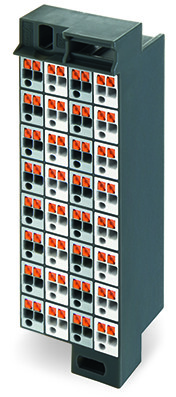

WAGO 726-812

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143652582
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-button
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Connection type 1
  • Page 1
• Fine-stranded conductor
  • 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.25 … 1 mm² / 22 … 18 AWG
• Fine-stranded conductor; with uninsulated ferrule
  • 0.25 … 1.5 mm² / 22 … 16 AWG
• Number of connection points
  • 2
• Pole number
  • 32
• Solid conductor
  • 0.2 … 1.5 mm² / 24 … 16 AWG
• Strip length
  • 10 mm / 0.39 inches
• Wiring direction
  • Front-entry wiring

Connection 2

• Connection type 2
  • Page 2
• Fine-stranded conductor 2
  • 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule 2
  • 0.25 … 1 mm² / 22 … 18 AWG
• Fine-stranded conductor; with uninsulated ferrule 2
  • 0.25 … 1.5 mm² / 22 … 16 AWG
• Number of connection points 2
  • 2
• Solid conductor 2
  • 0.2 … 1.5 mm² / 24 … 16 AWG

Material Data

• Color
  • Dark gray
• Fire load
  • 1.472 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Module color
  • Blue
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 119.965 g

Mechanical Data

• Design
  • Slimline
• Marking
  • 33 … 64

Physical Data

• Depth
  • 33.4 mm / 1.315 inches
• Height
  • 131.9 mm / 5.193 inches
• Width
  • 34.6 mm / 1.362 inches

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 800 V
• Rated current
  • 10 A
• Rated impulse voltage (III/3)
  • 8 kV

Specifications

• Product Group Code
  • 0012
