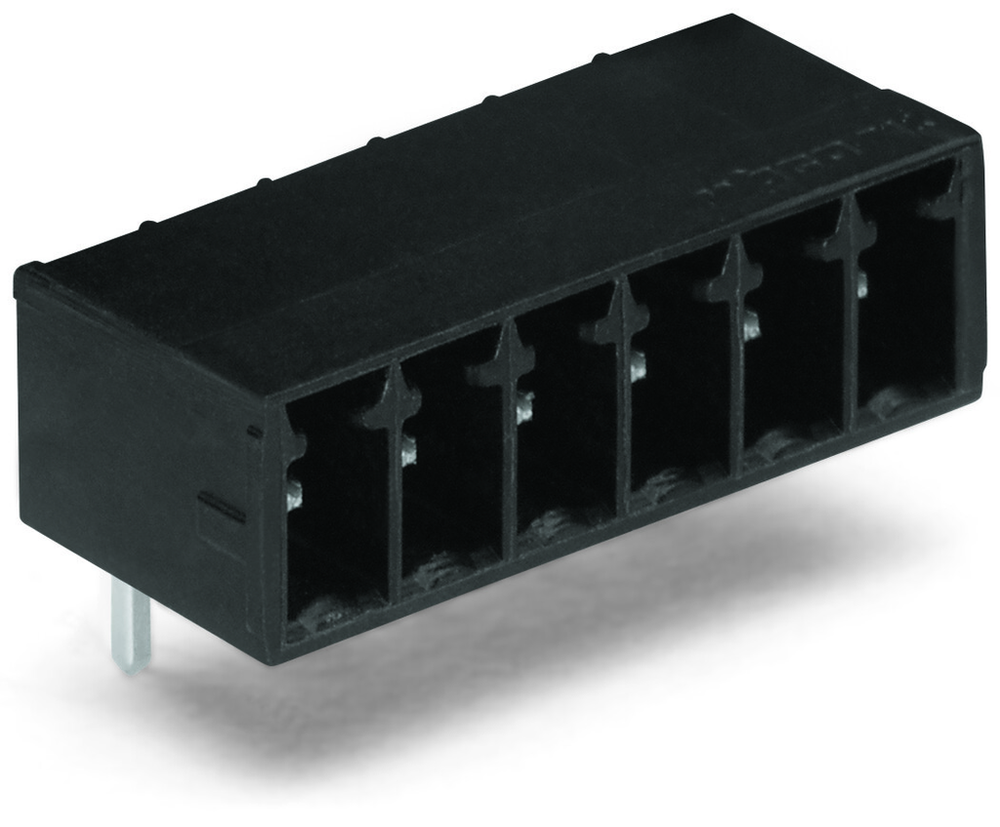

WAGO 714-176

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4045454859732
• Packaging type
  • Box

Connection 1

• Pole number
  • 16

Environmental Requirements

• Limit temperature range
  • -60 … +100 °C
• Processing temperature
  • -35 … +60 °C

Material Data

• Color
  • Black
• Contact material
  • Electrolytic copper (ECu)
• Contact plating
  • Tin
• Fire load
  • 0.070 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 3.508 g

Mechanical Data

• Anti-rotation protection
  • Yes
• Variable coding
  • Yes

Notes

• Safety information
  • The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:
  • Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Pcb Contact

• Number of solder pins per potential
  • 1
• PCB contact
  • THT
• Solder pin arrangement
  • Over the entire male connector (in-line)

Physical Data

• Depth
  • 9.7 mm / 0.382 inches
• Drilled hole diameter with tolerance
  • 1.2 (+0.1) mm
• Height
  • 10.3 mm / 0.406 inches
• Height from the surface
  • 6.9 mm / 0.272 inches
• Pin spacing
  • 3.5 mm / 0.138 inches
• Solder pin dimensions
  • 0.8 x 0.8 mm
• Solder pin length
  • 3.4 mm
• Width
  • 57.4 mm / 2.26 inches

Plug-In Connection

• Connector (connection type)
  • For PCB
• Contact type (pluggable connector)
  • Male connector/plug
• Mating direction to the PCB
  • 0 °
• Mismating protection
  • No
• Plugging without loss of pin spacing
  • No

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 320 V
• Nominal voltage (III/3)
  • 160 V
• Rated current
  • 8 A
• Rated impulse voltage (III/2)
  • 2.5 kV
• Rated impulse voltage (III/3)
  • 2.5 kV
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated voltage (III/2)
  • 160 V
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 8 A
• Rated voltage UL (Use Group B)
  • 150 V

Specifications

• Product Group Code
  • 0003
