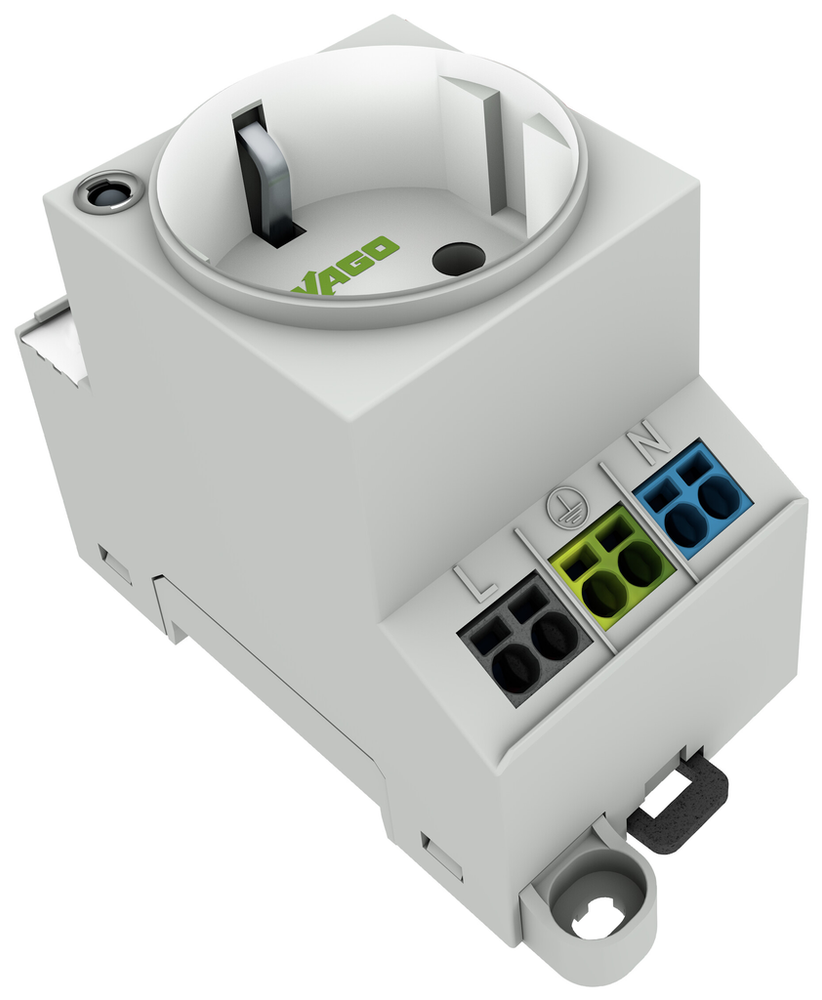

WAGO 709-581

Commercial Data

• Country of origin
  • BG
• Customs tariff number
  • 85366990990
• GTIN
  • 4055143721295
• Packaging type
  • Box

Connection Data

• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor; with insulated ferrule
  • 2.5 mm² / 14 AWG
• Solid conductor
  • 0.2 … 2.5 mm² / 24 … 14 AWG
• Stranded conductor
  • 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length
  • 9 … 10 mm / 0.35 … 0.39 inches

Electrical Data

• Power loss Pl (max.)
  • 1.8 W
• Power loss Pl (note)
  • LED status indication and contact resistance
• Rated current
  • 16 A

Material Data

• Clamping spring material
  • Chrome-nickel spring steel (CrNi)
• Color
  • Light gray
• Contact material
  • Copper alloy
• Contact plating
  • Sn
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Weight
  • 81.600 g

Notes

• Safety information
  • Installation must be performed by a qualified electrician.
• Safety information 2
  • During the insulation resistance test, the active conductors must be connected.The integrated status indicator in the control cabinet outlet must be protected against transient overvoltages.Overvoltage protection in low-voltage systems must be observed.

Physical Data

• Depth
  • 84.7 mm / 3.335 inches
• Height
  • 65 mm / 2.559 inches
• Height from the surface
  • 65 mm / 2.559 inches
• Height from upper-edge of DIN-rail
  • 59.8 mm / 2.354 inches
• Width
  • 45 mm / 1.772 inches

Specifications

• Product Group Code
  • 0002

Technical Data

• Main product function
  • Mounting accessories
• Mounting type
  • DIN-35 rail
• Number of spacings
  • 3 -times
• Safety information
  • Installation must be performed by a qualified electrician.
