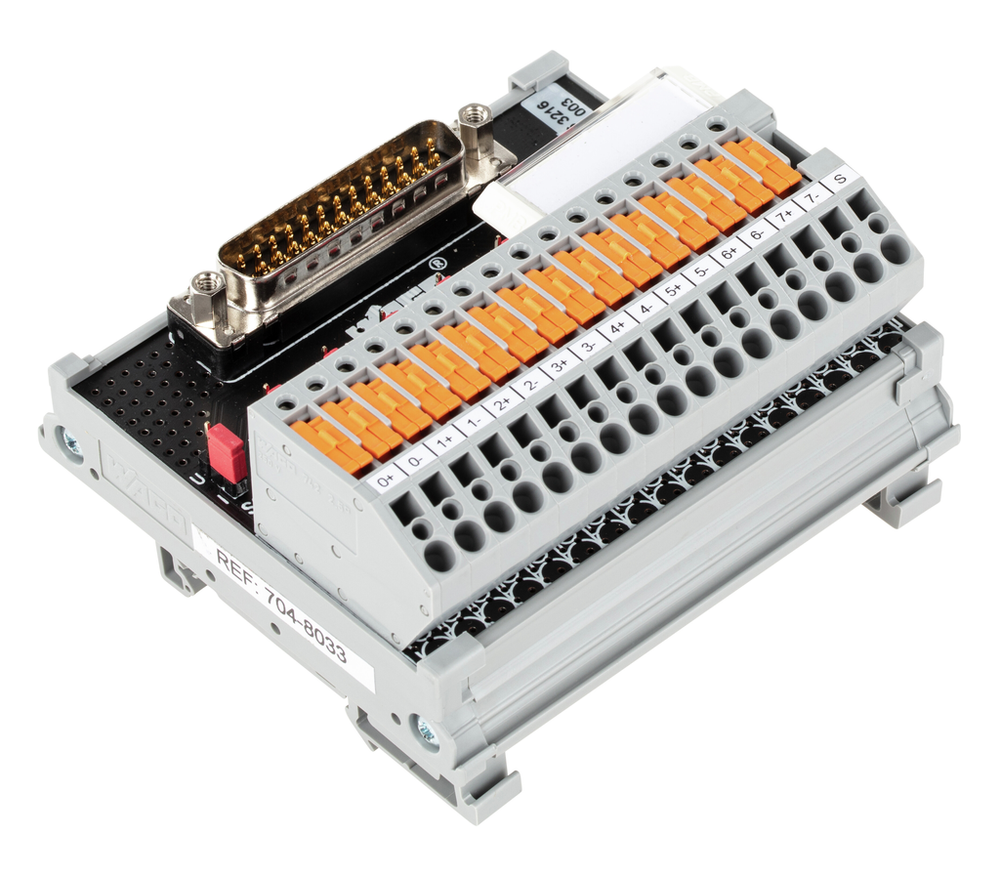

WAGO 704-8033
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface module for system wiring; with solder pin; Male connector; 25-pole; 8-channel analog input or output; with disconnect terminal block; in mounting carrier
WAGO 704-8033 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4055143982726
- Packaging type
- Box
Connection 1
- Connection type 1
- System
- Connector
- D-sub male connector
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 25
Connection 2
- Connection type 2
- Field
- Design 2
- PCB terminal blocks
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 17
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
Connection 3
- WAGO connector 3
- WAGO 236 Series
Electrical Data
- Circuit type
- 2-wire connection
- Inputs/outputs
- 8-channel analog input or output
- Internal fuse
- No
- Limiting continuous current
- 1 A
- Operating voltage
- ≤48 VDC
- Specialty functions
- With disconnect/test terminal blocks
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Material Data
- Fire load
- 2.626 MJ
- Weight
- 140.855 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 46 mm / 1.811 inches
- Height
- 85 mm / 3.346 inches
- Width
- 90 mm / 3.543 inches
Safety And Protection
- Pollution degree
- 2
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Schneider
- Schneider TSX
- TSX AEY 420 || TSX AEY 800 || TSX AEY 810 || TSX AEY 1600 || TSX ASY 800
Siemens
- Siemens S7-1500
- 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0
- Siemens S7-300
- 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0
Specifications
- Product Group Code
- 0030
