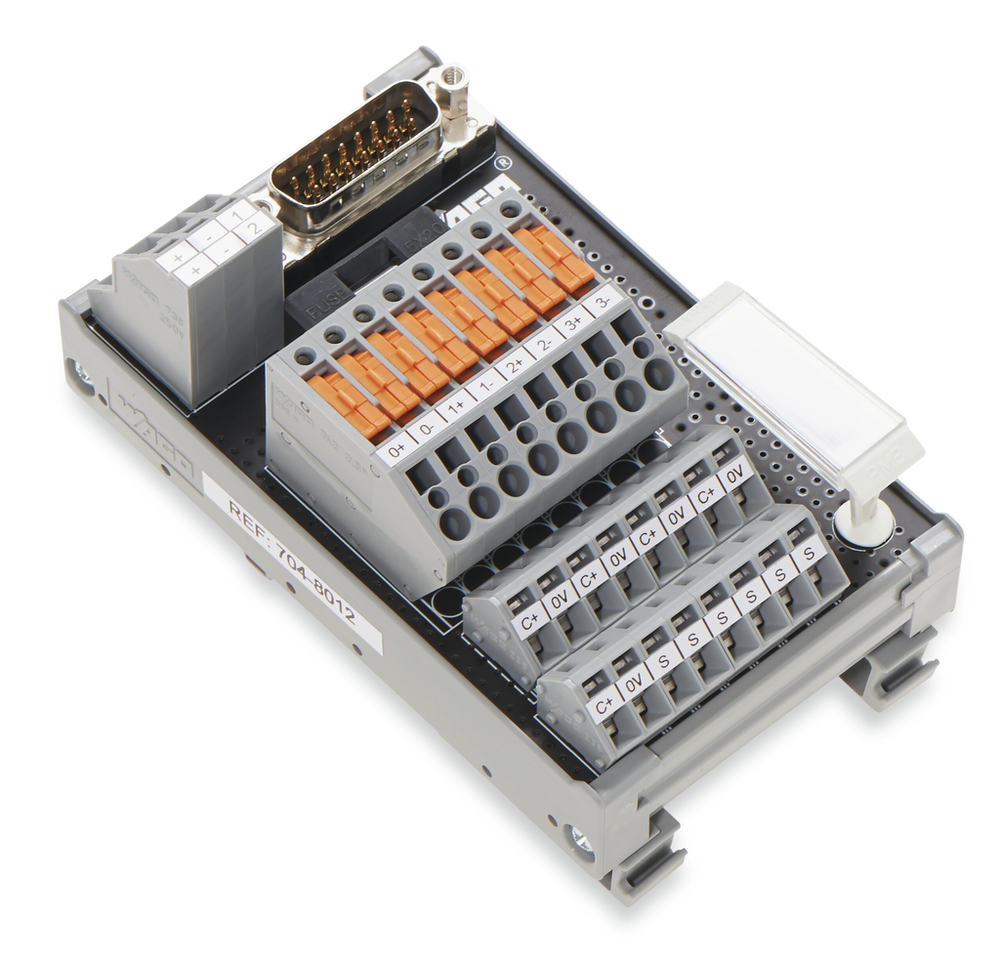

WAGO 704-8012
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface module for system wiring; with solder pin; Male connector; 15-pole; 4-channel analog input or output; 4-wire; PCB terminal blocks; in mounting carrier
WAGO 704-8012 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- FR
- Customs tariff number
- 85366990990
- GTIN
- 4050821115441
- Packaging type
- Box
Connection 1
- Connection type 1
- System
- Connector
- D-sub male connector
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 15
Connection 2
- Connection type 2
- Field
- Design 2
- PCB terminal blocks
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 8
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector 2
- WAGO 742 Series
Connection 3
- Connection type 3
- Field
- Design 3
- PCB terminal blocks (double-row)
- Fine-stranded conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 3
- 16
- Solid conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 3
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 3
- WAGO 236 Series
Connection 4
- Connection technology 4
- CAGE CLAMP®
- Connection type 4
- Power supply
- Design 4
- PCB terminal blocks (double-deck)
- Fine-stranded conductor 4
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 4
- 6
- Solid conductor 4
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 4
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 4
- WAGO 736 Series
Electrical Data
- Circuit type
- 2-wire connection || 4-wire connection
- Inputs/outputs
- 4-channel analog input or output
- Internal fuse
- Supply: 2 A
- Limiting continuous current
- 1 A
- Operating voltage
- ≤48 VDC
- Specialty functions
- With disconnect/test terminal blocks
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Ge Fanuc
- GE Fanuc 9030
- IC693 ALG220 || IC693 ALG221
Material Data
- Fire load
- 1.704 MJ
- Weight
- 131.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 50 mm / 1.969 inches
- Height
- 105 mm / 4.134 inches
- Width
- 66 mm / 2.598 inches
Rockwell
- Rockwell Compact Logix
- 1769 - IF4 || 1769 - IF4I || 1769 - IF8 || 1769 - OF2 || 1769 - OF4 || 1769 - OF4CI || 1769 - OF4VI
- Rockwell Control Logix
- 1756 - OF4
Safety And Protection
- Pollution degree
- 2
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Schneider
- Schneider Modicon M340
- BMX AMI 0410 || BMX AMO 0210 || BMX AMO 0410
- Schneider Modicon Quantum
- 140 ACO 020 00
- Schneider Modicon TM3
- TM3 AI2H(G) || TM3 AI4(G) || TM3 AQ2(G) || TM3 AQ4(G) || TM3 TI4(G) || TM3 TM3(G)
- Schneider TSX
- TSX AEY 414 || TSX ASY 410
Siemens
- Siemens S7-1500
- 6ES7 531-7QD00-0AB0 || 6ES7 532-5HD00-0AB0 || 6ES7 532-5ND00-0AB0
- Siemens S7-300
- 6ES7 331-7KB02-0AB0 || 6ES7 331-7KB81-0AB0 || 6ES7 331-7RD00-0AB0 || 6ES7 332-5HB01-0AB0 || 6ES7 332-5HB81-0AB0 || 6ES7 332-5HD01-0AB0 || 6ES7 332-7ND02-0AB0
Specifications
- Product Group Code
- 0030
Wago
- WAGO I/O System 753
- 753-453 (x1) || 753-455 (x1) || 753-457 (x1) || 753-459 (x1) || 753-553 (x1) || 753-555 (x1) || 753-557 (x1) || 753-559 (x1)
