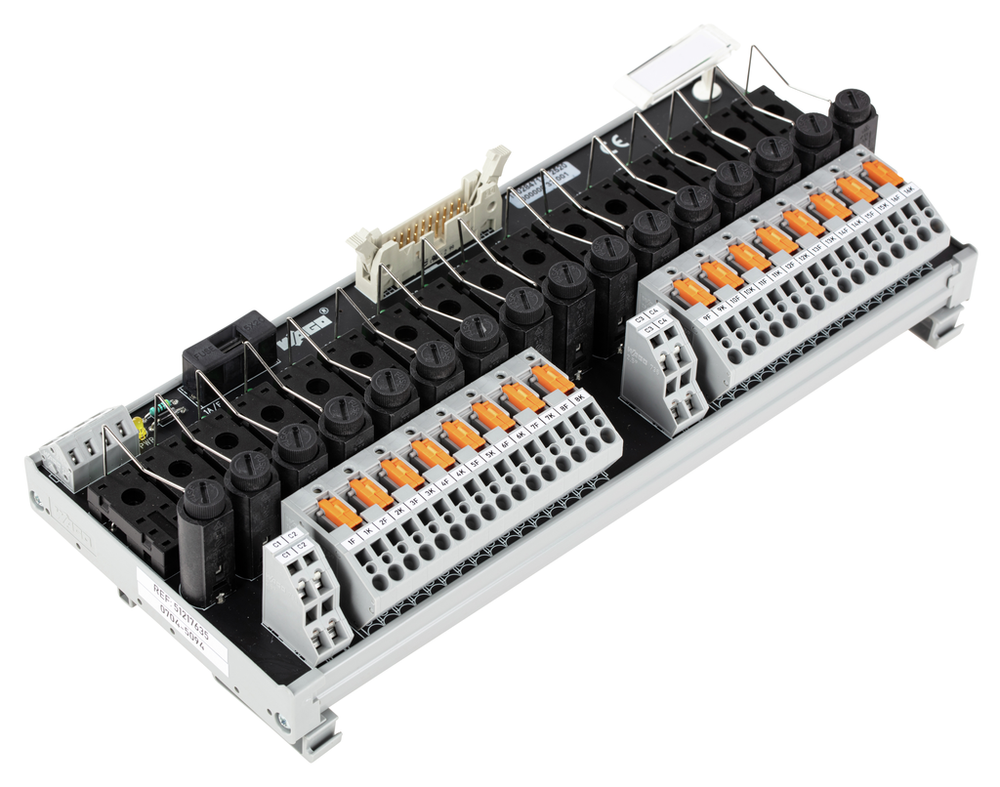

WAGO 704-5094
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 1 make contact; with disconnect terminal block and fuse; without relay; in mounting carrier
WAGO 704-5094 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4055144025538
- Packaging type
- Box
Connection 1
- Connection type 1
- System
- Connector
- DIN 41651 connector; male connector
- Mating direction
- Vertical
- Pole number 1
- 20
Connection 2
- Connection type 2
- Field
- Design 2
- PCB terminal blocks
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 32
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector 2
- WAGO 742 Series
Connection 3
- Connection type 3
- Field
- Design 3
- PCB terminal blocks (double-deck)
- Fine-stranded conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 3
- 8
- Solid conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 3
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 3
- WAGO 736 Series
Connection 4
- Connection technology 4
- CAGE CLAMP®
- Connection type 4
- Power supply
- Design 4
- PCB terminal blocks
- Fine-stranded conductor 4
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 4
- 4
- Solid conductor 4
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 4
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 4
- WAGO 236 Series
Electrical Data
- Inputs/outputs
- 16-channel relay output
- Internal fuse
- Supply: 1 A; Relay output: 2 A
- Limiting continuous current
- 2 A
- Nominal operating voltage
- DC 24 V
- Number of make/switch-on contacts
- 1
- Operating voltage range
- ±10 %
- Specialty functions
- With disconnect/test terminal blocks || With output fuse || Without basic relay
- Status indicator
- Green LED (channel) || Yellow LED (power supply)
- Switching power (resistive) max.
- AC 500 VA; DC 50 W
- Switching voltage (max.)
- AC 250 V; DC 48 V
- WAGO Basic Relay
- 788-154
Environmental Requirements
- Ambient temperature (operation)
- -25 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Ge Fanuc
- GE Fanuc 9030
- IC693 MDL740 || IC693 MDL742 || IC693 MDL753
- GE Fanuc RX3i
- IC694 MDL753
Material Data
- Fire load
- 3.170 MJ
- Weight
- 421.685 g
Mechanical Data
- Mounting type
- DIN-35 rail
Omron
- Omron CJ1W
- CJ1W-MD232 || CJ1W-OD212 || CJ1W-OD232 || CJ1W-OD262
Physical Data
- Depth from upper-edge of DIN-rail
- 55 mm / 2.165 inches
- Height
- 105 mm / 4.134 inches
- Width
- 240 mm / 9.449 inches
Rockwell
- Rockwell Compact Logix
- 1769 - OB16 || 1769 - OB16P || 1769 - OB32 || 1769 - OB32T
- Rockwell Control Logix
- 1756 - OB16E || 1756 - OB32
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 4 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 1 kVrms
- Pollution degree
- 2
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Schneider
- Schneider Modicon M340
- BMX DDO 1602 || BMX DDO 3202K || BMX DDO 6402K || BMX DDM 3202K
- Schneider Modicon Quantum
- 140 DDO 353 00 || 140 DDO 353 01 || 140 DDO 364 00 || 140 DVO 853 00
- Schneider Modicon TM3
- TM3 DQ16T(G) || TM3 DQ16TK || TM3 DQ32TK
- Schneider TSX
- TSX DSY 16T2 || TSX DSY 32T2K || TSX DSY 64T2K || TSX DMY 28FK || TSX DMY 28RFK
Siemens
- Siemens ET200SP
- 6ES7 132-6BH00-0AA0 || 6ES7 132-6BH00-2AA0 || 6ES7 132-6BH01-0BA0 || 6ES7 132-6BH01-2BA0
- Siemens S7-1500
- 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || 6ES7 522-1BH00-0AB0 || 6ES7 522-1BH01-0AB0 || 6ES7 522-1BH10-0AA0 || 6ES7 522-1BL00-0AB0 || 6ES7 522-1BL01-0AB0 || 6ES7 522-1BL10-0AA0 || 6ES7 522-1BP00-0AA0 || 6ES7 523-1BL00-0AA0
- Siemens S7-300
- 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0 || 6ES7 322-1BH10-0AA0 || 6ES7 322-1BH80-0AA0 || 6ES7 322-1BL00-0AA0 || 6ES7 322-1BP00-0AA0 || 6ES7 322-1EH01-0AA0 || 6ES7 322-8BH01/8BH10-0AB0 || 6ES7 323-1BL00-0AA0
- Siemens S7-400
- 6ES7 422-1BL00-0AA0
Specifications
- Product Group Code
- 0030
Wago
- WAGO I/O System 750
- 750-1500
- WAGO I/O System 753
- 753-530 (x2)
