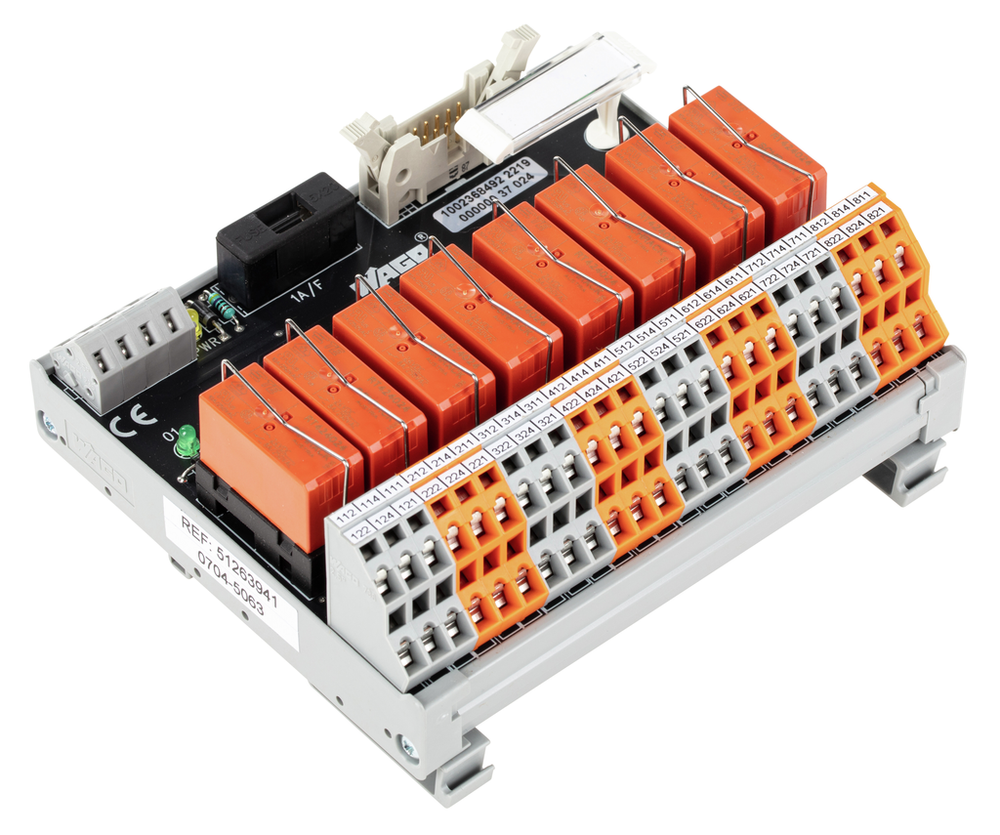

WAGO 704-5063
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8-channel relay output; 2 changeover contacts; Double-deck PCB terminal blocks; in mounting carrier
WAGO 704-5063 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389091890
- GTIN
- 4066966078978
- Packaging type
- Box
Connection 1
- Connection type 1
- System
- Connector
- DIN 41651 connector; male connector
- Mating direction
- Vertical
- Pole number 1
- 10
Connection 2
- Connection type 2
- Field
- Design 2
- PCB terminal blocks (double-deck)
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 48
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 736 Series
Connection 3
- Connection type 3
- Power supply
- Design 3
- PCB terminal blocks
- Fine-stranded conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 3
- 4
- Solid conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 3
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 3
- WAGO 236 Series
Electrical Data
- Inputs/outputs
- 8-channel relay output
- Internal fuse
- Supply: 1 A; Relay output: -
- Limiting continuous current
- 5 A
- Making capacity
- 2 ms 8 A
- Mechanical life
- 30 x 10⁶ switching operations
- Nominal operating voltage
- DC 24 V
- Number of changeover/switchover contacts
- 2
- Operating voltage range
- ±10 %
- Status indicator
- Green LED (channel) || Yellow LED (power supply)
- Switching power (resistive) max.
- AC 1000 VA; DC 50 W
- Switching voltage (max.)
- AC 250 V; DC 48 V
- WAGO Basic Relay
- 788-156
Environmental Requirements
- Ambient temperature (operation)
- -20 … +40 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Ge Fanuc
- GE Fanuc 9030
- IC693 MDL730 || IC693 MDL732
Material Data
- Contact material (relay)
- AgNi 90/10
- Fire load
- 7.123 MJ
- Weight
- 177.110 g
Mechanical Data
- Mounting type
- DIN-35 rail
Notes
- Note
- Independent of the relay used, the maximum continuous current is 5A per channel.
Omron
- Omron CJ1W
- CJ1W-OD204
Physical Data
- Depth from upper-edge of DIN-rail
- 50 mm / 1.969 inches
- Height
- 105 mm / 4.134 inches
- Width
- 124 mm / 4.882 inches
Rockwell
- Rockwell Compact Logix
- 1769 - OB8
Safety And Protection
- Dielectric strength (control/load circuit) (AC, 1 min)
- 4 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 1 kVrms
- Pollution degree
- 2
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Schneider
- Schneider Modicon M340
- BMX DDM 16022
- Schneider Modicon Quantum
- 140 DDM 390 00
- Schneider Modicon TM3
- TM3 DQ8T(G)
- Schneider TSX
- TSX DSY 08T2
Siemens
- Siemens ET200SP
- 6ES7 132-6BF00-0CA0 || 6ES7 132-6BF01-0AA0 || 6ES7 132-6BF01-0BA0
- Siemens S7-1500
- 6ES7 522-1BF00-0AB0
- Siemens S7-300
- 6ES7 322-1BF01-0AA0 || 6ES7 322-8BF00-0AB0 || 6ES7 323-1BH01-0AA0 || 6ES7 327-1BH00-0AB0 || 6ES7 326-2BF01-0AB0 || 6ES7 326-2BF10-0AB0
Specifications
- Product Group Code
- 0030
Wago
- WAGO I/O System 750
- 750-1502
- WAGO I/O System 753
- 753-530 (x1)
