WAGO 704-2224
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

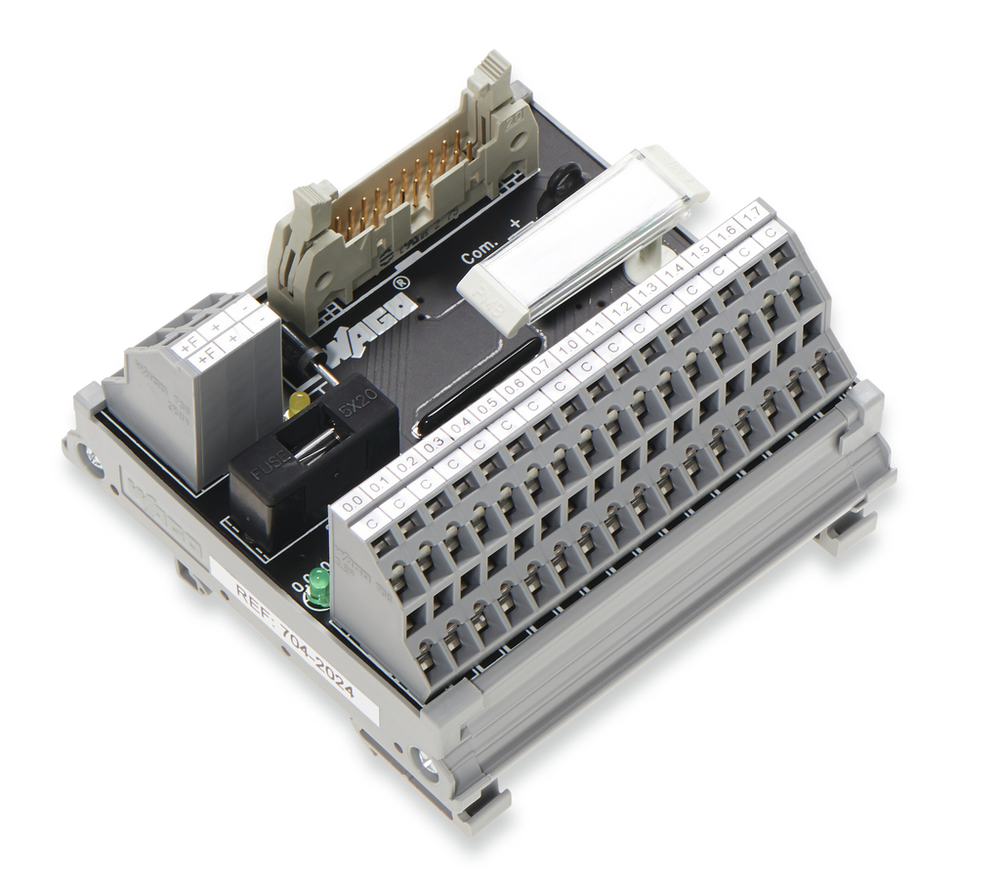

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel digital input or output; 2-wire connection; Double-deck PCB terminal blocks; in mounting carrier
WAGO 704-2224 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- FR
- Customs tariff number
- 85369010000
- GTIN
- 4050821887713
- Packaging type
- Box
Connection 1
- Connection type 1
- System
- Connector
- DIN 41651 connector; male connector
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 20
Connection 2
- Connection type 2
- Field
- Design 2
- PCB terminal blocks (double-deck)
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 32
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 736 Series
Connection 3
- Connection type 3
- Power supply
- Design 3
- PCB terminal blocks (double-row)
- Fine-stranded conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 3
- 6
- Solid conductor 3
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 3
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 3
- WAGO 736 Series
Electrical Data
- Circuit type
- 2-wire connection
- Current consumption (status indication)
- 5 mA
- Inputs/outputs
- 16-channel digital input or output
- Internal fuse
- 2 A
- Limiting continuous current
- 1 A
- Nominal operating voltage
- DC 24 V
- Operating voltage range
- ±10 %
- Status indicator
- Green LED (channel) || Yellow LED (power supply)
- Total current
- 2 A
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Ge Fanuc
- GE Fanuc 9030
- IC693 MDL241 || IC693 MDL640 || IC693 MDL643 || IC693 MDL645 || IC693 MDL646 || IC693 MDL655 || IC693 MDL740 || IC693 MDL742 || IC693 MDL753
- GE Fanuc RX3i
- IC694 MDL655 || IC694 MDL753
Material Data
- Fire load
- 1.976 MJ
- Weight
- 110.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Omron
- Omron CJ1W
- CJ1W-ID211 || CJ1W-ID231 || CJ1W-ID232 || CJ1W-ID261 || CJ1W-ID262 || CJ1W-IDP01 || CJ1W-INT01 || CJ1W-MD232 || CJ1W-OD212 || CJ1W-OD232 || CJ1W-OD262
Physical Data
- Depth from upper-edge of DIN-rail
- 50 mm / 1.969 inches
- Height
- 85 mm / 3.346 inches
- Width
- 85 mm / 3.346 inches
Rockwell
- Rockwell Compact Logix
- 1769 - IQ16 || 1769 - IQ16F || 1769 - IQ32 || 1769 - IQ32T || 1769 - OB16 || 1769 - OB16P || 1769 - OB32 || 1769 - OB32T
- Rockwell Control Logix
- 1756 - IB16I || 1756 - IB16ISOE || 1756 - IB32 || 1756 - OB16E || 1756 - OB16I || 1756 - OB16IS || 1756 - OB32
Safety And Protection
- Pollution degree
- 2
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Schneider
- Schneider Modicon M340
- BMX DDI 1602 || BMX DDI 3202K || BMX DDI 6402K || BMX DDO 1602 || BMX DDO 3202K || BMX DDO 6402K || BMX DDM 3202K
- Schneider Modicon Quantum
- 140 DDI 353 00 || 140 DDI 364 00 || 140 DDO 353 00 || 140 DDO 353 01 || 140 DDO 364 00 || 140 DDM 390 00 || 140 DSI 353 00 || 140 DVO 853 00
- Schneider Modicon TM3
- TM3 DI16(G) || TM3 DI16K || TM3 DI32K || TM3 DQ16T(G) || TM3 DQ16TK || TM3 DQ32TK
- Schneider TSX
- TSX DEY 16D2 || TSX DEY 16FK || TSX DEY 32D2K || TSX DEY 64D2K || TSX DMY 28FK || TSX DMY 28RFK || TSX DSY 16T2 || TSX DSY 32T2K || TSX DSY 64T2K
Siemens
- Siemens ET200SP
- 6ES7 131-6BH01-0BA0 || 6ES7 131-6BH01-2BA0 || 6ES7 132-6BH00-0AA0 || 6ES7 132-6BH00-2AA0 || 6ES7 132-6BH01-0BA0 || 6ES7 132-6BH01-2BA0
- Siemens S7-1500
- 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || 6ES7 521-1BH00-0AA0 || 6ES7 521-1BH10-0AA0 || 6ES7 521-1BL00-0AB0 || 6ES7 521-1BL10-0AA0 || 6ES7 521-1BP00-0AA0 || 6ES7 522-1BH00-0AB0 || 6ES7 522-1BH01-0AB0 || 6ES7 522-1BH10-0AA0 || 6ES7 522-1BL00-0AB0 || 6ES7 522-1BL01-0AB0 || 6ES7 522-1BL10-0AA0 || 6ES7 522-1BP00-0AA0 || 6ES7 523-1BL00-0AA0
- Siemens S7-300
- 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 321-1BH02-0AA0 || 6ES7 321-1BH10-0AA0 || 6ES7 321-1BH80-0AA0 || 6ES7 321-1BL00-0AA0 || 6ES7 321-1BL80-0AA0 || 6ES7 321-1BP00-0AA0 || 6ES7 321-7BH01-0AB0 || 6ES7 321-7BH80-0AA0 || 6ES7 322-1BH01-0AA0 || 6ES7 322-1BH10-0AA0 || 6ES7 322-1BH80-0AA0 || 6ES7 322-1BL00-0AA0 || 6ES7 322-1BP00-0AA0 || 6ES7 322-1EH01-0AA0 || 6ES7 322-8BH01/8BH10-0AB0 || 6ES7 323-1BL00-0AA0 || 6ES7 326-1BK01-0AB0 || 6ES7 326-1RF00-0AB0
- Siemens S7-400
- 6ES7 421-1BL01-0AA0 || 6ES7 421-7BH01-0AB0 || 6ES7 422-1BL00-0AA0 || 6ES7 422-7BL00-0AB0
Specifications
- Product Group Code
- 0030
Wago
- WAGO I/O System 750
- 750-1400 || 750-1500 || 750-1502
- WAGO I/O System 753
- 753-430 (x2) || 753-431 (x2) || 753-530 (x2)
